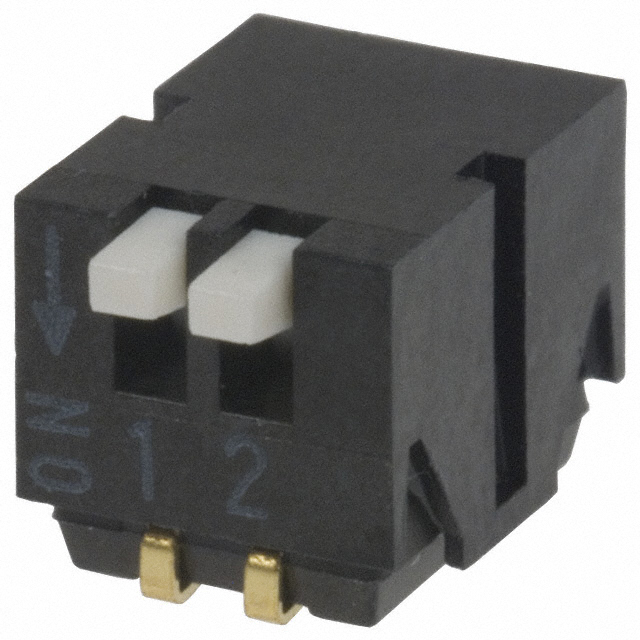

CHP-020 Series

Catalog

SWITCH PIANO DIP SPST 0.1A 6V

Part	Length	Length	Body Material	Electrical Life	Actuator Type	Contact Finish	Termination Style	Current Rating (Amps)	Contact Material	Height Above Board [z]	Height Above Board [z]	Number of Positions	Pitch	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Mounting Type	Voltage Rating	Circuit
Nidec Components Corporation CHP-020TA	0.181 in	4.6 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	Piano	Gold	J Lead	100 mA	Copper Alloy	4.6 mm	0.181 in	2	0.05 "	1.27 mm	Half	85 °C	-40 C	Raised	Right Angle Surface Mount	6 V	SPST
Nidec Components Corporation CHP-020A	0.181 in	4.6 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	Piano	Gold	J Lead	100 mA	Copper Alloy	4.6 mm	0.181 in	2	0.05 "	1.27 mm	Half	85 °C	-40 C	Raised	Right Angle Surface Mount	6 V	SPST
Nidec Components Corporation CHP-020B	0.181 in	4.6 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	Piano	Gold	Gull Wing	100 mA	Copper Alloy	4.6 mm	0.181 in	2	0.05 "	1.27 mm	Half	85 °C	-40 C	Raised	Right Angle Surface Mount	6 V	SPST
Nidec Components Corporation CHP-020TB	0.181 in	4.6 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	Piano	Gold	Gull Wing	100 mA	Copper Alloy	4.6 mm	0.181 in	2	0.05 "	1.27 mm	Half	85 °C	-40 C	Raised	Right Angle Surface Mount	6 V	SPST
