TRSF3232E Series

3- to 5.5-V dual channel 1Mbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection

Catalog

3- to 5.5-V dual channel 1Mbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection

Part	Duplex	Voltage - Supply [Max]	Voltage - Supply [Min]	Receiver Hysteresis	Package / Case [x]	Package / Case	Package / Case [y]	Data Rate	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Supplier Device Package	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]
Texas Instruments TRSF3232EIDW	Full	5.5 V	3 V	300 mV	0.295 in	16-SOIC	7.5 mm	1 Mbps	Transceiver	Surface Mount	85 °C	-40 °C	RS232	16-SOIC	2	2
Texas Instruments TRSF3232ECDR	Full	5.5 V	3 V	300 mV	0.154 in	16-SOIC	3.9 mm	1 Mbps	Transceiver	Surface Mount	70 °C	0 °C	RS232	16-SOIC	2	2
Texas Instruments TRSF3232ECDWR	Full	5.5 V	3 V	300 mV	0.295 in	16-SOIC	7.5 mm	1 Mbps	Transceiver	Surface Mount	70 °C	0 °C	RS232	16-SOIC	2	2
Texas Instruments TRSF3232ECD	Full	5.5 V	3 V	300 mV	0.154 in	16-SOIC	3.9 mm	1 Mbps	Transceiver	Surface Mount	70 °C	0 °C	RS232	16-SOIC	2	2

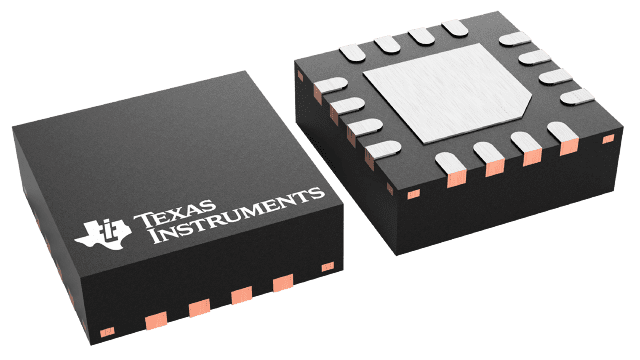

Texas Instruments TRSF3232EIRGTR	Full	3.6 V 5.5 V	3 V 4.5 V	300 mV		16-VFQFN Exposed Pad		1 Mbps	Transceiver	Surface Mount	85 °C	-40 °C	RS232	16-VQFN (3x3)	2	2
Texas Instruments TRSF3232EIPW	Full	5.5 V	3 V	300 mV	0.173 in	16-TSSOP	4.4 mm	1 Mbps	Transceiver	Surface Mount	85 °C	-40 °C	RS232	16-TSSOP	2	2
Texas Instruments TRSF3232EID	Full	5.5 V	3 V	300 mV	0.154 in	16-SOIC	3.9 mm	1 Mbps	Transceiver	Surface Mount	85 °C	-40 °C	RS232	16-SOIC	2	2
Texas Instruments TRSF3232EIDWR	Full	5.5 V	3 V	300 mV	0.295 in	16-SOIC	7.5 mm	1 Mbps	Transceiver	Surface Mount	85 °C	-40 °C	RS232	16-SOIC	2	2
Texas Instruments TRSF3232EIDR	Full	5.5 V	3 V	300 mV	0.154 in	16-SOIC	3.9 mm	1 Mbps	Transceiver	Surface Mount	85 °C	-40 °C	RS232	16-SOIC	2	2
Texas Instruments TRSF3232ECPWR	Full	5.5 V	3 V	300 mV	0.173 in	16-TSSOP	4.4 mm	1 Mbps	Transceiver	Surface Mount	70 °C	0 °C	RS232	16-TSSOP	2	2

Catalog

3- to 5.5-V dual channel 1Mbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection

Key Features

• Operates with 3V to 5.5V VCC supplyOperates up to 1Mbit/sLow supply current: 300µA typicalExternal capacitors: 4 × 0.1µFAccept 5V logic input with 3.3V supplyLatch-up performance exceeds 100mA Per JESD 78, class IIESD protection for RS-232 pins±15kV Human-Body Model (HBM)±15kV IEC 61000-4-2 air-gap discharge±8kV IEC 61000-4-2 contact dischargeAvailable in near chip scale QFN (3mmx3mm) package (85% smaller than SOIC-16)Operates with 3V to 5.5V VCC supplyOperates up to 1Mbit/sLow supply current: 300µA typicalExternal capacitors: 4 × 0.1µFAccept 5V logic input with 3.3V supplyLatch-up performance exceeds 100mA Per JESD 78, class IIESD protection for RS-232 pins±15kV Human-Body Model (HBM)±15kV IEC 61000-4-2 air-gap discharge±8kV IEC 61000-4-2 contact dischargeAvailable in near chip scale QFN (3mmx3mm) package (85% smaller than SOIC-16)

Description

The TRSF3232E consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15kV ESD protection pin to pin (serial-port connection pins, including GND). This device provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The TRSF3232E operates at data signaling rates up to 1Mbit/s and a driver output slew rate of 14V/µs to 150V/µs. The TRSF3232E consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15kV ESD protection pin to pin (serial-port connection pins, including GND). This device provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The TRSF3232E operates at data signaling rates up to 1Mbit/s and a driver output slew rate of 14V/µs to 150V/µs.
