EMI4193 Series

EMI Filter, Common Mode, Low Resistance, with ESD Protection

Catalog

EMI Filter, Common Mode, Low Resistance, with ESD Protection

Part	DC Resistance (DCR) (Max) [Max]	Mounting Type	Height (Max)	Height (Max) [Max]	Package / Case	Impedance @ Frequency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Current Rating (Max) [Max]	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]

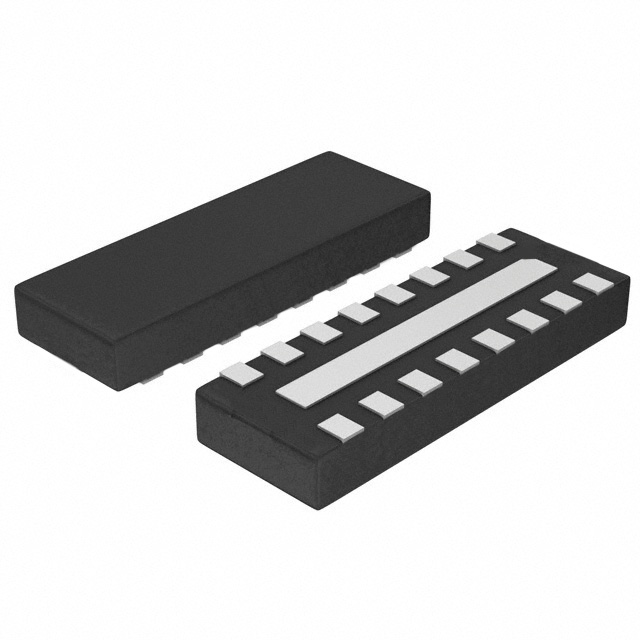

ON Semiconductor EMI4193MTTAG	5 Ohm	Surface Mount	0.8 mm	0.032 "	16-WFDFN	32 Ohms	0.157 "	4 mm	2 mm	0.079 in	TVS Diode ESD Protection	100 mA	6	85 °C	-40 °C

EMI Filter, Common Mode, Low Resistance, with ESD Protection
