742C083 Series
Manufacturer: CTS Resistor Products
Beta
⌘K

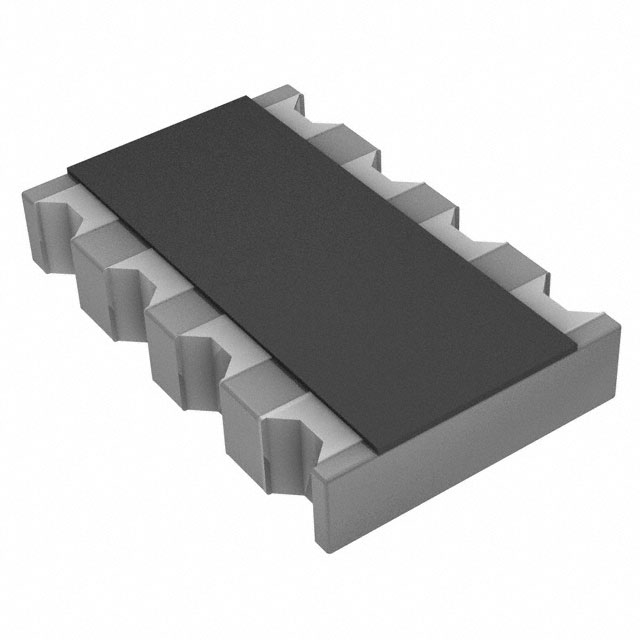

RES ARRAY 4 RES 120 OHM 1206
| Part | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Power Per Element | Package / Case | Qualification | Number of Pins | Tolerance | Grade | Number of Resistors | Resistance (Ohms) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Mounting Type | Circuit Type | Resistance (Ohms) | Resistance (Ohms) [custom] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 120 Ohms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 1 % | Automotive | 4 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | 100k | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 33 kOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | 82 Ohms | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 390 kOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 8.2 kOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | 560 Ohms | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 180 kOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | Automotive | 4 | 0 Ohms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated | Jumper | |||
CTS Resistor Products | DDR SDRAM DRAM MDDR | 0.7 mm | 0.028 " | 63 mW | 1206 (3216 Metric) Concave Long Side Terminals | AEC-Q200 | 8 | 5 % | Automotive | 4 | 12 kOhms | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 200 ppm/°C | Surface Mount | Isolated |
