D15S24 Series

Catalog

CONN D-SUB RCPT 15POS VERT SLDR

Part	Color	Contact Finish	Number of Rows	Contact Material	Shell Size, Connector Layout	Connector Style	Material Flammability Rating	Dielectric Material	Contact Finish Thickness	Number of Positions	Current Rating (Amps)	Contact Type	Shell Material, Finish	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Mounting Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Features

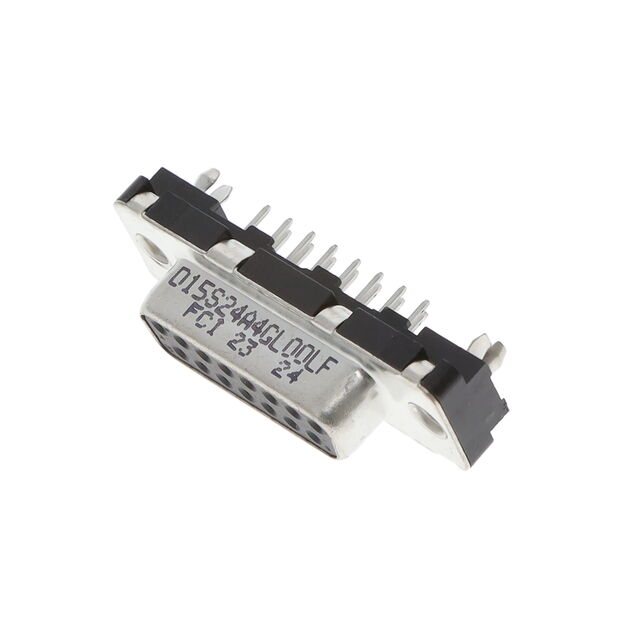

Amphenol ICC (FCI) D15S24A4GL00LF	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)	Flash	15	5 A	Signal	Steel Tin-Nickel Plated	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Housing/Shell (M3)
Amphenol ICC (FCI) D15S24B6GI00LF	Black	Gold or Gold GXT™	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)		15	5 A	Signal	Steel Tin-Nickel Plated	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Female Screwlock (M3) Mating Side	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15S24B6RX09LF	Black	Gold	2	Copper Alloy	2	D-Sub	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled		15	5 A	Signal	Nickel Plated Steel	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder Paste	Through Hole	Housing/Shell (4-40)	0.76 Ám	30 Áin	Board Guide
Amphenol ICC (FCI) D15S24B4PA00LF	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)	Flash	15	5 A	Signal	Steel Tin-Nickel Plated	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Housing/Shell (Unthreaded)
Amphenol ICC (FCI) D15S24A4PX00LF	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)	Flash	15	5 A	Signal	Steel Tin-Nickel Plated	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Housing/Shell (4-40)
Amphenol ICC (FCI) D15S24B4GV00LF	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)	Flash	15	5 A	Signal	Steel Tin-Nickel Plated	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Female Screwlock (4-40) Mating Side
Amphenol ICC (FCI) D15S24B6PA00	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)		15	5 A	Signal		300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15S24B4GL00	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)	Flash	15	5 A	Signal		300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Housing/Shell (M3)

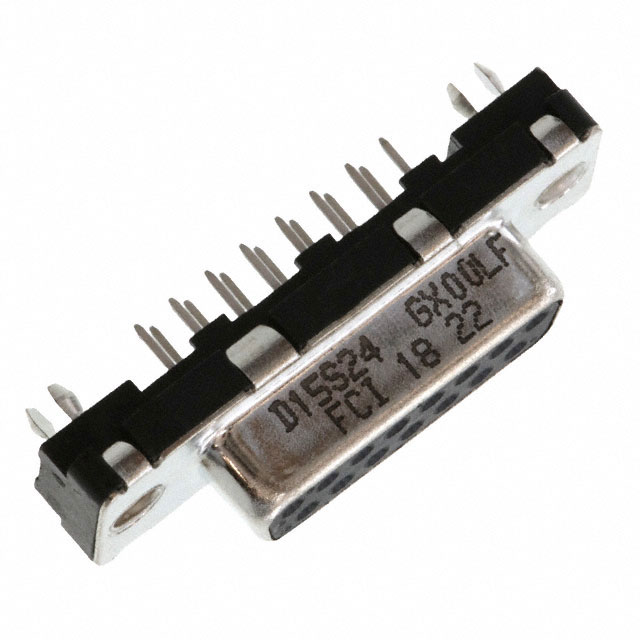

Amphenol ICC (FCI) D15S24A6GX00LF	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)		15	5 A	Signal	Steel Tin-Nickel Plated	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Housing/Shell (4-40)	0.76 Ám	30 Áin

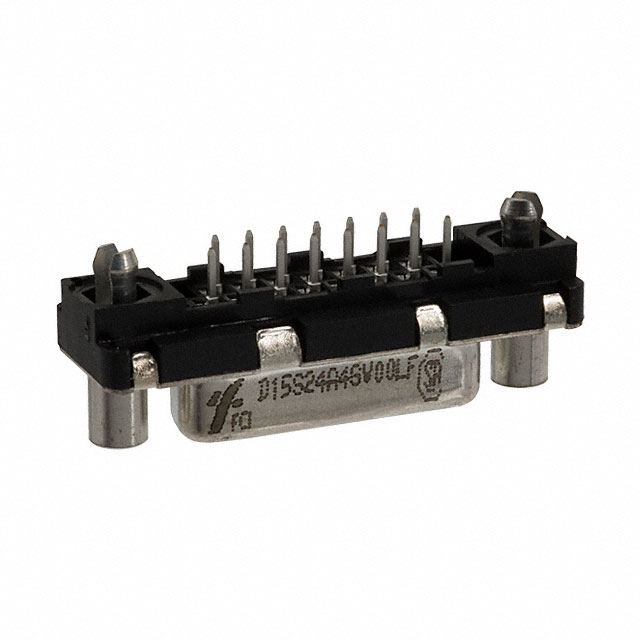

Amphenol ICC (FCI) D15S24A4GV00LF	Black	Gold	2	Phosphor Bronze	2	D-Sub	UL94 V-0	Polybutylene Terephthalate (PBT)	Flash	15	5 A	Signal	Steel Tin-Nickel Plated	300 VDC	-55 °C	125 °C	Receptacle Female Sockets	Solder	Through Hole	Female Screwlock (4-40) Mating Side
