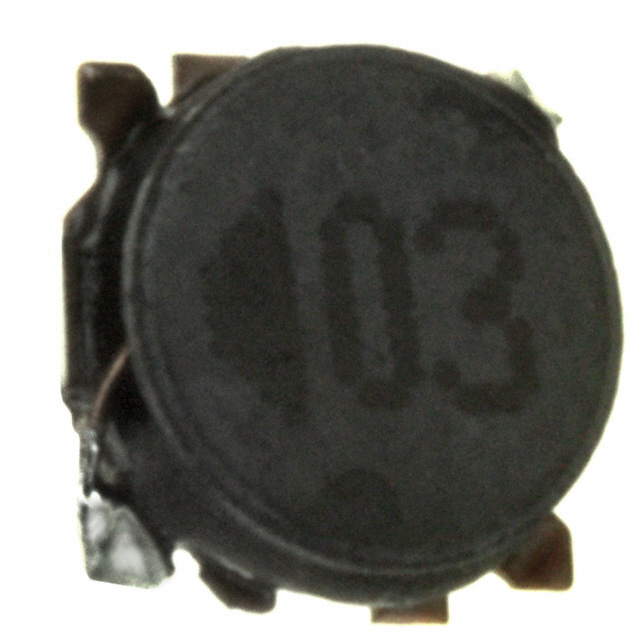

ELL-4GG Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 5.6UH 970MA 170MOHM SM
| Part | Shielding | Current Rating (Amps) | Inductance | Mounting Type | DC Resistance (DCR) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current - Saturation (Isat) | Inductance Frequency - Test | Package / Case | Type | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Shielded | 970 mA | 5.6 µH | Surface Mount | 170 mOhm | 1.4 mm | 0.055 in | 1.1 A | 100 kHz | Nonstandard | Wirewound | 30 % |

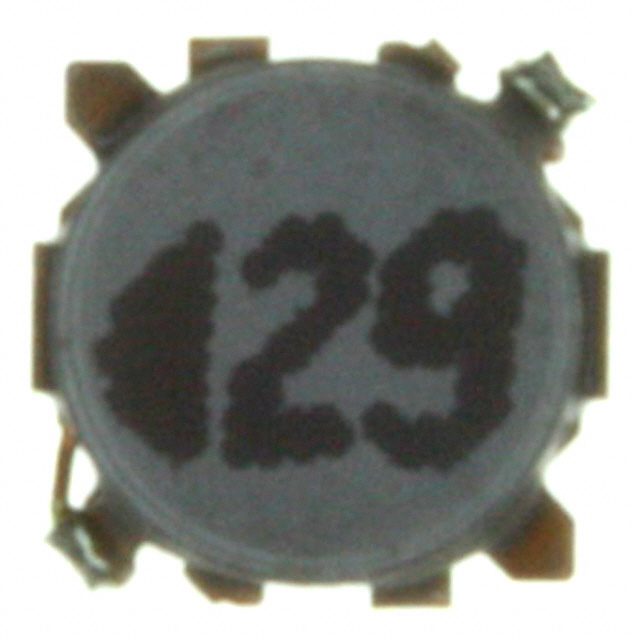

 Panasonic Industrial Automation Sales | Shielded | 0.87 A | 8.2 µH | Surface Mount | 220 mOhm | 1.4 mm | 0.055 in | 1 A | 100 kHz | Nonstandard | Wirewound | 30 % |
Panasonic Industrial Automation Sales | Shielded | 350 mA | 47 µH | Surface Mount | 1.25 Ohm | 1.4 mm | 0.055 in | 400 mA | 100 kHz | Nonstandard | Wirewound | 20 % |
