S8B-PH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

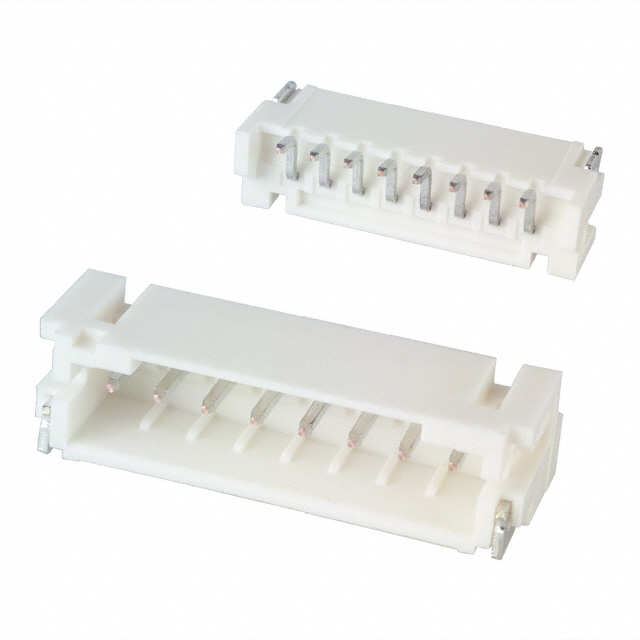

CONN HEADER SMD R/A 8POS 2MM
| Part | Connector Type | Contact Type | Contact Shape | Shrouding | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Mating | Contact Length - Mating | Insulation Material | Style | Contact Material | Fastening Type | Number of Positions | Termination | Mounting Type | Insulation Color | Voltage Rating | Current Rating (Amps) | Features | Insulation Height | Insulation Height | Contact Finish - Post | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | Male Pin | Square | Shrouded - 4 Wall | UL94 V-0 | 0.079 " | 2 mm | 1 | 85 °C | -25 °C | 0.13 in | 3.3 mm | Nylon 6T Polyamide (PA6T) | Board to Cable/Wire | Copper Alloy | Detent Lock | 8 | Solder | Right Angle Surface Mount | Natural | 100 V | 2 A | Solder Retention | 0.217 in | 5.51 mm | Tin | All |
