UTGX7 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

Catalog

CONN RCPT MALE 7POS CRIMP

...

Part	Shell Size - Insert Width	Shell Size - Insert Length	Termination	Shielding	Mounting Feature	Fastening Type	Material Flammability Rating	Insert Material	Voltage Rating	Applications	Contact Material	Number of Positions	Position Types	Features	Shell Material	Operating Temperature (Min)	Operating Temperature (Max)	Color	Mounting Type	Primary Material	Orientation	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Size	Includes Total Count	Includes	Type	Contact Shape	Housing Color	Note	Contact Type	Contact Finish - Mating	Current Rating Options

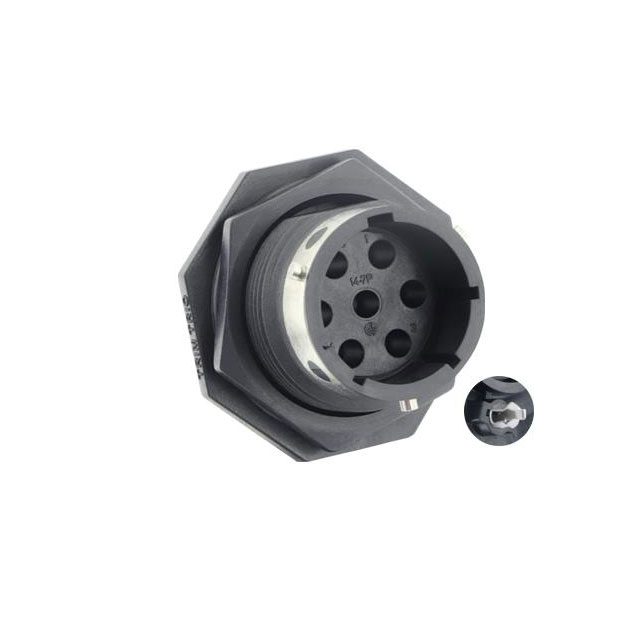

Amphenol Aerospace Operations UTGX7147PSEK9	7 mm	14 mm	Crimp	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Nylon PA Polyamide	500 V	Automation Industrial Instrumentation Testing Equipment	Brass	7	PE	UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount	Plastic	N (Normal)	10 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle

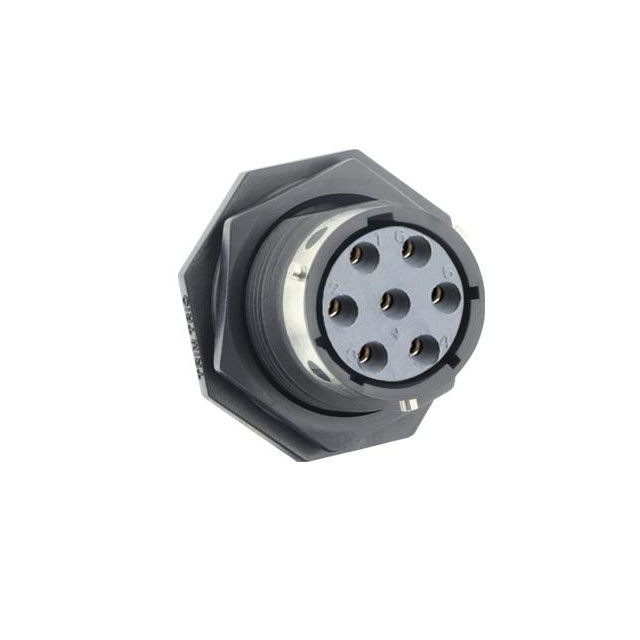

Amphenol Aerospace Operations UTGX714D7S	7 mm	14 mm	Solder	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Polychloroprene	600 V	Automation Industrial Instrumentation Testing Equipment	Brass	7	PE	UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount Through Hole	Plastic	N (Normal)	12 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Female Sockets Receptacle

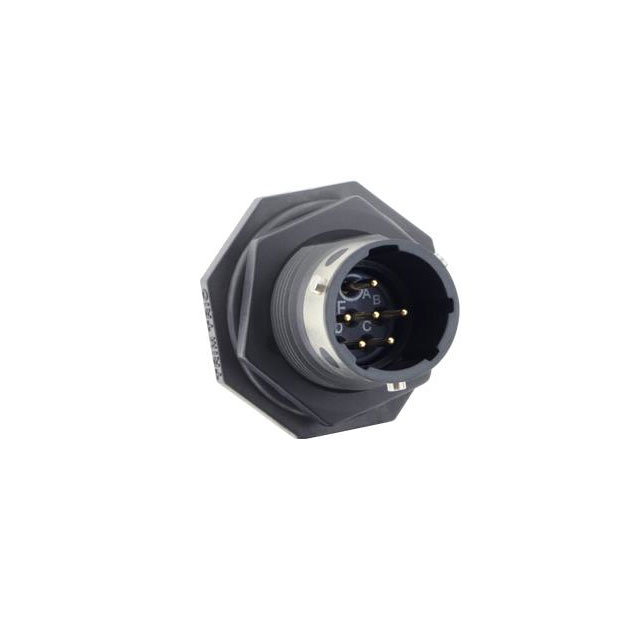

Amphenol Aerospace Operations UTGX710E98P			Solder Cup	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Polychloroprene	250 V	Automation Industrial Instrumentation Testing Equipment	Brass	6		UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount	Plastic	N (Normal)	6 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle	98	10

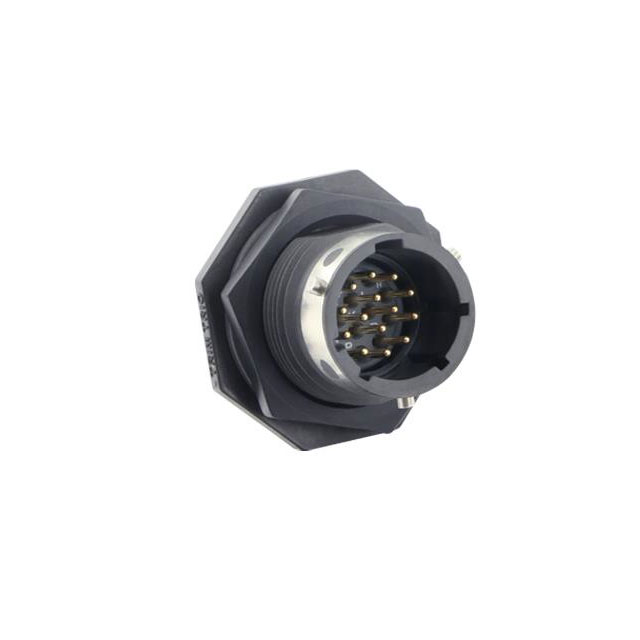

Amphenol Aerospace Operations UTGX712E14P			Solder Cup	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Polychloroprene	250 V	Automation Industrial Instrumentation Testing Equipment	Brass	14		UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount	Plastic	N (Normal)	4.5 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle	14	12

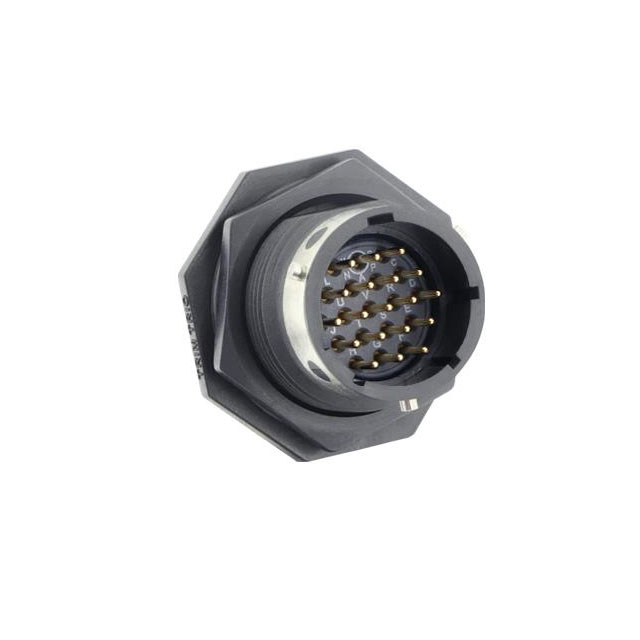

Amphenol Aerospace Operations UTGX714E19P			Solder Cup	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Polychloroprene	250 V	Automation Industrial Instrumentation Testing Equipment	Brass	19		UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount	Plastic	N (Normal)	4 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle

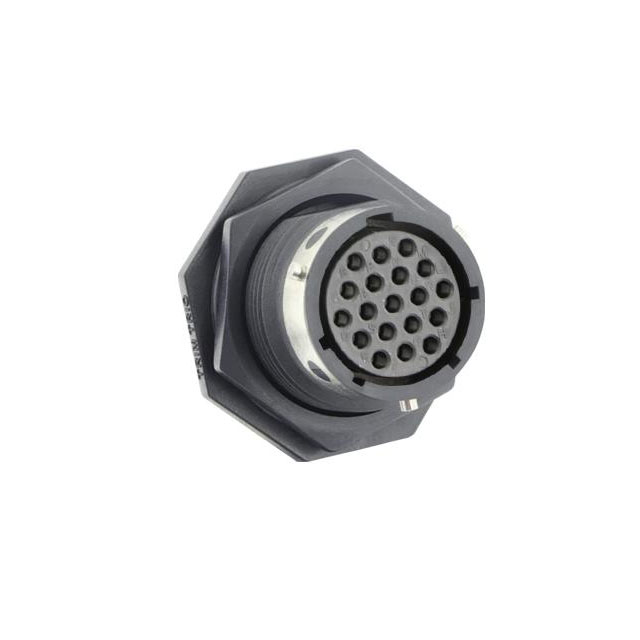

Amphenol Aerospace Operations UTGX71419S				Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Nylon PA Polyamide				19		UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C		Panel Mount		N (Normal)		Dust Tight Water Resistant Waterproof	IP68 IP69K	Receptacle Housing	19	14 S	20	3 pcs	Connector Nut O-Ring	For Female Sockets	Circular	Black	Contacts Not Included	Crimp

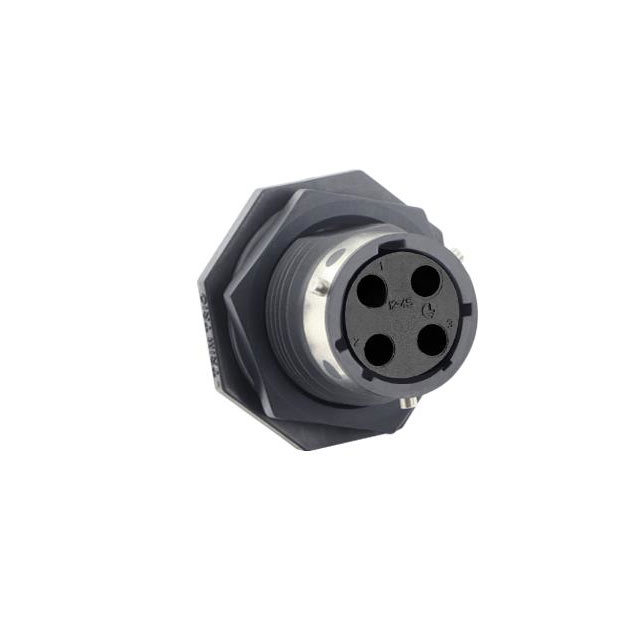

Amphenol Aerospace Operations UTGX7124SSCR	4 mm	12 mm	Screw	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Nylon PA Polyamide	500 V	Automation Industrial Instrumentation Testing Equipment	Brass	4	PE	UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount	Plastic	N (Normal)	16 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Female Sockets Receptacle											Gold

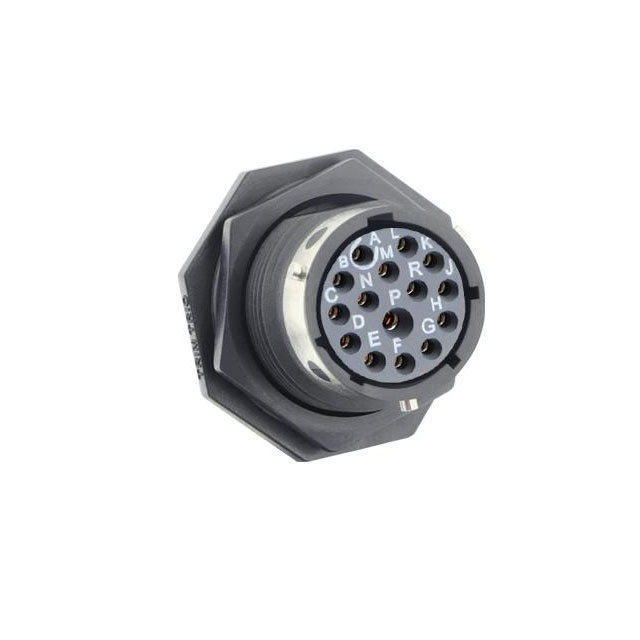

Amphenol Aerospace Operations UTGX714D15S			Solder	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Polychloroprene	250 V 600 V	Automation Industrial Instrumentation Testing Equipment	Brass	15	Power	UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount Through Hole	Plastic	N (Normal)		Dust Tight Water Resistant Waterproof	IP68 IP69K	Female Sockets Receptacle	15	14 S										12A 5A

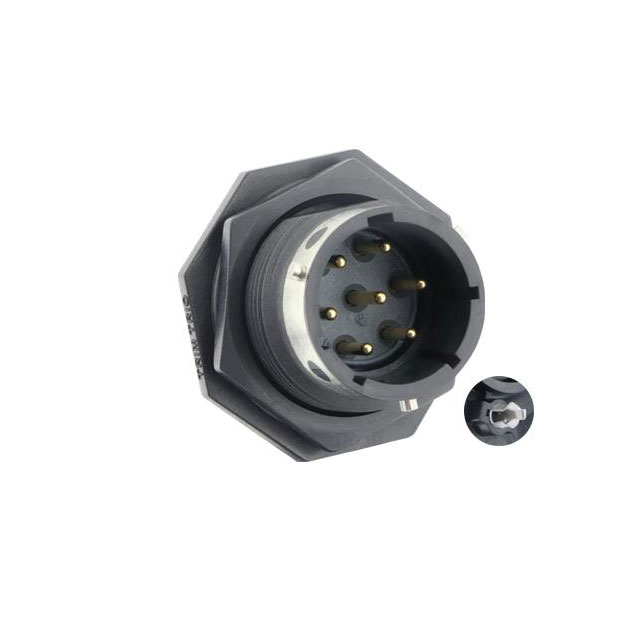

Amphenol Aerospace Operations UTGX714D7P32	7 mm	14 mm	Solder	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Polychloroprene	600 V	Automation Industrial Instrumentation Testing Equipment	Brass	7	PE	Board Lock UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount Through Hole	Plastic	N (Normal)	12 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle

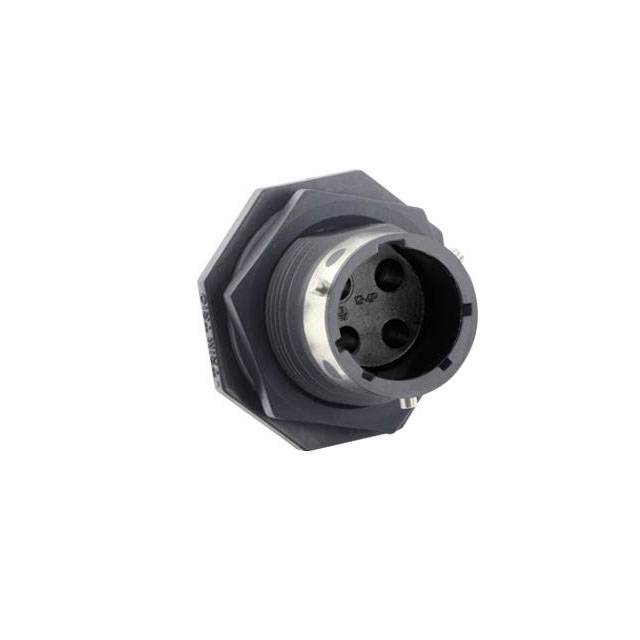

Amphenol Aerospace Operations UTGX7124PSCR			Screw	Unshielded	Bulkhead Front Side Nut	Bayonet Lock	UL94 V-0	Nylon PA Polyamide	500 V	Automation Industrial Instrumentation Testing Equipment	Brass	4	PE	UV Resistant	Nylon Polyamide (PA)	-40 °C	105 °C	Black	Panel Mount	Plastic	N (Normal)	16 A	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle											Gold
