ECG-SY Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

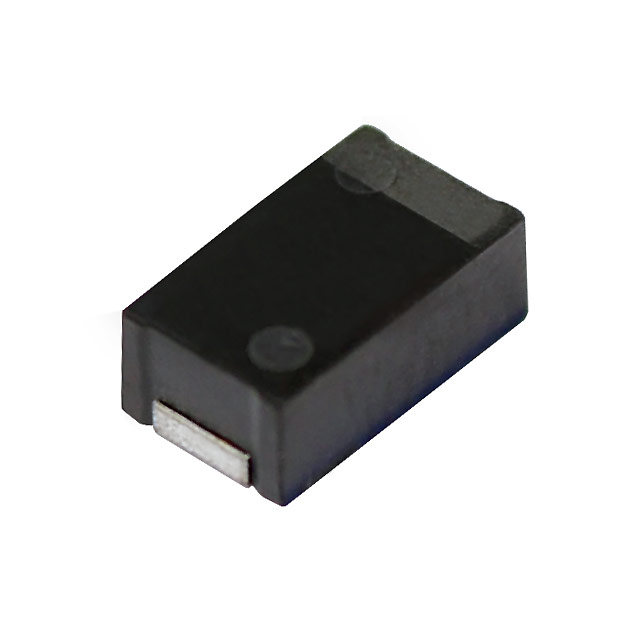

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 330 ΜF, 6.3 V, 2917 [7343 METRIC], 0.009 OHM
| Part | Capacitance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Min] | Operating Temperature [Max] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Package / Case | Mounting Type | Ripple Current @ High Frequency | Applications | Lifetime @ Temp. | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | ESR (Equivalent Series Resistance) | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 330 µF | 0.118 " | 3 mm | -55 C | 85 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | 2917 (7343 Metric) | Surface Mount | 6.3 A | General Purpose | 2000 Hrs | Polymer | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 20 % | 9 mOhms | 6.3 VDC |
