40.61.9 Series

Catalog

RELAY GEN PURPOSE SPDT 16A 18V

Part	Coil Resistance	Mounting Type	Contact Rating (Current)	Must Release Voltage	Operate Time	Termination Style	Coil Current	Must Operate Voltage	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Relay Type	Coil Type	Release Time	Contact Material	Load - Max Switching	Contact Form	Coil Voltage	Seal Rating
Finder Relays, Inc. 40.61.9.018.0000	500 Ohms	Socketable	16 A	3.6 VDC	7 ms	Plug In	36 mA	13.1 VDC	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 C	400 VAC	General Purpose	Non Latching	3 ms	Silver Cadmium Oxide (AgCdO)	6400 VA	SPDT (1 Form C)	18 VDC	Sealed - Flux Protection
Finder Relays, Inc. 40.61.9.005.0000	38 Ohms	Socketable	16 A	1 VDC	7 ms	Plug In	130 mA	3.56 VDC	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 C	400 VAC	General Purpose	Non Latching	3 ms	Silver Cadmium Oxide (AgCdO)	6400 VA	SPDT (1 Form C)	5 VDC	Sealed - Flux Protection
Finder Relays, Inc. 40.61.9.024.0300	900 Ohms	Socketable	16 A	4.8 VDC	7 ms	Plug In	27 mA	17.5 VDC	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 C	400 VAC	General Purpose	Non Latching	3 ms	Silver Cadmium Oxide (AgCdO)	6400 VA	SPST-NO (1 Form A)	24 VDC	Sealed - Flux Protection
Finder Relays, Inc. 40.61.9.060.0000	5.5 kOhms	Socketable	16 A	12 VDC	7 ms	Plug In	11 mA	43.8 VDC	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 C	400 VAC	General Purpose	Non Latching	3 ms	Silver Cadmium Oxide (AgCdO)	6400 VA	SPDT (1 Form C)	60 VDC	Sealed - Flux Protection
Finder Relays, Inc. 40.61.9.024.0001	900 Ohms	Socketable	16 A	4.8 VDC	7 ms	Plug In	27 mA	17.5 VDC	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 C	400 VAC	General Purpose	Non Latching	3 ms	Silver Cadmium Oxide (AgCdO)	6400 VA	SPDT (1 Form C)	24 VDC
Finder Relays, Inc. 40.61.9.012.0001	220 Ohms	Socketable	16 A	2.4 VDC	7 ms	Plug In	55 mA	8.8 VDC	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 C	400 VAC	General Purpose	Non Latching	3 ms	Silver Cadmium Oxide (AgCdO)	6400 VA	SPDT (1 Form C)	12 VDC

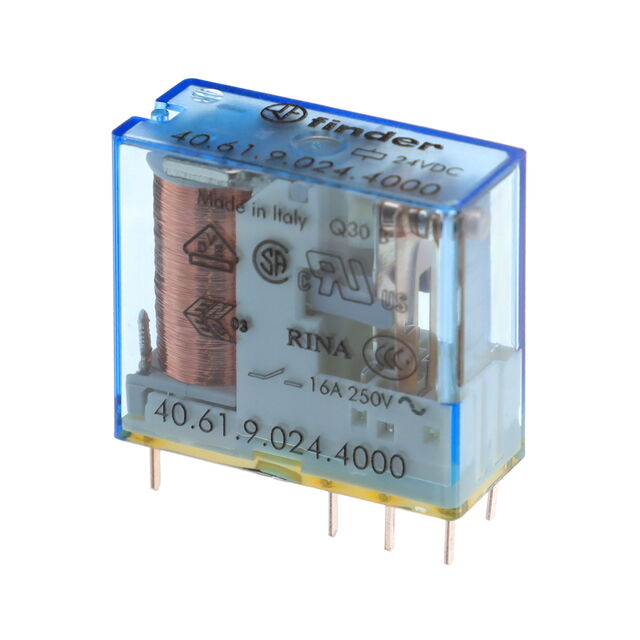

Finder Relays, Inc. 40.61.9.024.4000	900 Ohms	Socketable	16 A	4.8 VDC	7 ms	Plug In	27 mA	17.5 VDC	CCC CSA cURus EAC ENEC RINA VDE	85 °C	-40 C	400 VAC	General Purpose	Non Latching	3 ms	Silver Cadmium Oxide (AgCdO)	6400 VA	SPDT (1 Form C)	24 VDC	Sealed - Flux Protection
