202A153 Series

Catalog

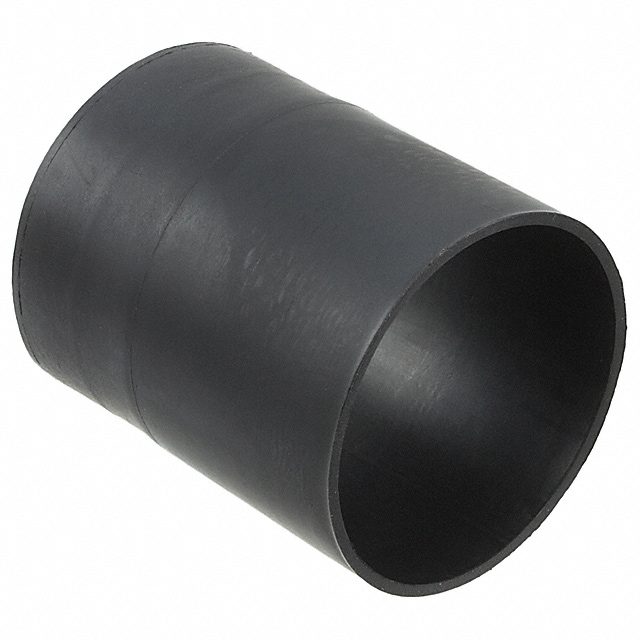

HEATSHRINK BOOT SZ53 BLACK

Part	Material	Total Length Recovered	Total Length Recovered	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Type	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Features	Shell Size - Insert	Small Recovered Length	Small Recovered Length	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 202A153-25/86-0	Elastomer Semi-Rigid	2.902 in	73.71 mm	1.42 in	36.07 mm	Boot	8.61 mm	0.339 "	1.63 in	41.4 mm	Adhesive Coating Fluid Resistant	53	0.87 in	22.1 mm	Black	21.89 mm	0.862 in
TE Connectivity Aerospace, Defense and Marine 202A153-25-CS-2065-0	Elastomer Semi-Rigid					Boot					Fluid Resistant	53			Black
TE Connectivity Aerospace, Defense and Marine 202A153-100-0	Polyolefin (PO) Semi-Flexible Halogen Free	2.902 in	73.71 mm	1.42 in	36.07 mm	Boot	8.61 mm	0.339 "	1.63 in	41.4 mm		53	0.87 in	22.1 mm	Black	21.89 mm	0.862 in	1.031 "	26.19 mm
TE Connectivity Aerospace, Defense and Marine 202A153-25/42-0	Elastomer Semi-Rigid	2.902 in	73.71 mm	1.42 in	36.07 mm	Boot	8.61 mm	0.339 "	1.63 in	41.4 mm	Adhesive Coating Fluid Resistant	53	0.87 in	22.1 mm	Black	21.89 mm	0.862 in
TE Connectivity Aerospace, Defense and Marine 202A153-3/42-0	Polyolefin (PO) Semi-Rigid	2.902 in	73.71 mm	1.42 in	36.07 mm	Boot	8.61 mm	0.339 "	1.63 in	41.4 mm	Adhesive Coating Flame Retardant	53	0.87 in	22.1 mm	Black	21.89 mm	0.862 in
