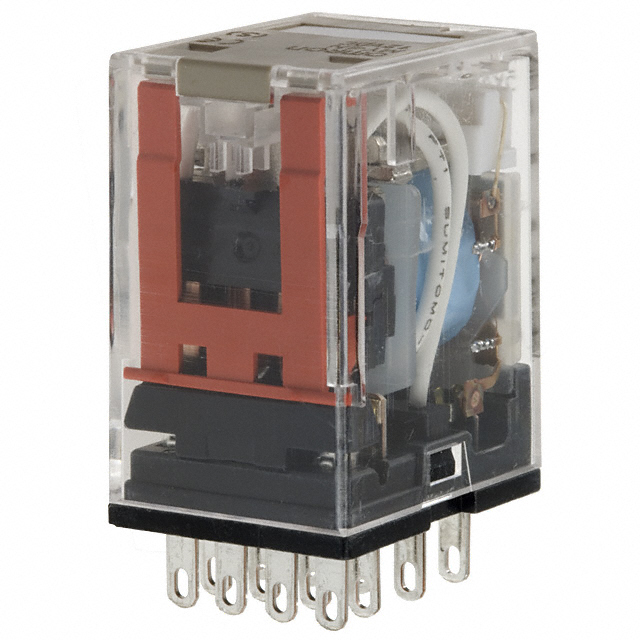

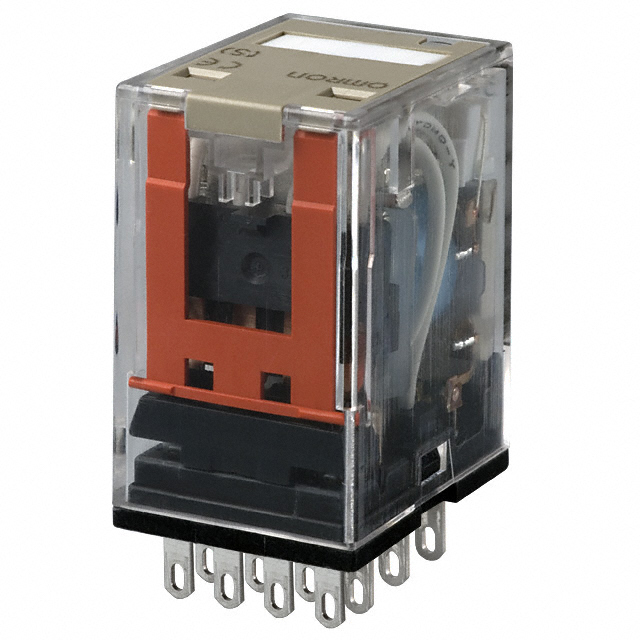

MY4N DC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 3A 12V
| Part | Load - Max Switching | Contact Form | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Release Time | Termination Style | Mounting Type | Relay Type | Coil Voltage | Approval Agency | Contact Material | Must Operate Voltage | Contact Rating (Current) | Features | Coil Type | Must Release Voltage | Operate Time | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 375 W 750 VA | 4PDT (4 Form C) | 165 Ohms | 70 °C | -55 °C | 72.7 mA | 20 ms | Plug In | Socketable | General Purpose | 12 VDC | CE CSA UR VDE | Gold (Au) Silver (Ag) | 9.6 VDC | 3 A | Lighted Indicator | Non Latching | 1.2 VDC | 20 ms | 125 VDC 250 VAC |
Omron Electronics Inc-EMC Div | 375 W 750 VA | 4PDT (4 Form C) | 2560 Ohms | 70 °C | -55 °C | 18.8 mA | 20 ms | Plug In | Socketable | General Purpose | 48 VDC | CE CSA UR VDE | Gold (Au) Silver (Ag) | 38.4 VDC | 3 A | Lighted Indicator | Non Latching | 4.8 VDC | 20 ms | 125 VDC 250 VAC |
 Omron Electronics Inc-EMC Div | 375 W 750 VA | 4PDT (4 Form C) | 662 Ohms | 70 °C | -55 °C | 36.3 mA | 20 ms | Plug In | Socketable | General Purpose | 24 VDC | CE CSA UR VDE | Gold (Au) Silver (Ag) | 19.2 VDC | 3 A | Lighted Indicator | Non Latching | 2.4 VDC | 20 ms | 125 VDC 250 VAC |
Omron Electronics Inc-EMC Div | 375 W 750 VA | 4PDT (4 Form C) | 11.44 kOhms | 70 °C | -55 °C | 9.6 mA | 20 ms | Plug In | Socketable | General Purpose | 110 VDC | CE CSA UR VDE | Gold (Au) Silver (Ag) | 88 VDC | 3 A | Lighted Indicator | Non Latching | 11 VDC | 20 ms | 125 VDC 250 VAC |
Omron Electronics Inc-EMC Div | 375 W 750 VA | 4PDT (4 Form C) | 165 Ohms | 60 °C | -55 °C | 72.7 mA | 20 ms | Plug In 14 Pin | Socketable | General Purpose | 12 VDC | CE CSA UR VDE | Gold (Au) Silver (Ag) | 9.6 VDC | 3 A | Lighted Indicator | Non Latching | 1.2 VDC | 20 ms | 125 VDC 250 VAC |
