R19132 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
N M-SMA F
| Part | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Dielectric Material | Convert To (Adapter End) | Conversion Type | Convert From (Adapter End) | Impedance | Frequency - Max [Max] | Adapter Type | Style | Center Contact Plating | Mounting Type | Mating Cycles | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

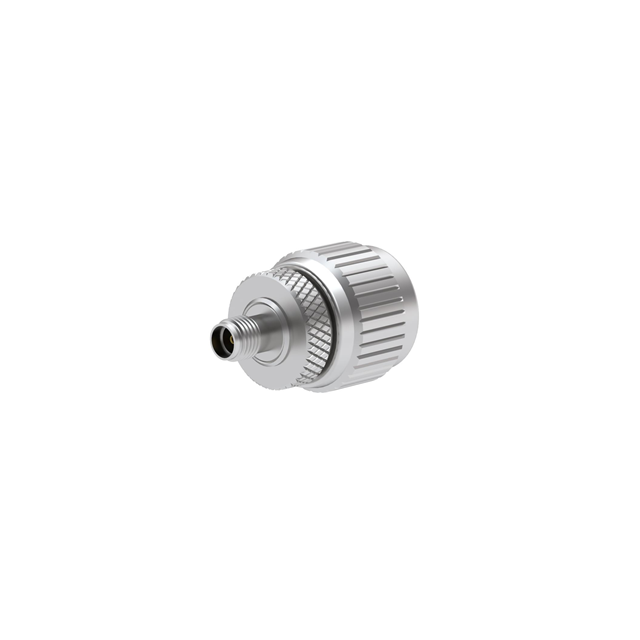

 Radiall USA, Inc. | Brass | Nickel | 155 C | -55 C | Beryllium Copper | Polytetrafluoroethylene (PTFE) | SMA Jack Female Socket | Between Series | N Plug Male Pin | 50 Ohms | 11 GHz | Plug to Jack | Straight | Gold | Free Hanging (In-Line) | ||

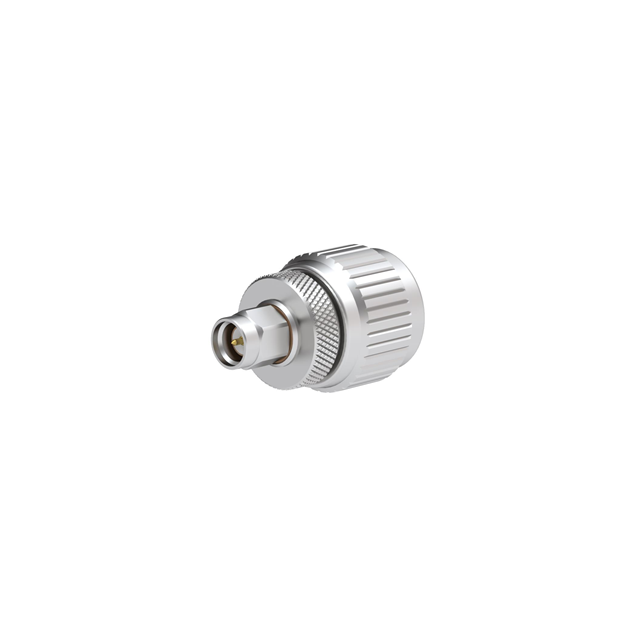

 Radiall USA, Inc. | Brass | Nickel | 155 C | -55 C | Brass | Polytetrafluoroethylene (PTFE) | N Plug Male Pin | Between Series | Male Pin SMA Plug | 50 Ohms | 11 GHz | Plug to Plug | Straight | Gold | Free Hanging (In-Line) | 500 | Male to Male |

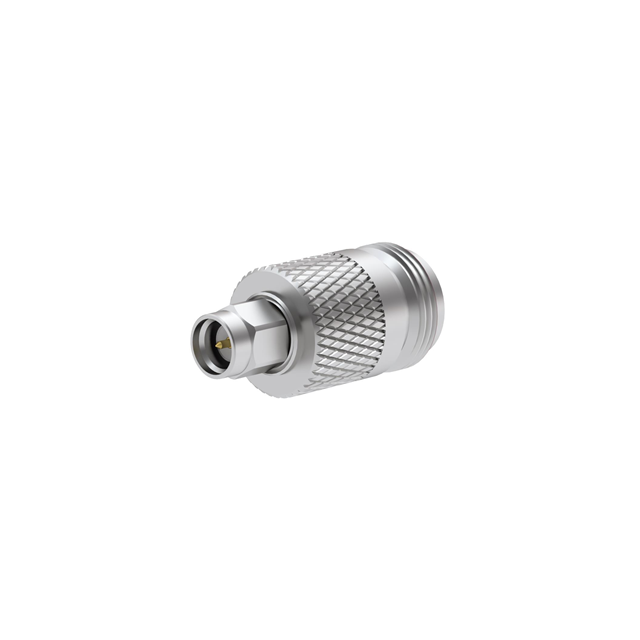

 Radiall USA, Inc. | Beryllium Copper Brass | Nickel | 155 C | -55 C | Beryllium Copper | Polytetrafluoroethylene (PTFE) | N Jack Female Socket | Between Series | Male Pin SMA Plug | 50 Ohms | 11 GHz | Plug to Jack | Straight | Gold | Free Hanging (In-Line) | 500 |
