QGKF-240 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 12V 240W
| Part | Type | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Applications | Power (Watts) | Voltage - Isolation | Current - Output 1 | Mounting Type | Features | Approval Agency | Number of Outputs | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Enclosed | 12 V | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | ITE (Commercial) | 240 Watts | 3000 V | 20 A | Chassis Mount | Adjustable Output DC Input Capable PFC Universal Input | CB CE cURus | 1 | 84 % | 70 °C | -25 °C |

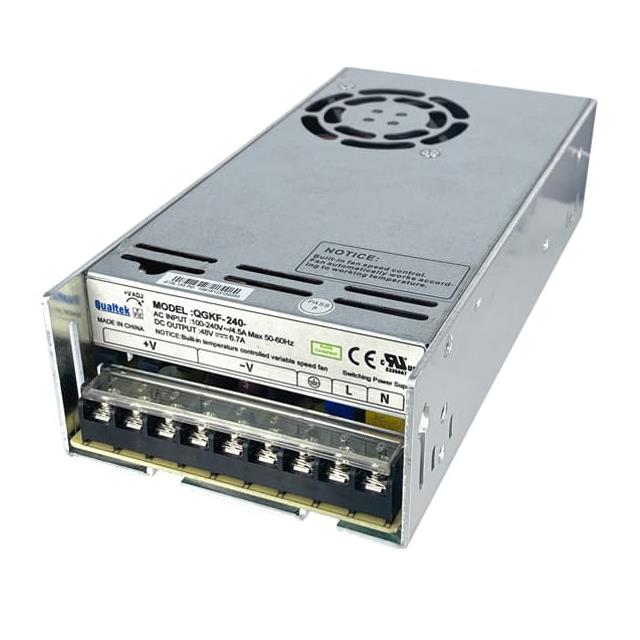

Qualtek | Enclosed | 48 V | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | ITE (Commercial) | 240 Watts | 3000 V | 5 A | Chassis Mount | Adjustable Output DC Input Capable PFC Universal Input | CB CE cURus | 1 | 87.5 % | 70 °C | -25 °C |

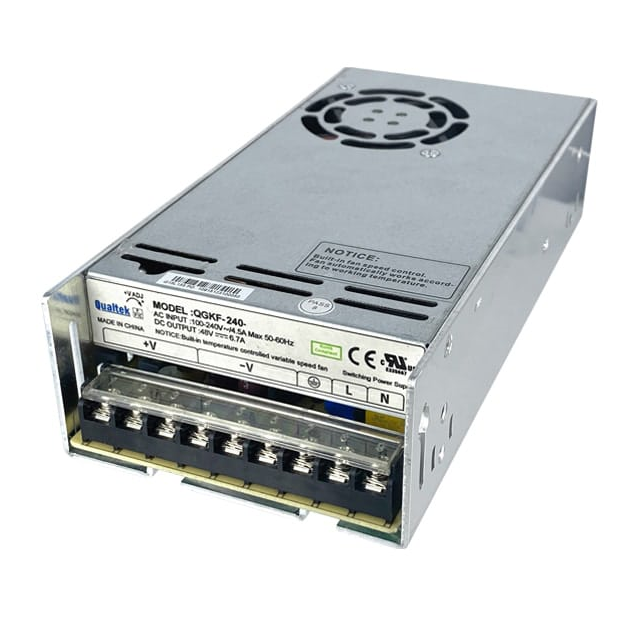

 Qualtek | Enclosed | 5 V | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | ITE (Commercial) | 240 Watts | 3000 V | 48 A | Chassis Mount | Adjustable Output DC Input Capable PFC Universal Input | CB CE cURus | 1 | 79 % | 70 °C | -25 °C |
Qualtek | Enclosed | 24 V | 99 mm | 1.97 " | 3.9 " | 7.83 in | 50 mm | 199 mm | ITE (Commercial) | 240 Watts | 3000 V | 10 A | Chassis Mount | Adjustable Output DC Input Capable PFC Universal Input | CB CE cURus | 1 | 86 % | 70 °C | -25 °C |
