222092 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

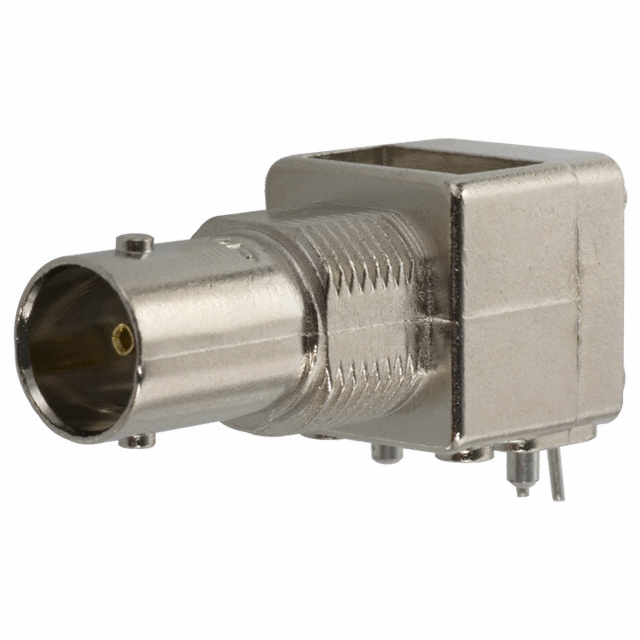

CONN BNC JACK R/A 75 OHM PCB
| Part | Mounting Type | Dielectric Material | Connector Style | Body Finish | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Frequency - Max [Max] | Connector Type | Shield Termination | Voltage Rating | Impedance | Includes | Fastening Type | Center Contact Plating | Mounting Feature | Housing Color | Mating Cycles | Contact Termination | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Panel Mount Right Angle Through Hole | Polymethylpentene (PMP) | BNC | Nickel | Beryllium Copper | 85 °C | -55 °C | 1 | 2 GHz | Female Socket Jack | Solder | 500 V | 75 Ohms | 1 Connector 1 Lockwasher 1 Nut | Bayonet Lock | Silver | Bulkhead - Front Side Nut | Silver | 500 | Solder | Zinc |
 TE Connectivity Raychem Cable Protection | Panel Mount Right Angle Through Hole | Polymethylpentene (PMP) | BNC | Nickel | Beryllium Copper | 85 °C | -55 °C | 1 | 2 GHz | Female Socket Jack | Solder | 500 V | 75 Ohms | 1 Connector 1 Lockwasher 1 Nut | Bayonet Lock | Gold | Bulkhead - Front Side Nut | Silver | 500 | Solder | Zinc |
