HLG-150H Series

Catalog

LED DRVR CC/CV AC/DC 27-54V 2.8A

Part	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Power (Watts)	Efficiency	Ratings	Features	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Type	Termination Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Dimming	Voltage - Output
MEAN WELL USA Inc. HLG-150H-54B	Chassis Mount	90 VAC	3750 VDC	151 W	94 %	IP67	OCP OTP OVP SCP	1	2.8 A	305 VAC	90 °C	-40 C	AC DC Converter	54 V	27 V	Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus PSE RCM TUV	Analog PWM
MEAN WELL USA Inc. HLG-150H-42	Chassis Mount	90 VAC	3750 VDC	151 W	94 %	IP67	OCP OTP OVP SCP	1	3.6 A	305 VAC	90 °C	-40 C	AC DC Converter	42 V	21 V	Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus PSE RCM TUV
MEAN WELL USA Inc. HLG-150H-12AB	Chassis Mount	90 VAC	3750 VDC	150 W	91.5 %	IP65	OCP OTP OVP SCP	1	12.5 A	305 VAC	90 °C	-40 C	AC DC Converter			Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus EAC KC PSE RCM TUV		12 V
MEAN WELL USA Inc. HLG-150H-24	Chassis Mount	90 VAC	3750 VDC	151 W	93 %	IP67	OCP OTP OVP SCP	1	6.3 A	305 VAC	90 °C	-40 C	AC DC Converter	24 V	12 V	Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus PSE RCM TUV
MEAN WELL USA Inc. HLG-150H-42A	Chassis Mount	90 VAC	3750 VDC	151 W	94 %	IP65	OCP OTP OVP SCP	1	3.6 A	305 VAC	90 °C	-40 C	AC DC Converter	46 V	38 V	Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus PSE RCM TUV
MEAN WELL USA Inc. HLG-150H-36A	Chassis Mount	90 VAC	3750 VDC	151 W	93.5 %	IP65	OCP OTP OVP SCP	1	4.2 A	305 VAC	90 °C	-40 C	AC DC Converter	40	33	Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus PSE RCM TUV

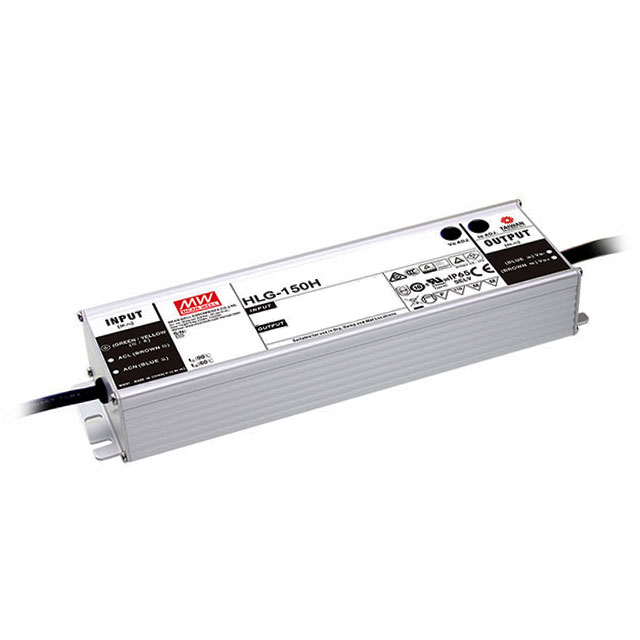

MEAN WELL USA Inc. HLG-150H-54AB	Chassis Mount	90 VAC	3750 VDC	151 W	94 %	IP65	OCP OTP OVP SCP	1	2.8 A	305 VAC	90 °C	-40 C	AC DC Converter			Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus EAC KC PSE RCM TUV	Analog PWM	54 V
MEAN WELL USA Inc. HLG-150H-24AB	Chassis Mount	90 VAC	3750 VDC	151 W	93 %	IP65	OCP OTP OVP SCP	1	6.3 A	305 VAC	90 °C	-40 C	AC DC Converter			Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus EAC KC PSE RCM TUV	Analog PWM	24 V
MEAN WELL USA Inc. HLG-150H-36B	Chassis Mount	90 VAC	3750 VDC	151 W	93.5 %	IP67	OCP OTP OVP SCP	1	4.2 A	305 VAC	90 °C	-40 C	AC DC Converter	36 V	18 V	Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus PSE RCM TUV	Analog PWM
MEAN WELL USA Inc. HLG-150H-42AB	Chassis Mount	90 VAC	3750 VDC	151 W	94 %	IP65	OCP OTP OVP SCP	1	3.6 A	305 VAC	90 °C	-40 C	AC DC Converter			Constant Current Voltage	Wire Leads	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	CB CCC CE cURus EAC KC PSE RCM TUV	Analog PWM	42 V
