2307730 Series

Catalog

14P,2MM,B-B,REC,DRHZ,SMD,0.38AU,

Part	Contact Finish - Mating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Number of Positions Loaded	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Insulation Color	Insulation Material	Current Rating (Amps)	Contact Shape	Fastening Type	Mounting Type	Number of Positions

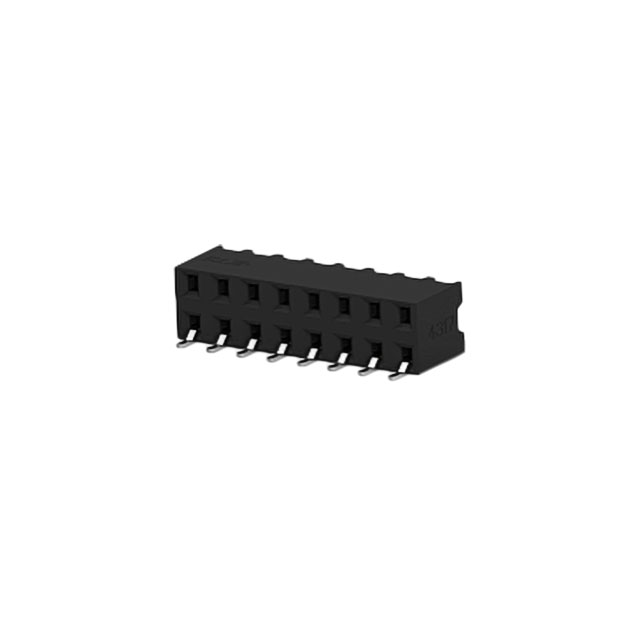

TE Connectivity Raychem Cable Protection 1-2307730-4	Gold	Solder	0.079 in	2 mm	UL94 V-0	0.161 in	4.1 mm	Receptacle	All	14	125 °C	-40 °C	Female Socket	15 µin	0.38 µm	Tin	3 µm	118.1 µin	2	125 VDC	0.079 in	2 mm	Phosphor Bronze	Black	Liquid Crystal Polymer (LCP)	2 A	Square	Push-Pull	Surface Mount Right Angle

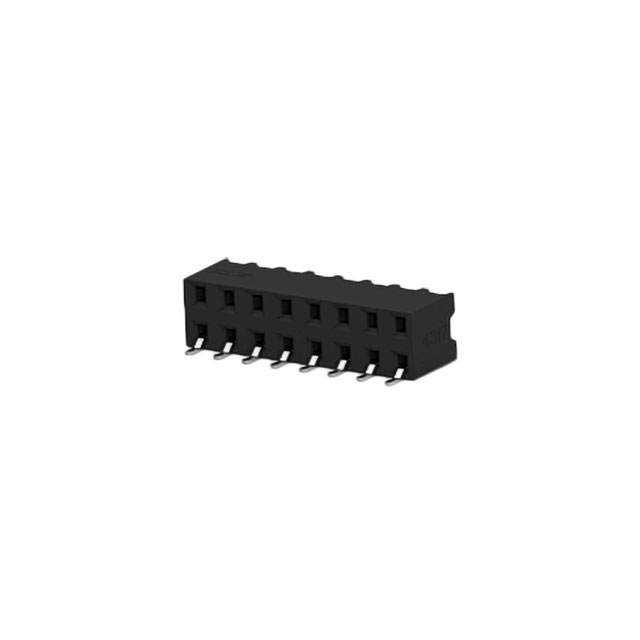

TE Connectivity Raychem Cable Protection 1-2307730-6	Gold	Solder	0.079 in	2 mm	UL94 V-0	0.161 in	4.1 mm	Receptacle	All		125 °C	-40 °C	Female Socket	15 µin	0.38 µm	Tin	3 µm	118.1 µin	2	125 VDC	0.079 in	2 mm	Phosphor Bronze	Black	Liquid Crystal Polymer (LCP)	2 A	Square	Push-Pull	Surface Mount Right Angle	16
