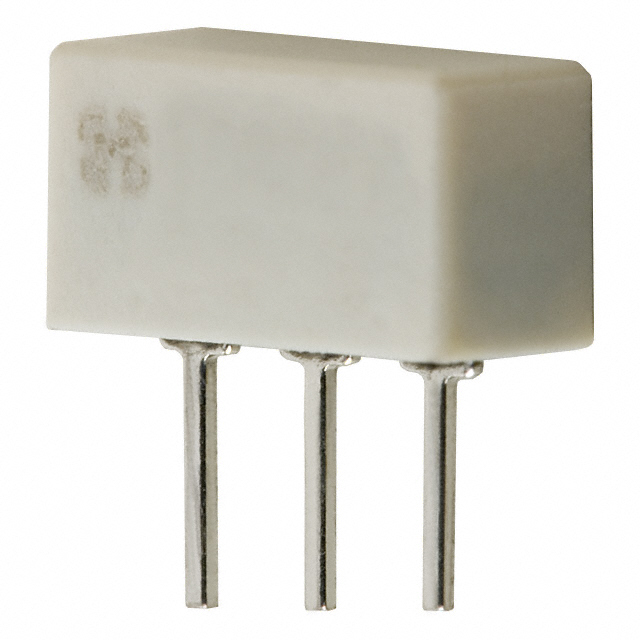

EFO-MC Series

Catalog

CERAMIC RES 4.0000MHZ T/H

Part	Features	Type	Frequency Tolerance	Package / Case	Package / Case	Height [z]	Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency Stability	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency
Panasonic Industrial Automation Sales EFO-MC4004A4	Built in Capacitor	Ceramic	0.5 %	Radial Box	2.5 mm 3 Lead	0.197 "	5 mm	-20 C	80 C	0.3 %	Through Hole	8.5 mm	0.158 in	4 mm	0.335 "	4 MHz
Panasonic Industrial Automation Sales EFO-MC5004A4	Built in Capacitor	Ceramic	0.5 %	Radial Box	2.5 mm 3 Lead	0.197 "	5 mm	-20 C	80 C	0.3 %	Through Hole	8.5 mm	0.158 in	4 mm	0.335 "	5 MHz
Panasonic Industrial Automation Sales EFO-MC6004A4	Built in Capacitor	Ceramic	0.5 %	Radial Box	2.5 mm 3 Lead	0.197 "	5 mm	-20 C	80 C	0.3 %	Through Hole	8.5 mm	0.158 in	4 mm	0.335 "	6 MHz
Panasonic Industrial Automation Sales EFO-MC8004A4	Built in Capacitor	Ceramic	0.5 %	Radial Box	2.5 mm 3 Lead	0.197 "	5 mm	-20 C	80 C	0.3 %	Through Hole	8.5 mm	0.158 in	4 mm	0.335 "	8 MHz
