PV4FWH0 Series
Manufacturer: E-Switch
Beta
⌘K

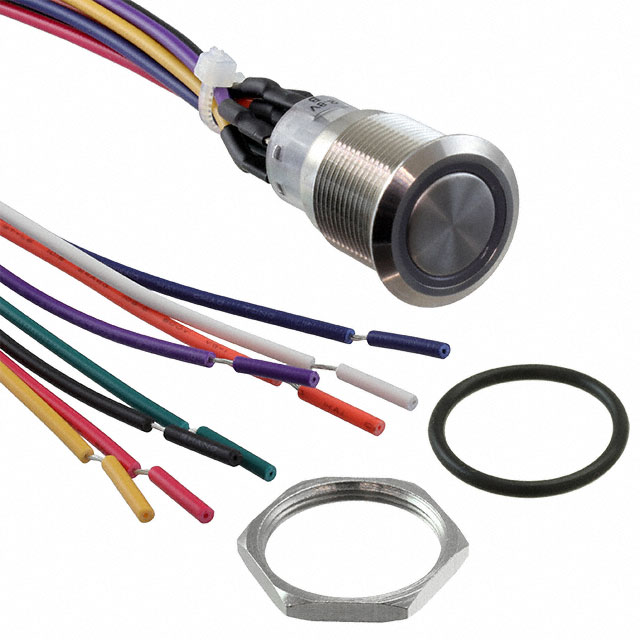

SWITCH PB DPDT 2A 24V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [diameter] | Termination Style | Illumination Type, Color | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Current Rating (Amps) | Color - Actuator/Cap | Type | Voltage Rating - DC | Actuator Type | Illumination Voltage (Nominal) | Circuit | Mounting Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 1000000 Cycles | 50000 Cycles | 19 mm | Wire Leads | Blue LED | No Marking | 55 °C | -20 ░C | IP65 - Dust Tight Water Resistant | 2 A | Silver | Anti-Vandal Illuminated | 24 V | Button Flush Round | 2.8 VDC | DPDT | Panel Mount Front | On-Mom |
