FFKDSA Series

Fixed Terminal Blocks FFKDSA1/V1-5.08-24

Manufacturer: Phoenix Contact

Catalog

Fixed Terminal Blocks FFKDSA1/V1-5.08-24

Catalog

Fixed Terminal Blocks FFKDSA1/V1-5.08-24

Part	Mounting Type	Pitch	Pitch	Color	Number of Levels	Positions Per Level	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Features	Mating Orientation	Current	Voltage	Housing Material	Positions Per Level [custom]

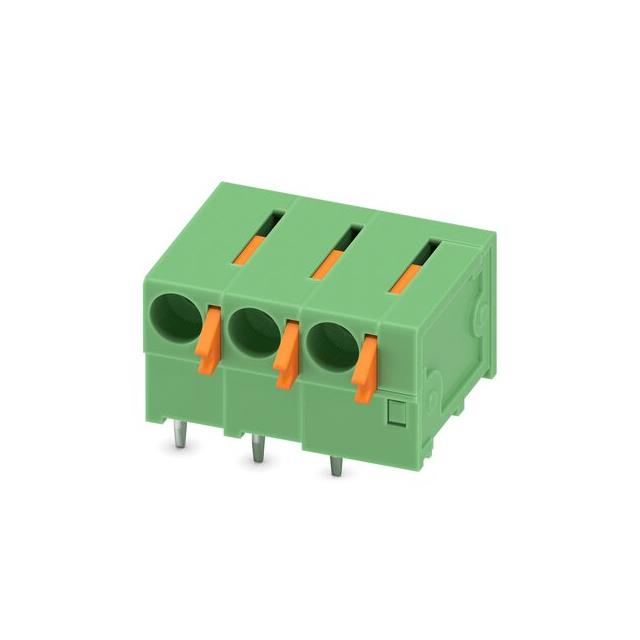

Phoenix Contact 1700499	Through Hole	5.08 mm	0.2 in	Green	1	3	Screwless - Spring Cage Tension Clamp	16 AWG	22 AWG	Interlocking (Side) Lever Actuated	Horizontal with Board	10 A	300 VDC

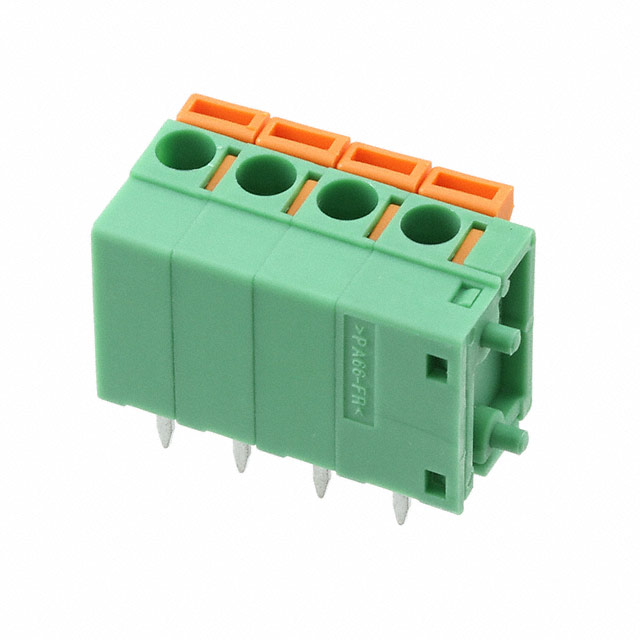

Phoenix Contact 1790539	Through Hole	5.08 mm	0.2 in	Green	1	4	Screwless - Spring Cage Tension Clamp	16 AWG	22 AWG	Interlocking (Side) Lever Actuated	Vertical with Board	10 A	300 VDC	Polyamide (PA) Nylon
Phoenix Contact 1731718	Through Hole	5.08 mm	0.2 in	Green	1		Screwless - Spring Cage Tension Clamp	16 AWG	22 AWG	Interlocking (Side) Lever Actuated	Vertical with Board	10 A	300 VDC		24
Phoenix Contact 1789485	Through Hole	2.54 mm	0.1 "		1		Screwless - Spring Cage Tension Clamp	19.5 AWG	26 AWG	Interlocking (Side) Lever Actuated	90° Angle with Panel	6 A	150 V		7
Phoenix Contact 1889880	Through Hole	2.54 mm	0.1 "		1	22	Screwless - Spring Cage Tension Clamp	19.5 AWG	26 AWG	Interlocking (Side) Lever Actuated	90° Angle with Panel	6 A	150 V

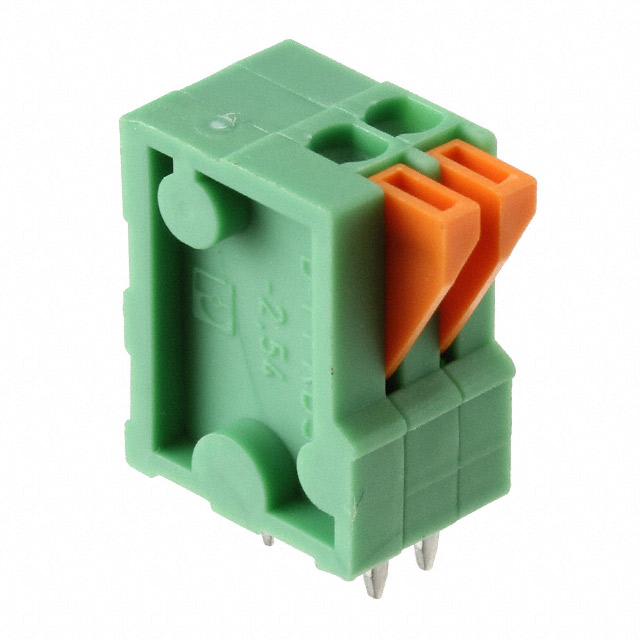

Phoenix Contact 1789618	Through Hole	2.54 mm	0.1 "	Green	1	2	Screwless - Spring Cage Tension Clamp	19.5 AWG	26 AWG	Interlocking (Side) Lever Actuated	Vertical with Board	6 A	150 V

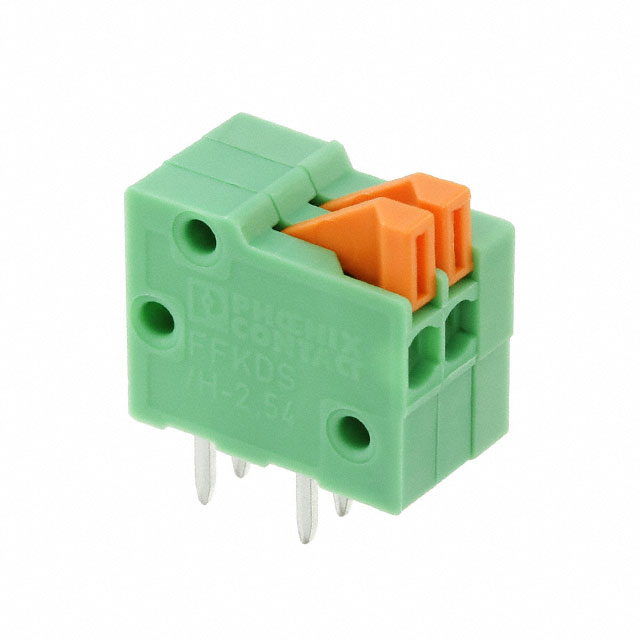

Phoenix Contact 1792511	Through Hole	2.54 mm	0.1 "	Green		2	Screwless - Spring Cage Tension Clamp	19.5 AWG	26 AWG	Interlocking (Side) Lever Actuated	Horizontal with Board	6 A	150 V

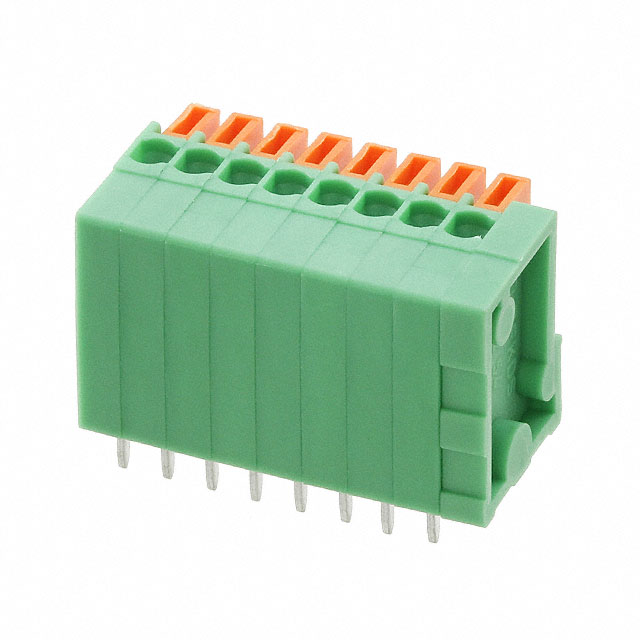

Phoenix Contact 1789472	Through Hole	2.54 mm	0.1 "		1	8	Screwless - Spring Cage Tension Clamp	19.5 AWG	26 AWG	Interlocking (Side) Lever Actuated	Vertical with Board	6 A	150 V
