CLU713 Series
Manufacturer: Citizen Finedevice Co Ltd
Beta
⌘K

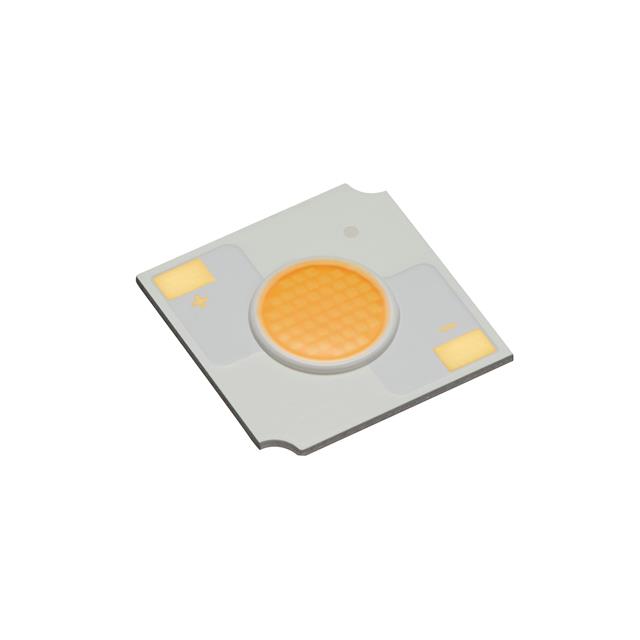

LED COB CLU713 WARM WHT SQ 3500K
| Part | Lens Type | Configuration | Features | Color | Size / Dimension [y] | Size / Dimension [x] | Type | Temperature - Test | Lumens/Watt @ Current - Test | Light Emitting Surface (LES) [diameter] | Current - Max [Max] | Height [z] | Luminous Flux @ Current/Temperature | CCT (K) | CCT (K) | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | Flat | Square | With Connector | Warm White | 19 mm | 19 mm | Chip On Board (COB) | 85 °C | 134 lm/W | 8.5 mm | 1.2 A | 1.4 mm | 3638 lm | 3500 K | 3-Step MacAdam Ellipse | 36.5 V | 97 |
Citizen Finedevice Co Ltd | Flat | Square | With Connector | Warm White | 19 mm | 19 mm | Chip On Board (COB) | 85 °C | 106 lm/W | 8.5 mm | 1.2 A | 1.4 mm | 3500 K | 3-Step MacAdam Ellipse | 36.5 V | 97 | |
Citizen Finedevice Co Ltd | Flat | Square | With Connector | Warm White | 19 mm | 19 mm | Chip On Board (COB) | 85 °C | 131 lm/W | 8.5 mm | 1.2 A | 1.4 mm | 3557 lm | 3000 K | 3-Step MacAdam Ellipse | 36.5 V | 97 |
Citizen Finedevice Co Ltd | Flat | Square | With Connector | Neutral White | 19 mm | 19 mm | Chip On Board (COB) | 85 °C | 137 lm/W | 8.5 mm | 1.2 A | 1.4 mm | 3726 lm | 4000 K | 3-Step MacAdam Ellipse | 36.5 V | 97 |
