0675-0 Series

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Tail Type	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material
Mill-Max Manufacturing Corp. 0675-0-15-01-30-02-10-0	-55 C	125 °C	2.54 µm	100 µin	Tin-Lead	Solder	No Tail	1.37 mm	0.054 in	0.072 "	1.83 mm	0.145 in	3.68 mm	3.05 mm	0.12 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper

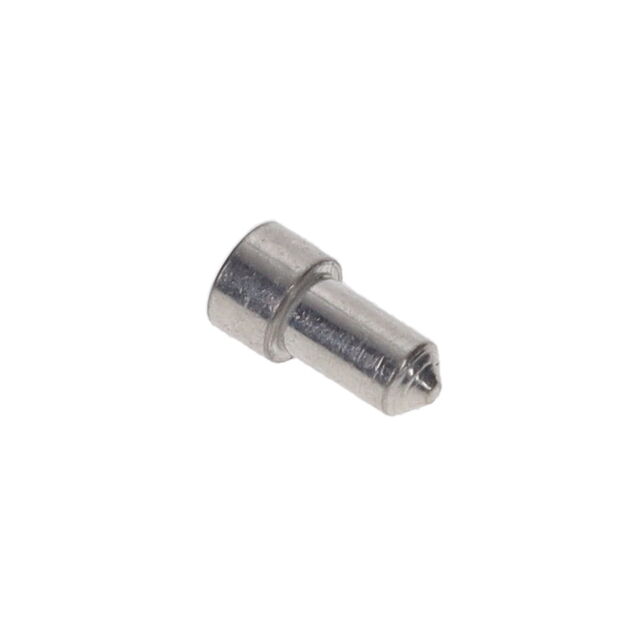

Mill-Max Manufacturing Corp. 0675-0-15-01-30-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	Solder	No Tail	1.37 mm	0.054 in	0.072 "	1.83 mm	0.145 in	3.68 mm	3.05 mm	0.12 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 0675-0-15-80-30-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Gold	Solder	No Tail	1.37 mm	0.054 in	0.072 "	1.83 mm	0.145 in	3.68 mm	3.05 mm	0.12 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 0675-0-15-80-30-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Gold	Solder	No Tail	1.37 mm	0.054 in	0.072 "	1.83 mm	0.145 in	3.68 mm	3.05 mm	0.12 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper
