ERZ-E11 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

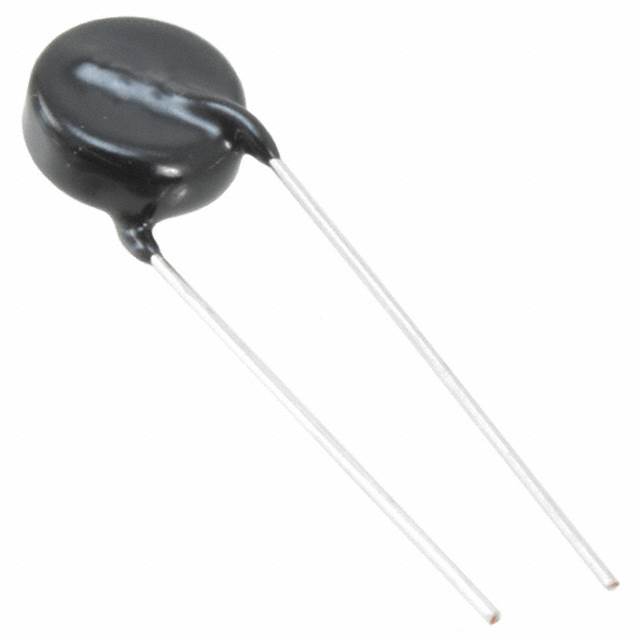

VARISTOR 620V 5KA DISC 14MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Number of Circuits	Capacitance @ Frequency	Current - Surge	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Energy	Mounting Type	Varistor Voltage (Typ)	Maximum AC Volts	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Maximum DC Volts
Panasonic Industrial Automation Sales ERZ-E11A621CS	85 °C	-40 °C	14 mm	Disc	1	300 pF	5 kA	505 V	558 V	190 J	Through Hole	620 V	385 V
Panasonic Industrial Automation Sales ERZ-E11F102	85 °C	-40 °C	14 mm	Disc	1	220 pF	5 kA	825 V	900 V	280 J	Through Hole	1 kV		625 V	1.1 kV
Panasonic Industrial Automation Sales ERZ-E11A911CS	85 °C	-40 °C	14 mm	Disc	1	240 pF	5 kA	745 V	819 V	255 J	Through Hole	910 V		550 V	1.001 kV

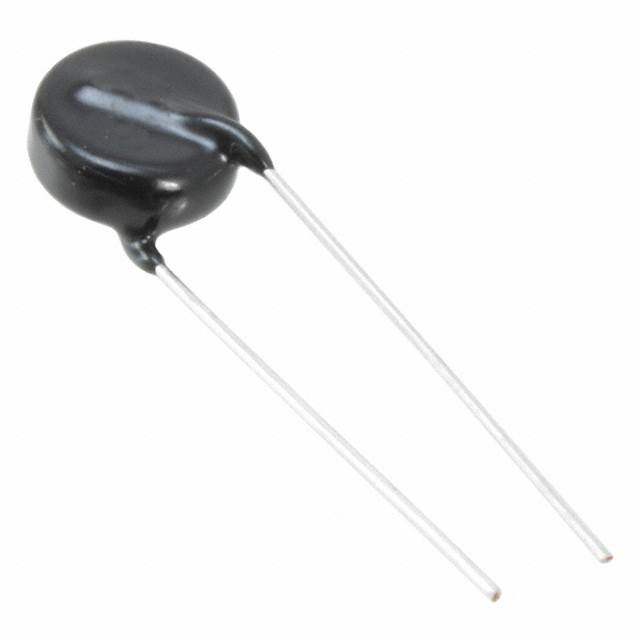

Panasonic Industrial Automation Sales ERZ-E11A391	85 °C	-40 °C		Disc 13mm	1	450 pF	6 kA	320 V	351 V	140 J	Through Hole	390 V		250 V	429 V
Panasonic Industrial Automation Sales ERZ-E11E821	85 °C	-40 °C	14 mm	Disc	1	260 pF	5 kA		738 V	235 J	Through Hole	820 V		510 V	902 V	670 V
Panasonic Industrial Automation Sales ERZ-E11E471	85 °C	-40 °C		Disc 13mm	1	360 pF	6 kA	385 V	423 V	175 J	Through Hole	470 V	300 V		517 V
Panasonic Industrial Automation Sales ERZ-E11A241	85 °C	-40 °C		Disc 13mm	1	620 pF	6 kA	200 V	216 V	84 J	Through Hole	240 V		150 V	264 V
Panasonic Industrial Automation Sales ERZ-E11E681	85 °C	-40 °C	14 mm	Disc	1	290 pF	5 kA	560 V	612 V	190 J	Through Hole	680 V		420 V	748 V
Panasonic Industrial Automation Sales ERZ-E11F221	85 °C	-40 °C		Disc 13mm	1	660 pF	6 kA	180 V	198 V	78 J	Through Hole	220 V		140 V	242 V
Panasonic Industrial Automation Sales ERZ-E11F511	85 °C	-40 °C		Disc 13mm	1	310 pF	6 kA	410 V	459 V	190 J	Through Hole	510 V		320 V	561 V
