TPS54625 Series
Manufacturer: Texas Instruments
Beta
⌘K

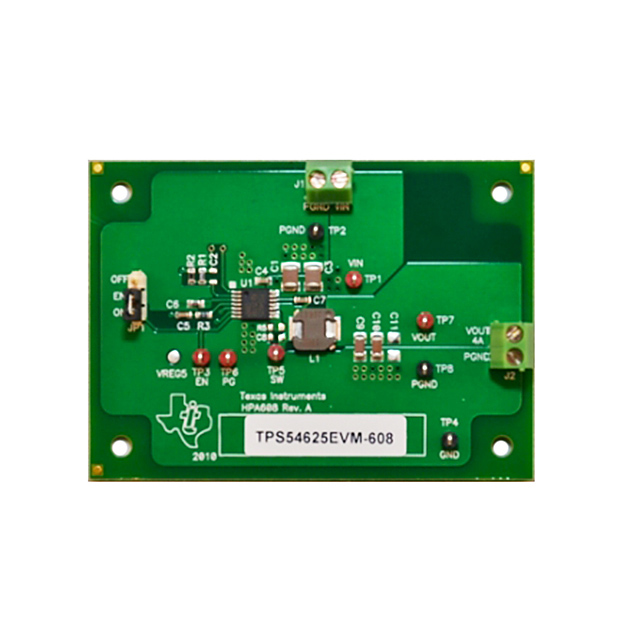

EVAL MODULE FOR TPS54625
| Part | Supplied Contents | Utilized IC / Part | Regulator Topology | Outputs and Type | Outputs and Type | Board Type | Frequency - Switching | Voltage - Output | Current - Output | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Function | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) [Max] | Voltage - Input (Min) [Min] | Synchronous Rectifier | Supplier Device Package | Topology | Output Type | Package / Case | Package / Case [y] | Package / Case [x] | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | TPS54625 | Buck | Non-Isolated | 1 | Fully Populated | 650 kHz | 1.05 V | 6.5 A | DC/DC Step Down | 18 V | 4.5 V | ||||||||||||||||
 Texas Instruments | 650 kHz | 6.5 A | Step-Down | 1 | Surface Mount | 18 V | 85 °C | -40 °C | 5.5 V | 4.5 V | 14-HTSSOP | Buck | Adjustable | 14-PowerTSSOP | 4.4 mm | 0.173 in | Positive |
