1393481 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN D-SUB PLUG 9P R/A PRESSFIT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Features | Connector Type | Mounting Type | Flange Feature | Number of Rows [custom] | Connector Style | Contact Material | Color | Current Rating (Amps) | Contact Finish | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Flange Feature | Shell Size, Connector Layout | Dielectric Material | Shell Size, Connector Layout | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

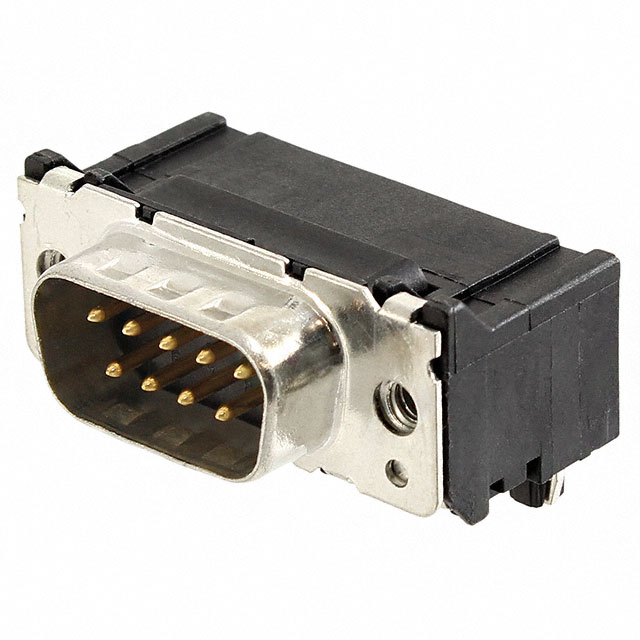

 TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Press-Fit | 1 | DE E | 9 | Board Lock Grounding Indents | Plug Male Pins | Right Angle Through Hole | Housing/Shell (M3) | 2 | D-Sub | ||||||||||||||
TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Press-Fit | 1 | DE E | 9 | Board Lock | Receptacle Female Sockets | Right Angle Through Hole | Housing/Shell (M3) | 2 | D-Sub | ||||||||||||||

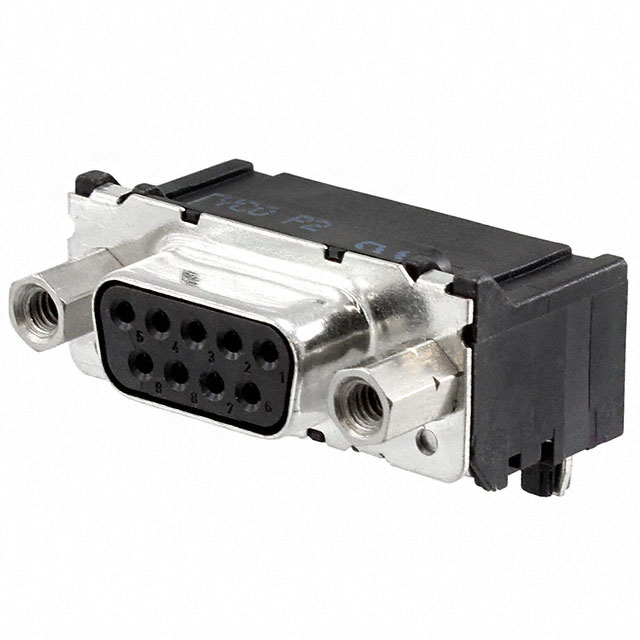

 TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Press-Fit | 1 | DE E | 9 | Board Lock | Receptacle Female Sockets | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 2 | D-Sub | Phosphor Bronze | Black | 2.2 A | Gold | 0.411 in | 10.43 mm | 30 Áin | 0.76 Ám | UL94 V-0 | |||||
TE Connectivity AMP Connectors | Signal | Solder | 1 | DE E | 9 | Receptacle Female Sockets | Right Angle Through Hole | Housing/Shell (Unthreaded) | 2 | D-Sub | |||||||||||||||||
 TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Press-Fit | 1 | DE E | 9 | Board Lock Grounding Indents | Plug Male Pins | Right Angle Through Hole | Housing/Shell | 2 | D-Sub | Phosphor Bronze | Black | Gold | 0.411 in | 10.43 mm | 30 Áin | 0.76 Ám | UL94 V-0 | 4-40 | |||||
TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Press-Fit | 15 | Board Lock Grounding Indents | Plug Male Pins | Right Angle Through Hole | Housing/Shell (M3) | 2 | D-Sub | 2 | |||||||||||||||

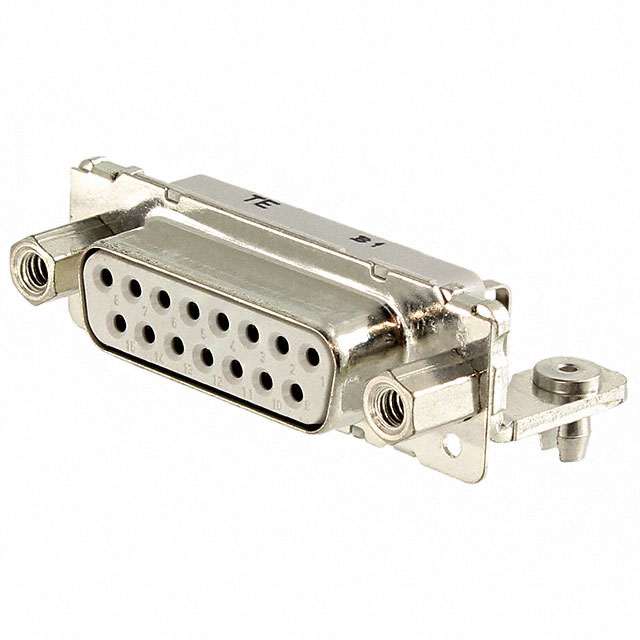

 TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Solder | 15 | Mounting Brackets | Receptacle Female Sockets | Right Angle Through Hole | Mating Side Female Screwlock (M3) | 2 | D-Sub | Black | 2.2 A | Gold | 2 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | |||||||||||
 TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Press-Fit | 1 | DE E | 9 | Board Lock | Receptacle Female Sockets | Right Angle Through Hole | Housing/Shell | 2 | D-Sub | Phosphor Bronze | Black | Gold | 0.411 in | 10.43 mm | 30 Áin | 0.76 Ám | UL94 V-0 | 4-40 | |||||
TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Solder | 25 | Board Lock Grounding Indents | Plug Male Pins | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 2 | D-Sub | Phosphor Bronze | Black | 2.2 A | Gold | 0.371 in | 9.43 mm | UL94 V-0 | Polybutylene Terephthalate (PBT) Polyester | B DB | 3 | ||||||
TE Connectivity AMP Connectors | -55 C | 125 °C | Signal | Press-Fit | 15 | Board Lock Grounding Indents | Plug Male Pins | Right Angle Through Hole | Housing/Shell | 2 | D-Sub | Phosphor Bronze | Black | Gold | 0.411 in | 10.43 mm | 30 Áin | 0.76 Ám | UL94 V-0 | 4-40 | 2 |
