H485 Series

Catalog

LED ASSEMBLY, RIGHT ANGLE, 1.8 MM LED, QUAD-LEVEL, 1 STATION, HE RED, DIFFUSED LENS, REVERSE POLARITY. / TRAY

Part	Lens Size [diameter]	Voltage Rating	Millicandela Rating	Color	Lens Type	Current	Wavelength - Peak	Configuration	Viewing Angle	Lens Style	Current	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
Bivar Inc. H485CHD-RP	1.8 mm Dia	2 V	5 mcd	Red (x 4)	Diffused	150 mA	635 nm	4 High	70 °	Round with Domed Top
Bivar Inc. H485CAD	1.8 mm Dia	2 V	20 mcd	Amber	Diffused	20 mA	605 nm	4 High	50 °	Round with Domed Top
Bivar Inc. H485CHHGGDL	1.8 mm Dia	2 V 2.1 V	2 mcd 2 mcd	Green (x 2) Red (x 2)	Diffused		568 nm 625 nm	4 High	50 °	Round with Domed Top	2mA Green 2mA Red

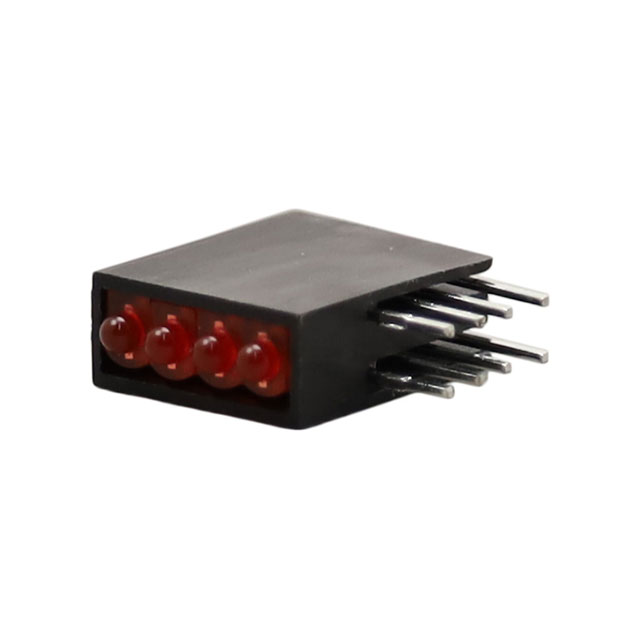

Bivar Inc. H485CHDL	1.8 mm Dia	2 V	2 mcd	Red (x 4)	Diffused	2 mA		4 High	50 °	Round with Domed Top
Bivar Inc. H485CYGGGD	1.8 mm Dia	2 V 2.1 V	10 mcd 20 mcd	Green (x 3) Yellow (x 1)	Diffused		568 nm 590 nm	4 High	50 °	Round with Domed Top	20mA Green 20mA Yellow

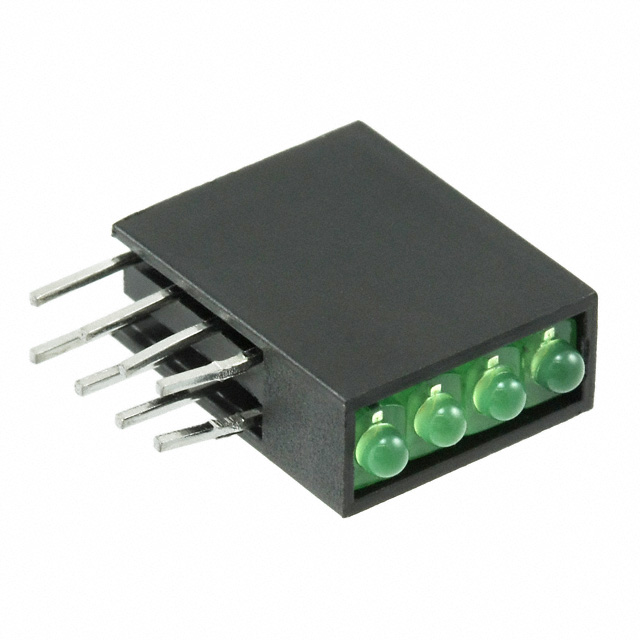

Bivar Inc. H485CGDL	1.8 mm Dia	2.1 V	2 mcd	Green	Diffused		568 nm	4 High	50 °	Round with Domed Top		Through Hole
Bivar Inc. H485CHYGAD	1.8 mm Dia	2 V 2 V 2 V 2.1 V		Amber (x 1) Green (x 1) Red (x 1) Yellow (x 1)	Diffused		568 nm 590 nm 605 nm 625 nm	4 High	50 °	Round with Domed Top	20mA Amber 20mA Green 20mA Red 20mA Yellow		10 mcd	20 mcd	20 mcd	20 mcd
Bivar Inc. H485CHGGGDL	1.8 mm Dia	2 V 2.1 V	2 mcd 2 mcd	Green (x 3) Red (x 1)	Diffused		568 nm 625 nm	4 High	50 °	Round with Domed Top	2mA Green 2mA Red

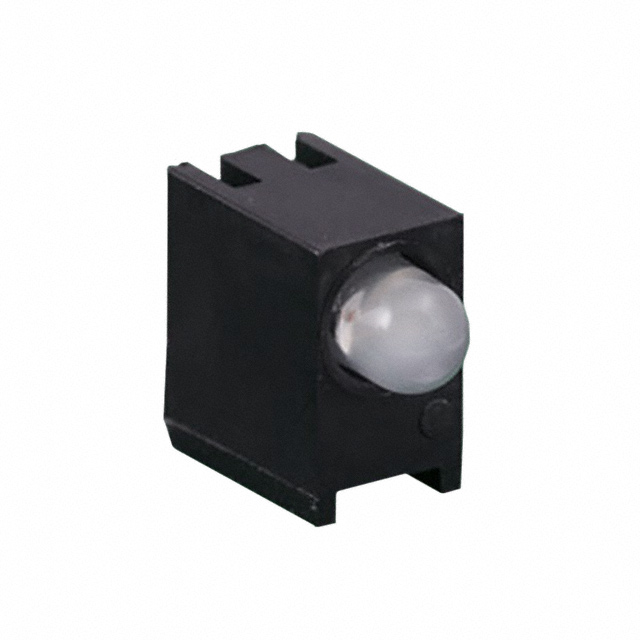

Bivar Inc. H485CGD-RP	1.8 mm Dia		5 mcd	Green	Diffused	150 mA	565 nm	4 High	70 °	Round with Domed Top
Bivar Inc. H485CHHGGD	1.8 mm Dia	2 V 2.1 V	20 mcd 20 mcd	Green (x 2) Red (x 2)	Diffused	20 mA 20 mA	568 nm 625 nm	4 High	50 °	Round with Domed Top
