ASMD-FWG3 Series
Manufacturer: Broadcom Limited
Beta
⌘K

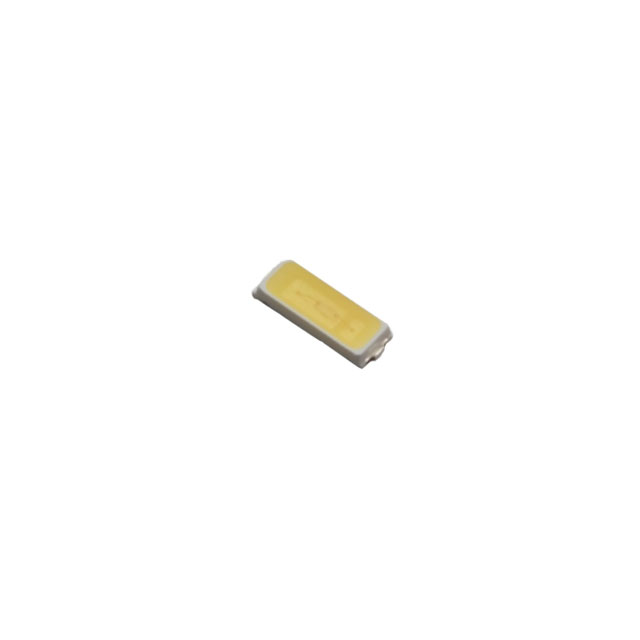

LED COOL WHITE 6200K 2SMD
| Part | Current - Test | Package / Case | Supplier Device Package | Viewing Angle | CRI (Color Rendering Index) | Current - Max [Max] | Color | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Lumens/Watt @ Current - Test | Thermal Resistance of Package | Flux @ 25°C, Current - Test [Min] | Flux @ 25°C, Current - Test | Flux @ 25°C, Current - Test [Max] | Mounting Type | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 60 mA | 1206 3014 Metric | 2-SMD | 120 ° | 80 | 90 mA | Cool White | 0.035 " | 0.9 mm | 3.02 V | 0.118 in | 1.4 mm | 0.055 in | 3 mm | 138 lm/W | 28 °C/W | 20 lm | 25 lm | 30 lm | Surface Mount | |
Broadcom Limited | 60 mA | 1206 3014 Metric | 2-SMD | 120 ° | 80 | 90 mA | Cool White | 0.035 " | 0.9 mm | 3.02 V | 0.118 in | 1.4 mm | 0.055 in | 3 mm | 138 lm/W | 28 °C/W | 20 lm | 25 lm | 30 lm | Surface Mount | 6800 K |
