315-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 24POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Color	Contact Type	Card Type	Features	Gender	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Termination	Contact Finish	Number of Positions/Bay/Row	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Read Out	Flange Feature [diameter]	Flange Feature [diameter]

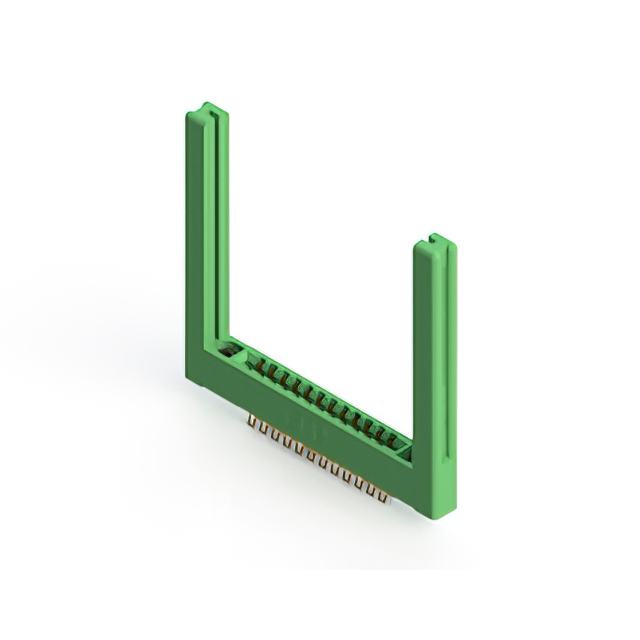

EDAC Inc. 315-024-555-258	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge	Card Extender Card Guides	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual
EDAC Inc. 315-024-521-204	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge		Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.156 "	3.96 mm

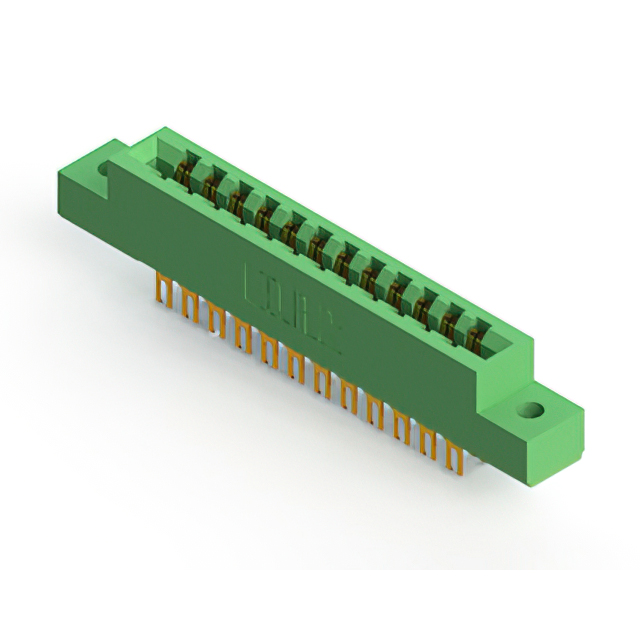

EDAC Inc. 315-024-500-202	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge		Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Panel Mount	Solder Eyelet(s)	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.128 "	3.25 mm

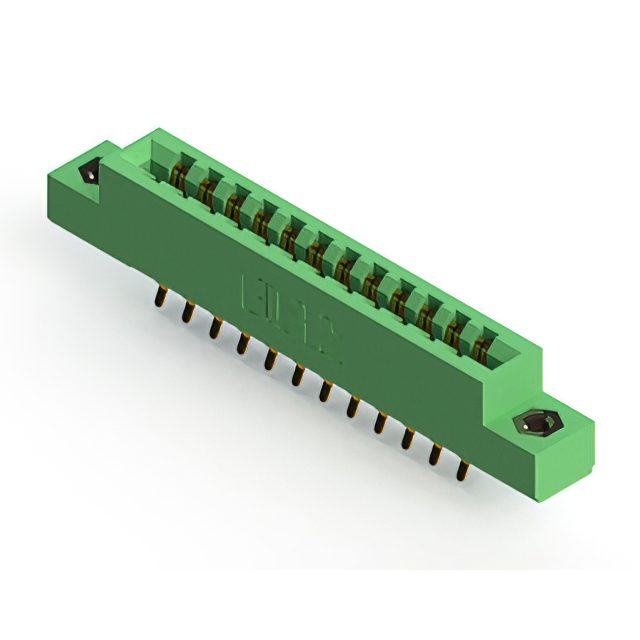

EDAC Inc. 315-024-556-208	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge	Card Extender	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual

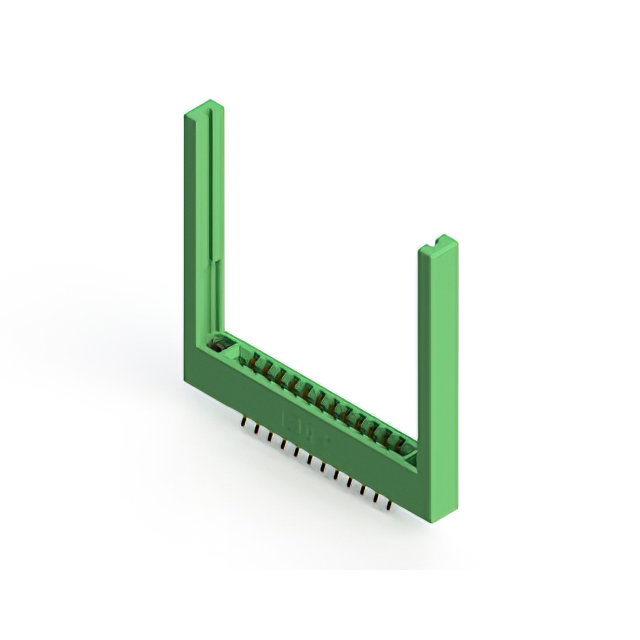

EDAC Inc. 315-024-556-268	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge	Card Extender Card Guides	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual

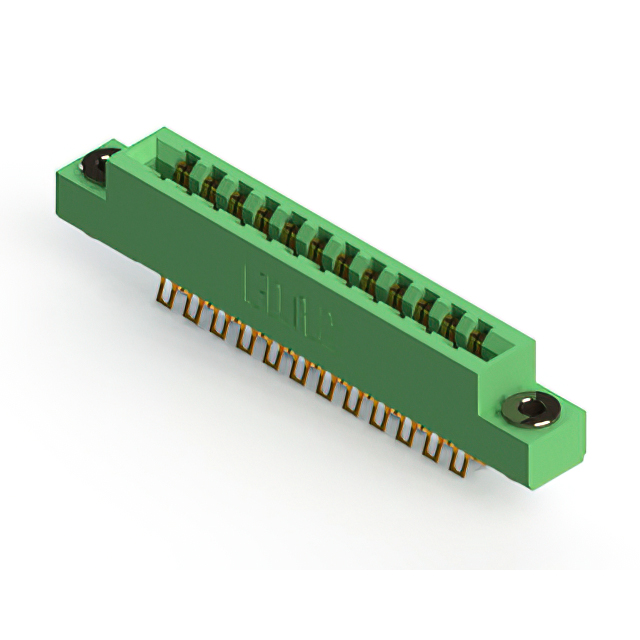

EDAC Inc. 315-024-555-203	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge	Card Extender	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	Board Edge Straddle Mount	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.116 "	2.95 mm

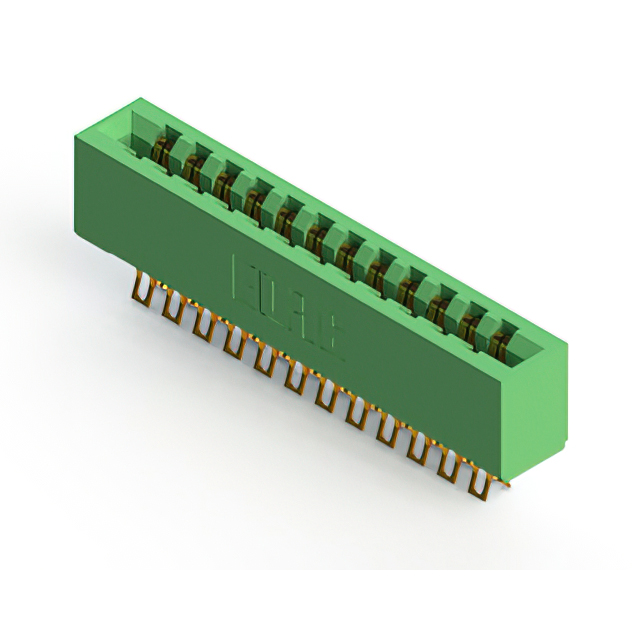

EDAC Inc. 315-024-555-201	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge	Card Extender	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin		Board Edge Straddle Mount	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual
EDAC Inc. 315-024-520-268	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge		Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual

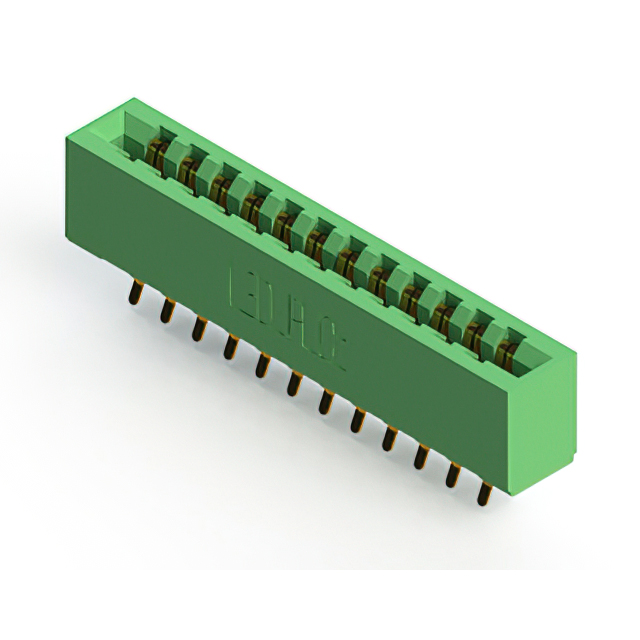

EDAC Inc. 315-024-556-201	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge	Card Extender	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin		Board Edge Straddle Mount	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual
EDAC Inc. 315-024-555-268	2	Polyester Thermoplastic	Green	Semi Bellows	Non Specified - Dual Edge	Card Extender Card Guides	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	Solder	Gold	12	24	-40 C	105 ░C	3.96 mm	0.156 in	Dual
