SQS401 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
MOSFET P-CH 40V 16A PPAK1212-8
| Part | Vgs (Max) | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Vgs(th) (Max) @ Id | Power Dissipation (Max) [Max] | Drain to Source Voltage (Vdss) | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Qualification | Technology | Gate Charge (Qg) (Max) @ Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 20 V | PowerPAK® 1212-8 | 16 A | 29 mOhm | Surface Mount | 1875 pF | 4.5 V 10 V | P-Channel | 2.5 V | 62.5 W | 40 V | PowerPAK® 1212-8 | -55 °C | 175 ░C | Automotive | AEC-Q101 | MOSFET (Metal Oxide) | 21.2 nC |

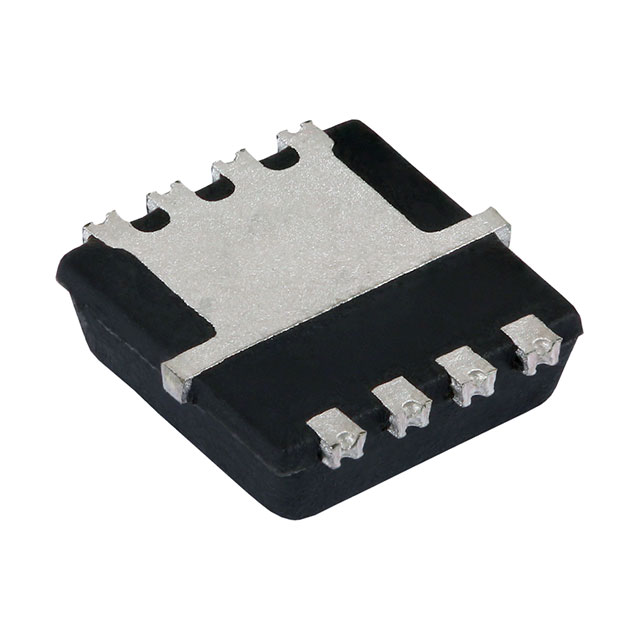

 Vishay General Semiconductor - Diodes Division | 20 V | PowerPAK® 1212-8W | 16 A | 29 mOhm | Surface Mount | 1875 pF | 4.5 V 10 V | P-Channel | 2.5 V | 62.5 W | 40 V | PowerPAK® 1212-8W | -55 °C | 175 ░C | Automotive | AEC-Q101 | MOSFET (Metal Oxide) | 21.2 nC |
