86204CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

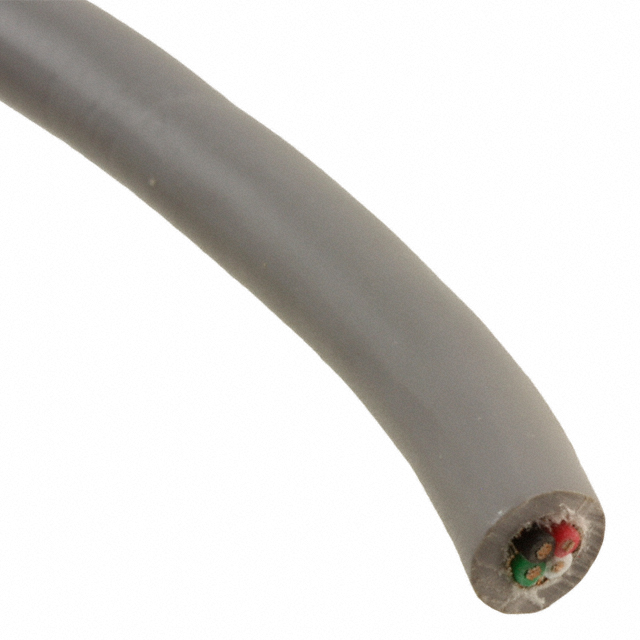

CABLE 4COND 24AWG SLATE SHLD
| Part | Shield Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Conductor Strand [diameter] | Conductor Strand [custom] | Ratings | Features | Conductor Material | Shield Type | Number of Conductors | Length [x] | Length [x] | Wire Gauge | Jacket (Insulation) Material | Voltage | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | Slate | 0.04 in | 1.016 mm | 90 % 100 % | 34 AWG | 10 | ISO 10993 UL Style 2661 | Biological Compatibility | Copper Tinned | Braid Foil | 4 | 500 ' | 152.4 m | 24 AWG | Poly-Vinyl Chloride (PVC) | 300 V | Poly-Vinyl Chloride (PVC) | 0.211 in | 5.36 mm | Multi-Conductor | ||
ALPHA WIRE | Aluminum Copper Tinned | Slate | 0.04 in | 1.016 mm | 90 % 100 % | 34 AWG | 10 | ISO 10993 UL Style 2661 | Biological Compatibility | Copper Tinned | Braid Foil | 4 | 24 AWG | Poly-Vinyl Chloride (PVC) | 300 V | Poly-Vinyl Chloride (PVC) | 0.211 in | 5.36 mm | Multi-Conductor | 1000 ft | 304.8 m |
