FGS.0F Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG FMALE 2POS GOLD CRIMP
| Part | Shell Size - Insert | Material Flammability Rating | Number of Positions | Contact Material | Connector Type | Fastening Type | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Shell Material | Cable Opening | Cable Opening | Insert Material | Contact Finish - Mating | Ingress Protection | Orientation | Current Rating (Amps) | Applications | Shell Finish | Color | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

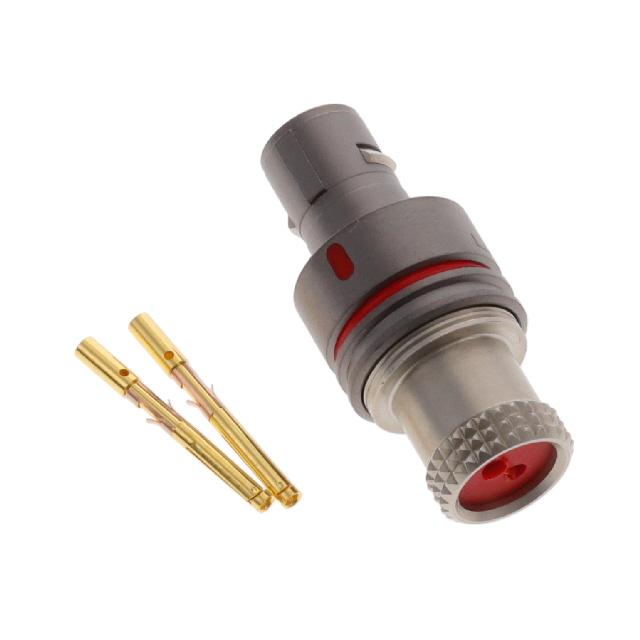

 LEMO | 302 | UL94 V-0 | 2 | Bronze | Plug Female Sockets | Push-Pull | Shielded | -15 °C | 200 °C | Crimp | Aluminum Alloy | 0.354 in | 9 mm | Polyetheretherketone (PEEK) | Gold | IP67 - Dust Tight Waterproof | S | 10 A | Aerospace | Nickel | Gray | Free Hanging (In-Line) | 1.5 Ám | 59 Áin | Metal |
LEMO | 305 | UL94 V-0 | 5 | Bronze | Plug Female Sockets | Push-Pull | Shielded | -15 °C | 200 °C | Crimp | Aluminum Alloy | 0.354 in | 9 mm | Polyetheretherketone (PEEK) | Gold | IP67 - Dust Tight Waterproof | S | 6.5 A | Aerospace | Nickel | Gray | Free Hanging (In-Line) | 1.5 Ám | 59 Áin | Metal |
