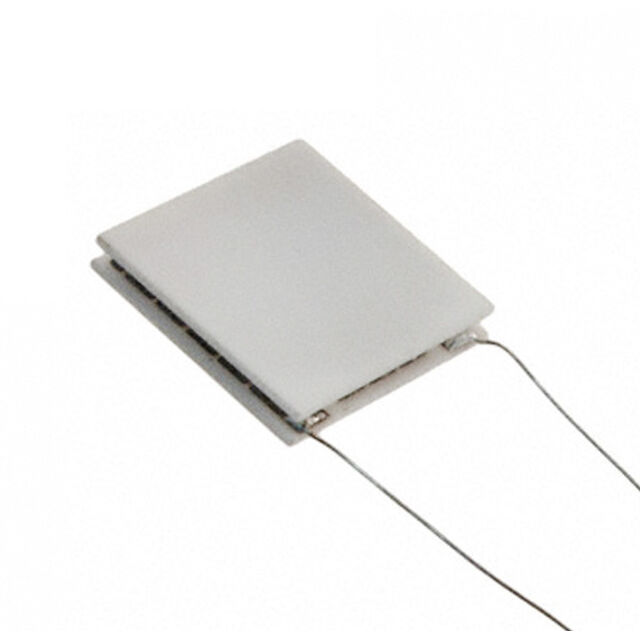

430548 Series

Catalog

PELTIR ET20,68,F1A,1313,11,W2.25

Part	Features	Number of Stages	Resistance	Operating Temperature	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Delta Tmax @ Th	Height [z]	Qmax @ Th

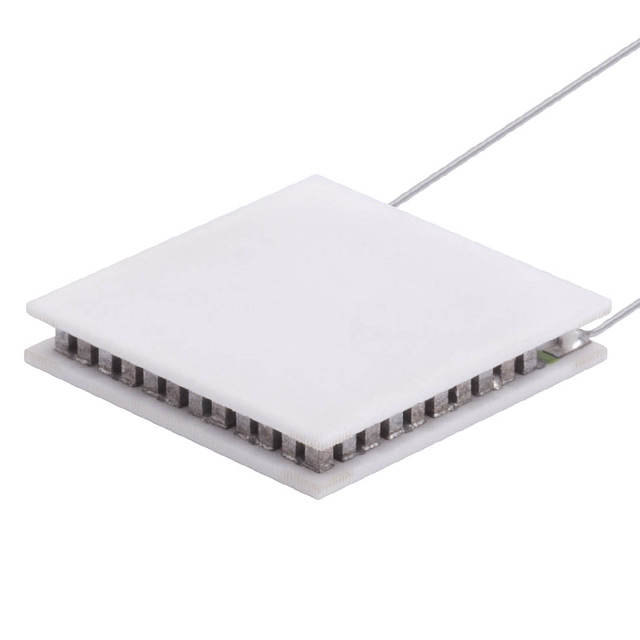

Laird Thermal Systems, Inc. 430548-502	Lead Wires Non-Sealed	1	3.55 Ohms	80 °C	13.2 mm	13.2 mm	2 A	67 °C	2.18 mm	9.3 W
Laird Thermal Systems, Inc. 430548-503	Lead Wires Non-Sealed	1	3.55 Ohms	80 °C	13.2 mm	13.2 mm	2 A	67 °C	2.54 mm	9.3 W

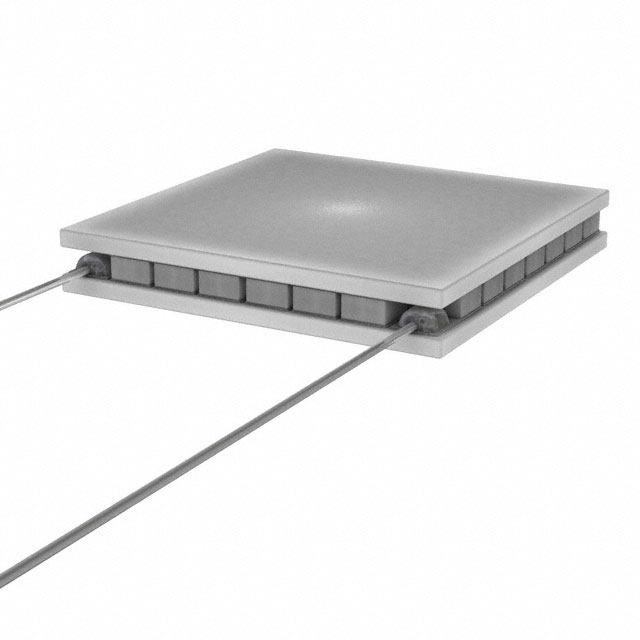

Laird Thermal Systems, Inc. 430548-508	Lead Wires Sealed - Epoxy	1	3.55 Ohms	80 °C	13.2 mm	13.2 mm	2 A	67 °C	2.18 mm	9.3 W
