1337535 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

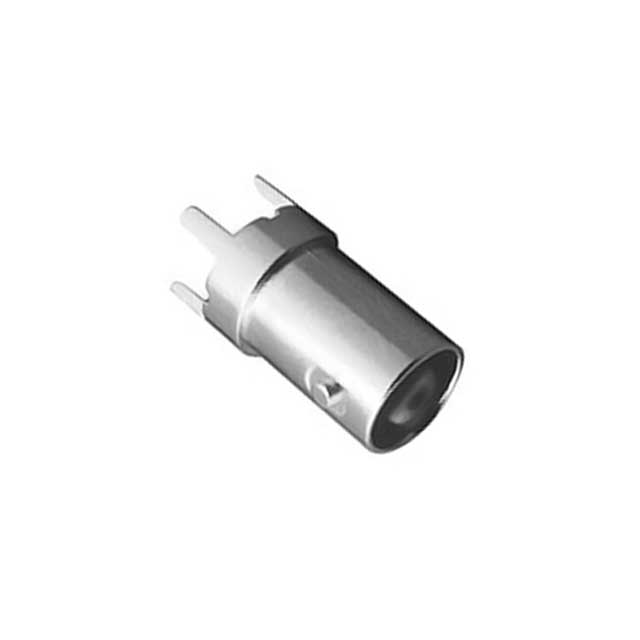

CONN BNC JACK STR 50 OHM PCB
| Part | Mating Cycles | Body Finish | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Body Material | Connector Style | Number of Ports | Fastening Type | Mounting Type | Shield Termination | Contact Termination | Housing Color | Impedance | Center Contact Material | Connector Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 | Nickel | 500 V | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | BNC | 1 | Bayonet Lock | Through Hole | Solder | Solder | Silver | 50 Ohms | Brass | Female Socket Jack | 4 GHz |
