HFW13S Series

Catalog

CONN CIC VERT 13POS 1MM SMD

Part	Housing Color	Mating Cycles	Contact Material	Housing Material	Contact Finish	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Termination	Connector/Contact Type	Cable End Type	FFC, FCB Thickness	Pitch	Pitch	Number of Positions	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) HFW13S-6STE1LF	Black	5	Phosphor Bronze	Glass Filled Nylon 6T Polyamide (PA6T)	Tin	0.209 in	5.3 mm	UL94 V-0	CIC	-55 C	85 °C	100 V	Surface Mount	Solder	Contacts Vertical - 1 Sided	Tapered	0.3 mm	1 mm	0.039 in	13
Amphenol ICC (FCI) HFW13S-2STE1HLF	Black	30	Phosphor Bronze	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Tin	0.209 in	5.3 mm	UL94 V-0	FFC FPC	-55 C	85 °C	100 V	Surface Mount	Solder	Contacts Vertical - 1 Sided	Straight Tapered		1 mm	0.039 in	13	0.3 mm	0.33 mm

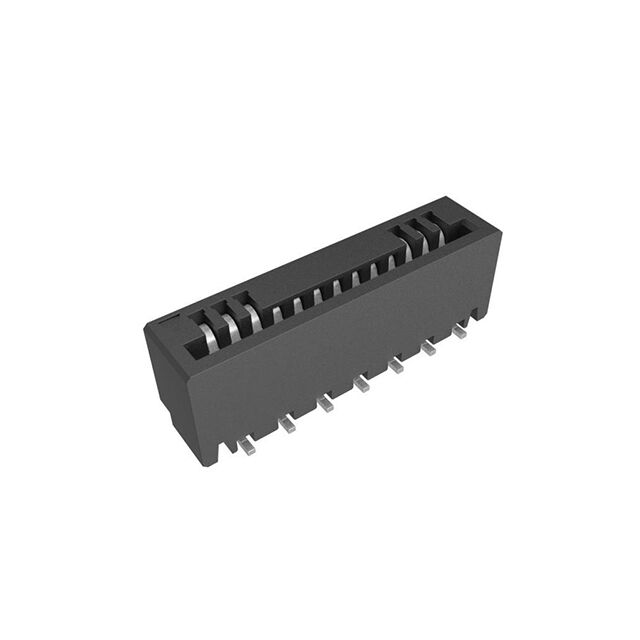

Amphenol ICC (FCI) HFW13S-4STZE1HLF	Black		Phosphor Bronze	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Tin	0.209 in	5.3 mm	UL94 V-0	FFC FPC			100 V	Surface Mount	Solder	Contacts Vertical - 1 Sided	Straight Tapered		1 mm	0.039 in	13	0.3 mm	0.33 mm
