140791 Series

Catalog

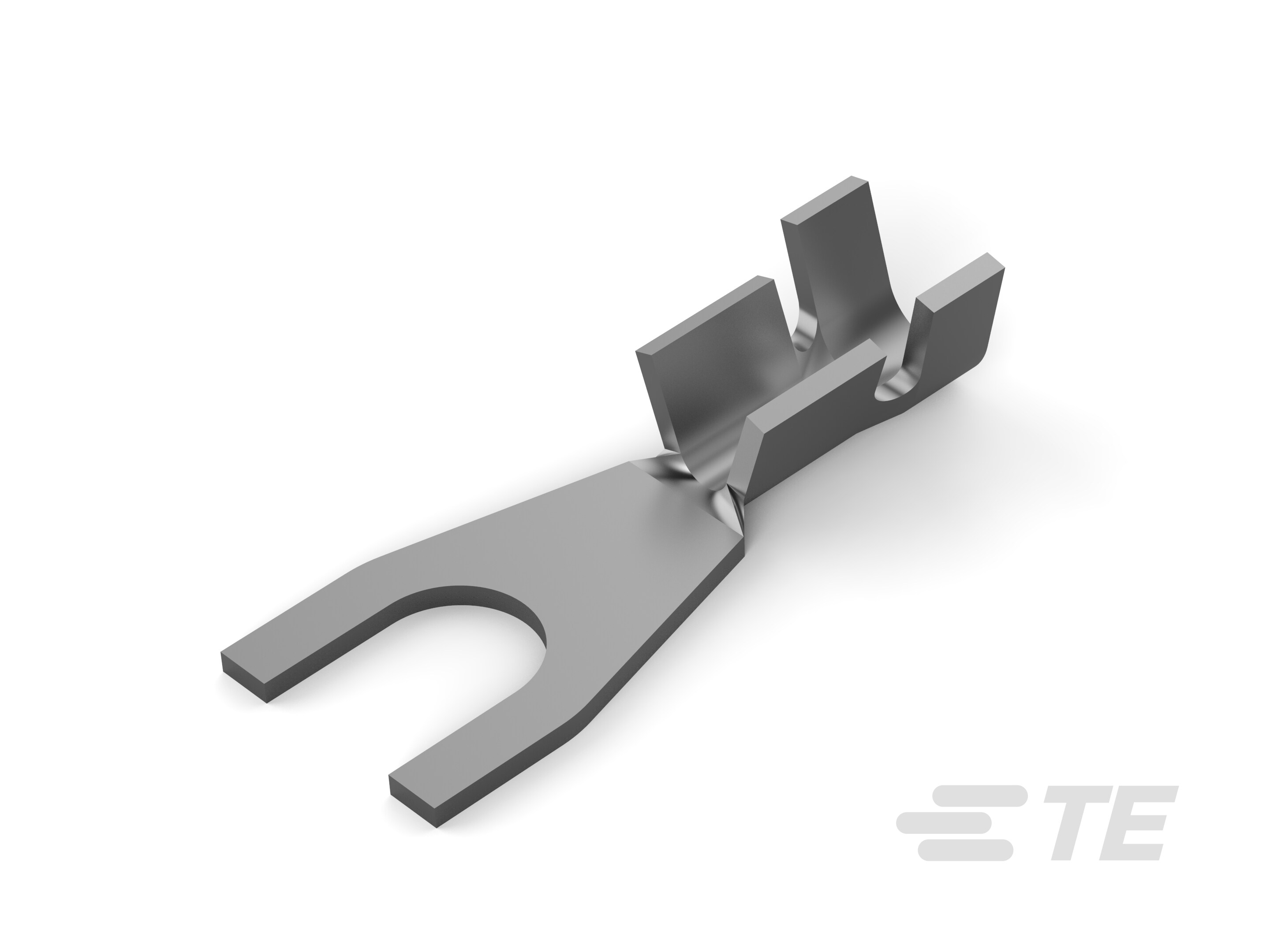

WIRE TERMINAL 18-14 AWG 0.24 X .394 TPBR

Part	Length - Termination [x]	Length - Termination [x]	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Finish

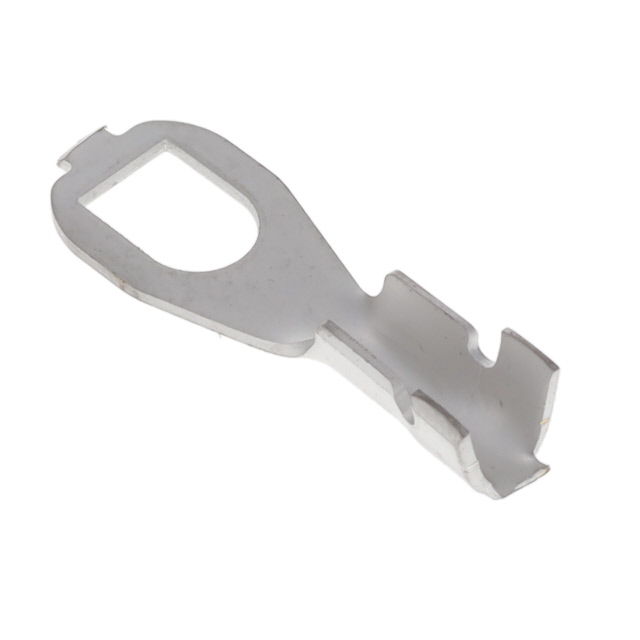

TE Connectivity AMP Connectors 140791-2	7.49 mm	0.295 in	4.34 mm	0.171 in	0.137 in	0.098 in	3.48 mm	2.5 mm	7.92 mm	0.312 in	Free Hanging (In-Line)	18 AWG	13 AWG	Crimp	Non-Insulated	7.49 mm	0.295 in	Brass	Standard	0.795 in	20.19 mm	Tin
