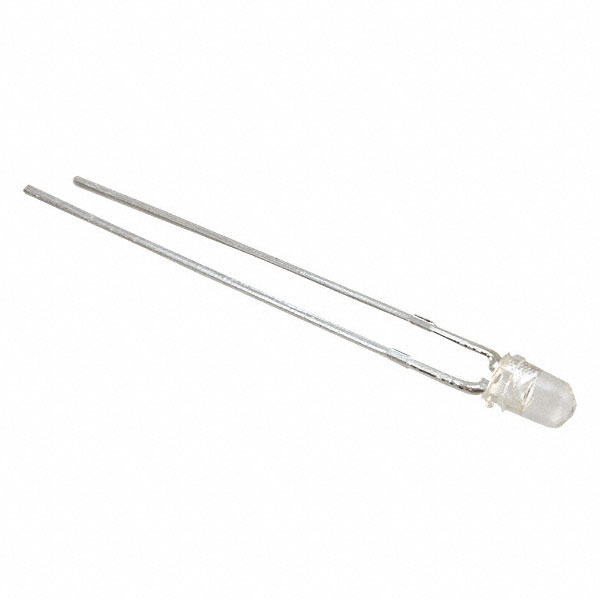

WP7104 Series

Catalog

LED 2MM ROUND COOL WHITE

Part	Package / Case	Wavelength	Orientation	Current - DC Forward (If) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Radiant Intensity (Ie) Min @ If [Min]	Viewing Angle	Mounting Type	Color	Size / Dimension [diameter]	Lens Style	Current - Test	Lens Color	Lens Size	Lens Size	Configuration	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Supplier Device Package	Millicandela Rating	Wavelength - Peak	Current	Lens Type
Kingbright WP7104-CMM64
Kingbright WP7104F3C	T-1	940 nm	Top View	50 mA	85 C	-40 ¯C	Infrared (IR)	7 mW/sr	34 °	Through Hole

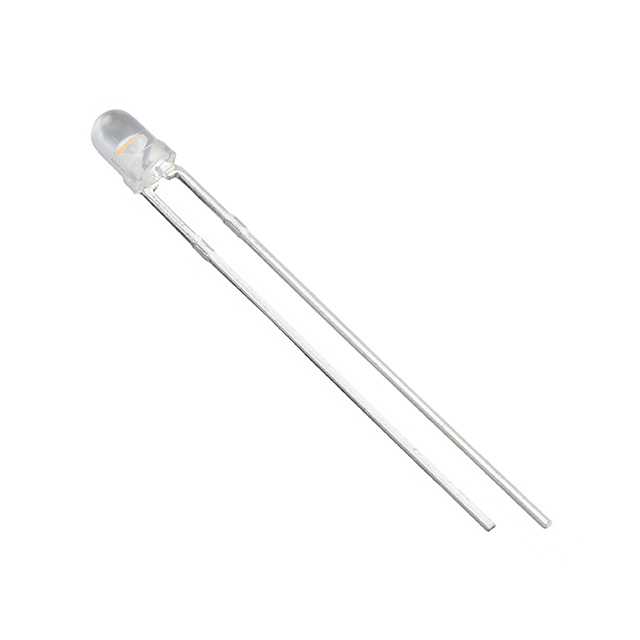

Kingbright WP7104VRVCW/A	Radial								40 °	Through Hole	Pink	2.9 mm	Round with Domed Top	20 mA	White	3 mm	T-1	Standard	5.9 mm	3.3 V	Diffused	T-1 (3mm)	1000 mcd

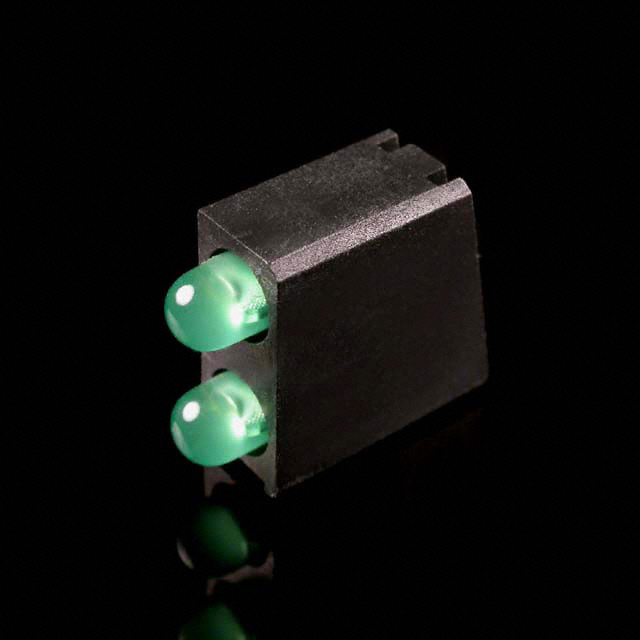

Kingbright WP7104ALUP/2GD-0L									40 °	Right Angle Surface Mount	Green (x 2)		Round with Domed Top			3 mm	T-1	2 High					22.5 mcd	568 nm	20 mA	Diffused Tinted
Kingbright WP7104VR41C-C1
Kingbright WP7104PR51C/A	Radial								34 °	Through Hole	Cyan	2.9 mm	Round with Domed Top	20 mA	Colorless	3 mm	T-1	Standard	5.9 mm	3.3 V	Clear	T-1	1600 mcd
