090814 Series
Manufacturer: Molex
Catalog
CONN HEADER SMD 6POS 1.27MM

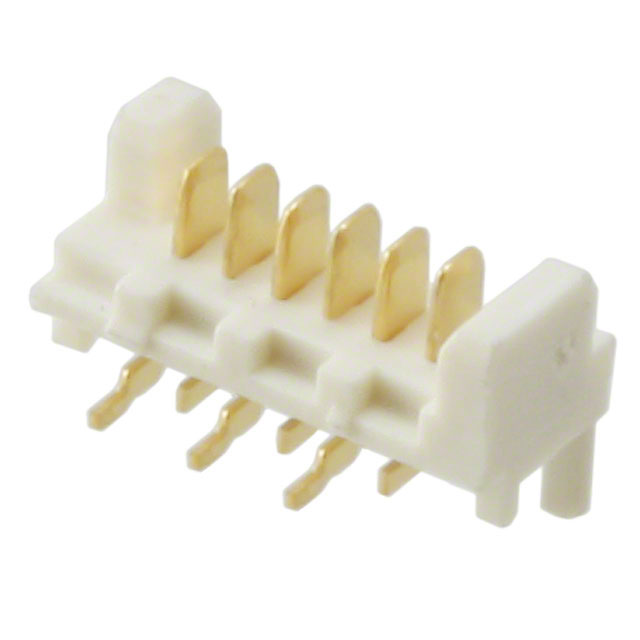

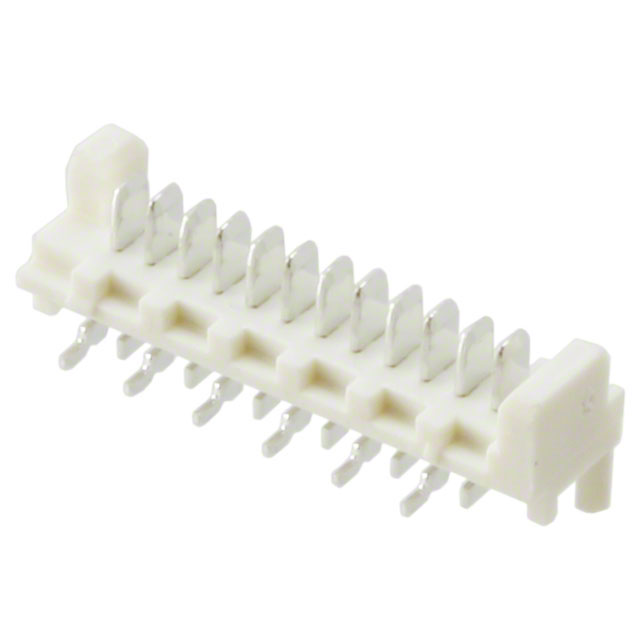

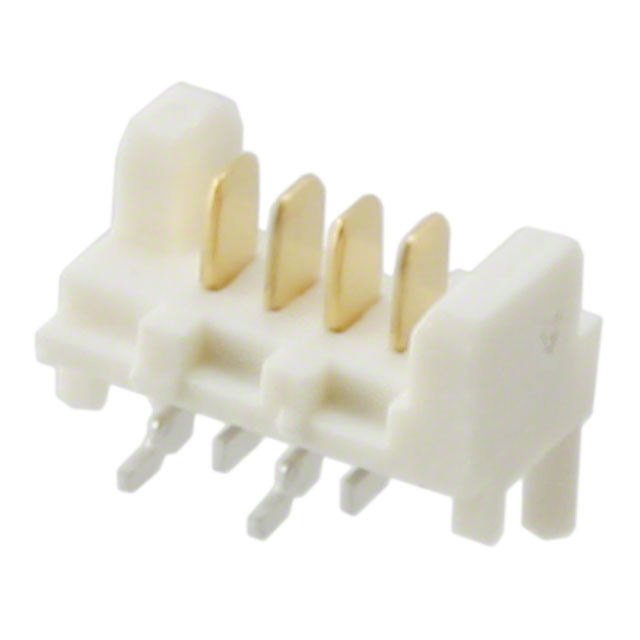

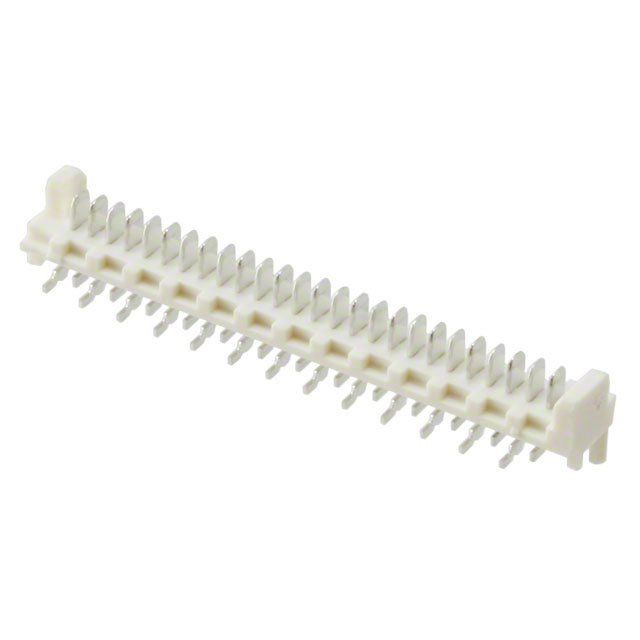

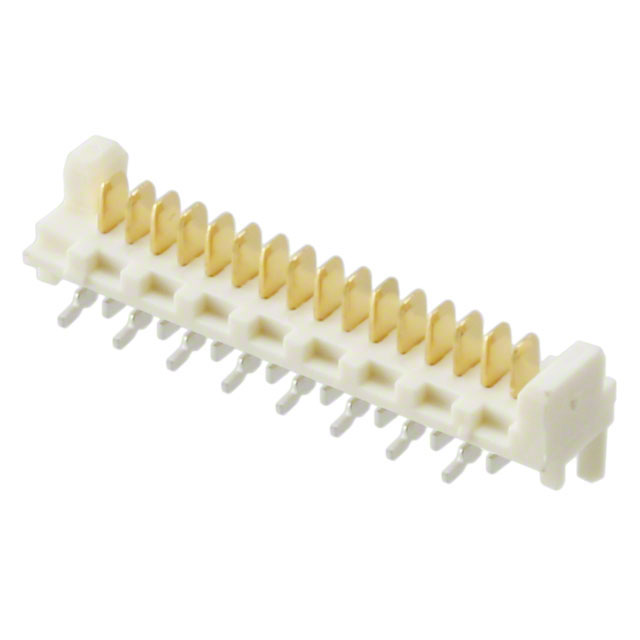

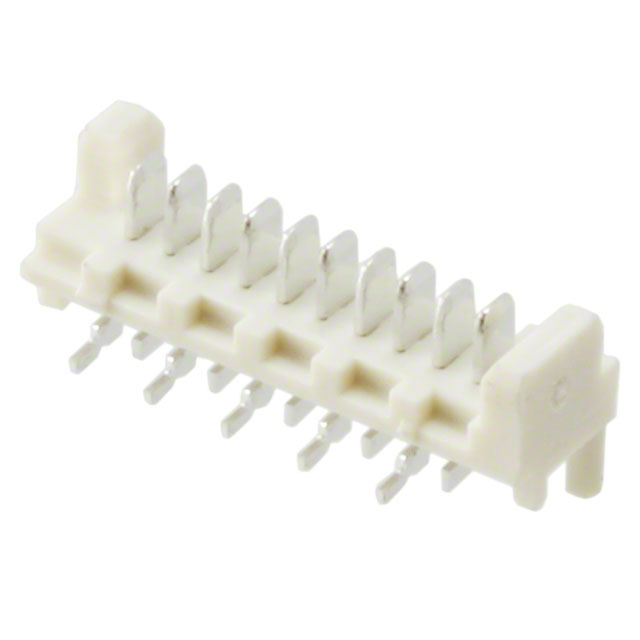

| Part | Connector Type | Contact Shape | Current Rating (Amps) | Shrouding | Style | Material Flammability Rating | Contact Length - Mating [x] | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Material | Termination | Number of Positions | Voltage Rating | Number of Positions Loaded | Contact Finish - Post | Number of Rows | Contact Type | Insulation Material | Insulation Color | Fastening Type | Insulation Height [z] | Insulation Height [z] | Mounting Type | Insulation Height | Insulation Height | Features | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 118.1 µin | 3 µm | Automotive General Purpose Industrial Medical | Brass | Solder | 6 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | 6.4 mm | 0.252 in | Surface Mount | ||||||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 118.1 µin | 3 µm | Automotive General Purpose Industrial Medical | Brass | Solder | 12 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | Surface Mount | 0.161 in | 4.1 mm | Board Guide | |||||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 0.76 Ám | Automotive General Purpose Industrial Medical | Brass | Solder | 26 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | Surface Mount | 0.161 in | 4.1 mm | 30 Áin | Gold | 3 µm | 118.1 µin | |||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 118.1 µin | 3 µm | Automotive General Purpose Industrial Medical | Brass | Solder | 4 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | 6.4 mm | 0.252 in | Surface Mount | Board Guide | |||||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 118.1 µin | 3 µm | Automotive General Purpose Industrial Medical | Brass | Solder | 26 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | Surface Mount | 0.161 in | 4.1 mm | Board Guide | |||||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 0.76 Ám | Automotive General Purpose Industrial Medical | Brass | Solder | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | 6.4 mm | 0.252 in | Surface Mount | Board Guide | 30 Áin | Gold | 3 µm | 118.1 µin | 16 | ||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 118.1 µin | 3 µm | Automotive General Purpose Industrial Medical | Brass | Solder | 10 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | Surface Mount | 0.161 in | 4.1 mm | Board Guide | |||||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 118.1 µin | 3 µm | Automotive General Purpose Industrial Medical | Brass | Solder | 14 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | 6.4 mm | 0.252 in | Surface Mount | Board Guide | |||||||
Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 0.76 Ám | Automotive General Purpose Industrial Medical | Brass | Solder | 10 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | 6.4 mm | 0.252 in | Surface Mount | 30 Áin | Gold | 3 µm | 118.1 µin | |||||
 Molex | Header | Rectangular | 1.2 A | Shrouded - 2 Wall | Board to Cable/Wire | UL94 V-0 | 0.085 " | 2.15 mm | 0.05 in | 1.27 mm | 118.1 µin | 3 µm | Automotive General Purpose Industrial Medical | Brass | Solder | 18 | 250 VDC | All | Tin | 1 | Male Blade | Glass Filled Nylon Polyamide (PA) | Natural | Push-Pull | Surface Mount | 0.161 in | 4.1 mm | Board Guide |
