052435 Series

Manufacturer: Molex

Catalog

CONN FFC FPC TOP 23POS 0.5MM R/A

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Contact Material	Pitch [x]	Pitch [x]	Current Rating (Amps)	Connector/Contact Type	Locking Feature	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Cable End Type	Material Flammability Rating	Housing Material	Contact Finish	Termination	Height Above Board	Height Above Board	FFC, FCB Thickness	Flat Flex Type	Actuator Material	Number of Positions	Mounting Type	Housing Color	Actuator Color
Molex 0524352372	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V	39.4 Áin	1 Ám	Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Tin Bismuth	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	23	Surface Mount Right Angle
Molex 0524352391	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V			Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Tin-Lead	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	23	Surface Mount Right Angle

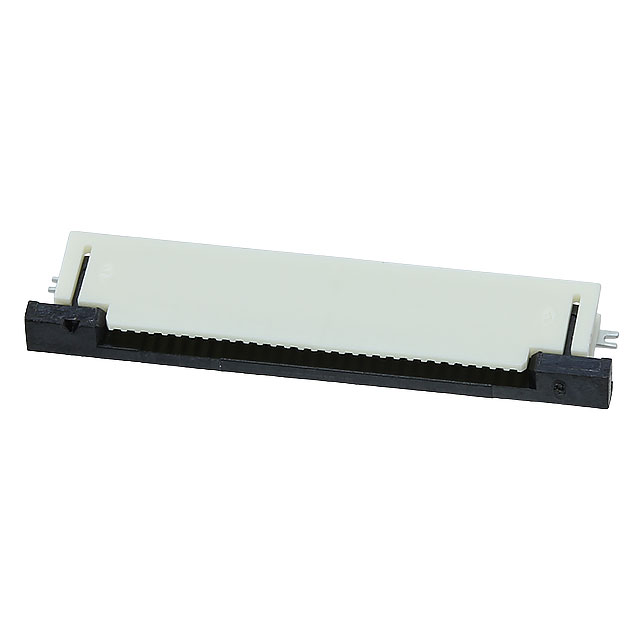

Molex 0524353033	Solder Retention Zero Insertion Force (ZIF)	85 °C	-20 C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V	39.4 Áin	1 Ám	Tapered	UL94 V-0	Polyamide (PA) Nylon Glass Filled	Tin Bismuth	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	30	Surface Mount Right Angle	White	Black
Molex 0524352633	Solder Retention Zero Insertion Force (ZIF)	85 °C	-20 C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V	39.4 Áin	1 Ám	Tapered	UL94 V-0	Polyamide (PA) Nylon Glass Filled	Tin Bismuth	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	26	Surface Mount Right Angle	White	Black

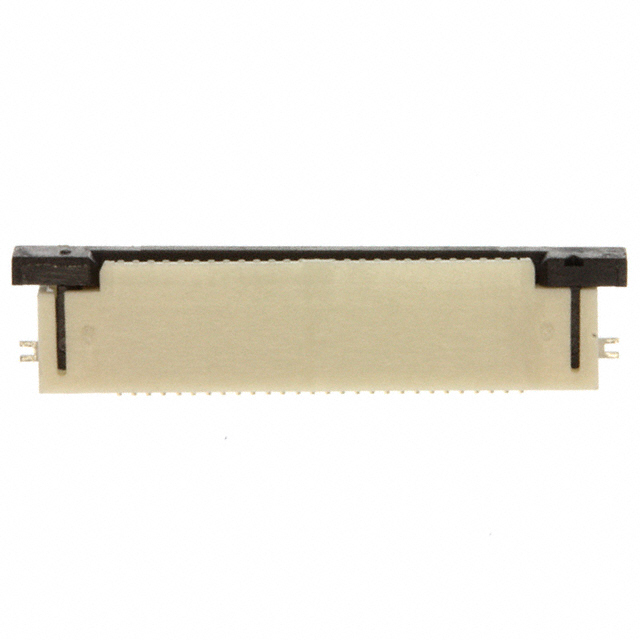

Molex 0524352872	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V	39.4 Áin	1 Ám	Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Tin Bismuth	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	28	Surface Mount Right Angle
Molex 0524352891	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V			Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Tin-Lead	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	28	Surface Mount Right Angle
Molex 0524353071	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V			Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Gold	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	30	Surface Mount Right Angle
Molex 0524352472	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V	39.4 Áin	1 Ám	Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Tin Bismuth	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	24	Surface Mount Right Angle

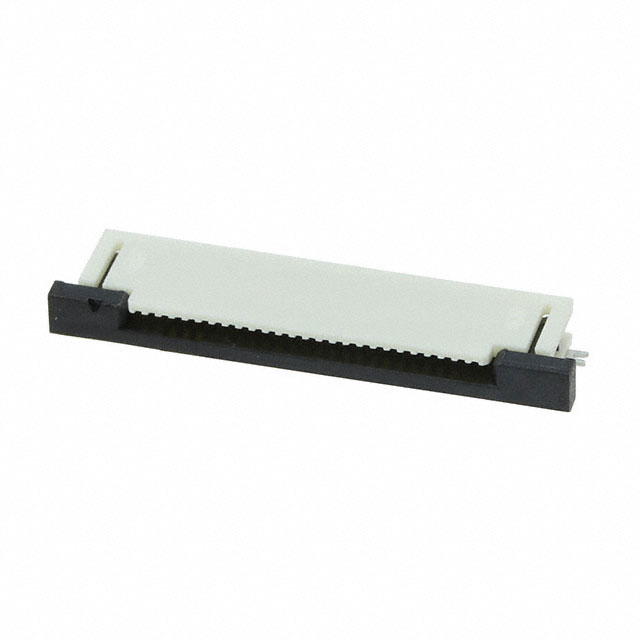

Molex 0524352671	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V			Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Gold	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	26	Surface Mount Right Angle
Molex 0524352491	Solder Retention Zero Insertion Force (ZIF)	85 °C	-40 °C	20	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Contacts Top	Slide Lock	50 V			Straight Tapered	UL94 V-0	Polyamide (PA46) Nylon 4/6	Tin-Lead	Solder	0.079 in	2 mm	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS)	24	Surface Mount Right Angle
