P10 Series

Catalog

RING TONGUE TERMINAL, M5, #10, 10 AWG, 6 MM², P-RHT6 SERIES

Part	Contact Material	Length - Overall [x]	Length - Overall [x]	Terminal Type	Thickness	Thickness	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Features	Mounting Type	Contact Finish	Termination	Width - Outer Edges	Width - Outer Edges	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Tongue Inside Opening [x]	Tongue Inside Opening	Length - Overall	Length - Overall

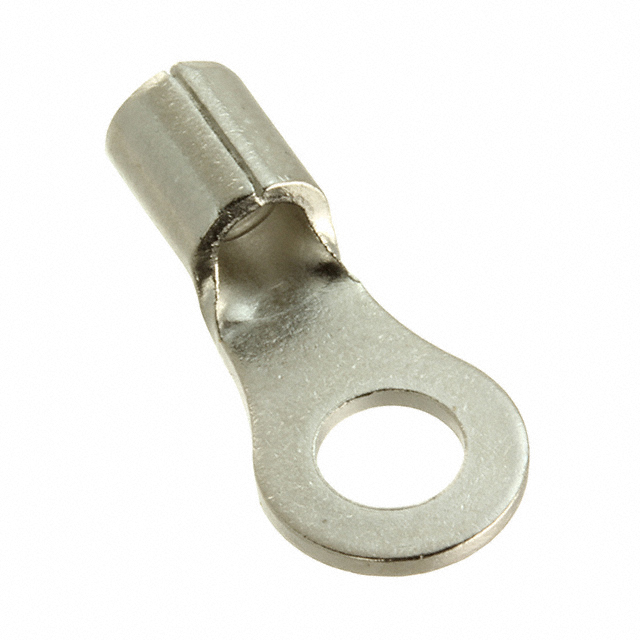

Panduit Corp P10-10RHT6-L	Copper	0.81 "	20.57 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	12 AWG	9.65 mm	0.38 in	10 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Nickel	Crimp

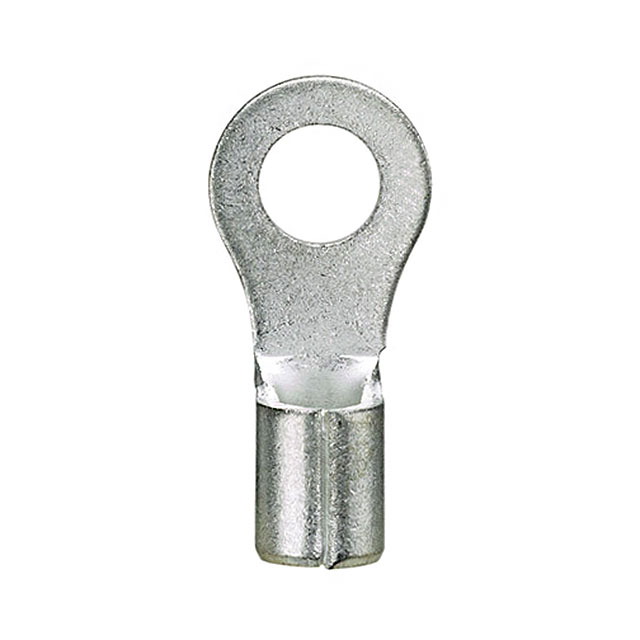

Panduit Corp P10-10R-L	Copper	0.81 "	20.57 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	14 AWG	9.65 mm	0.38 in	10 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp
Panduit Corp P10-8R-L	Copper	0.78 in	19.81 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	12 AWG			8 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp	7.87 mm	0.31 in

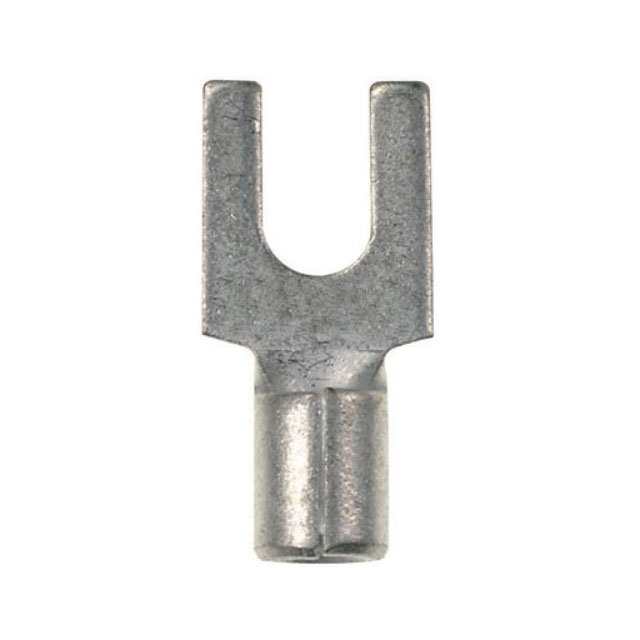

Panduit Corp P10-8F-D	Copper	0.78 in	19.81 mm	Standard			Non-Insulated	10 AWG	12 AWG			8 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp			0.17 in	4.32 mm	0.37 in	9.4 mm
Panduit Corp P10-6LF-D	Copper			Snap Spring			Non-Insulated	10 AWG	14 AWG			6 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp							0.14 in	3.56 mm	0.77 in	19.56 mm
Panduit Corp P10-38R-L	Copper	1.05 in	26.67 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	12 AWG	14.73 mm	0.58 in	0.375 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp
Panduit Corp P10-6R-L	Copper	0.78 in	19.81 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	12 AWG			6 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp	7.87 mm	0.31 in
Panduit Corp P10-14RHT6-D	Copper	0.96 in	24.38 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	12 AWG			0.25 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Nickel	Crimp	13.46 mm	0.53 in
Panduit Corp P10-10R-E	Copper	0.81 "	20.57 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	14 AWG	9.65 mm	0.38 in	10 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp

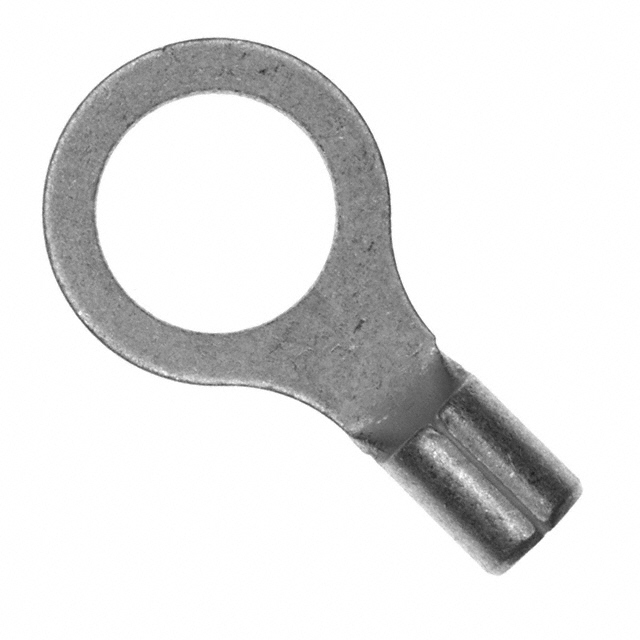

Panduit Corp P10-38R-D	Copper	1.05 in	26.67 mm	Circular	0.04 in	1.02 mm	Non-Insulated	10 AWG	12 AWG	14.73 mm	0.58 in	0.375 Stud	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Tin	Crimp
