073403 Series

Manufacturer: Molex

Catalog

CONN FAKRA PLUG STR 50 OHM CRIMP

Part	Housing Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Center Contact Material	Mounting Type	Voltage Rating	Impedance	Shield Termination	Connector Style	Body Material	Cable Group	Contact Termination	Mating Cycles	Number of Ports	Center Contact Plating	Body Finish	Includes	Dielectric Material	Frequency - Max [Max]	Ingress Protection
Molex 0734036267	Violet	Code H	-40 °C	105 ░C	Latch Lock	Female Socket Plug	Phosphor Bronze	Free Hanging (In-Line)	335 V	50 Ohms	Crimp	Fakra II SMB	Brass	RG-316	Crimp Solder	50	1	Gold	Nickel	1 Connector 1 Contact 1 Ferrule 1 Shroud	Polypropylene (PP)	6000 MHz

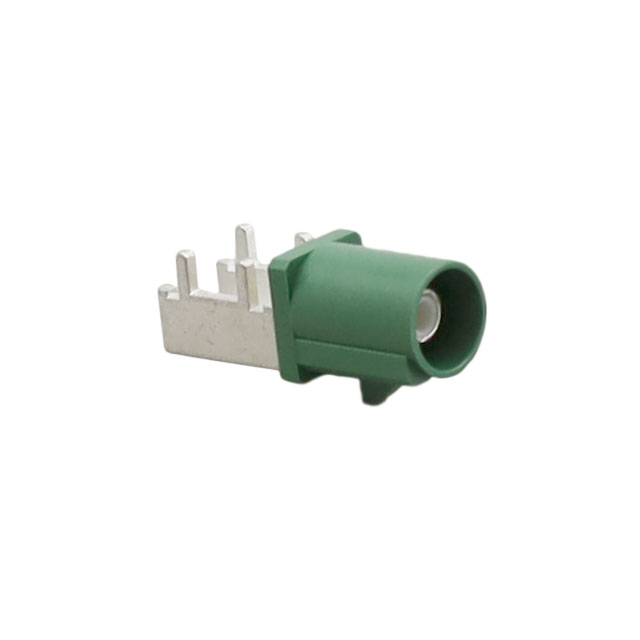

Molex 0734035354	Green	Code E			Locking Ramp	Jack Male Pin	Brass	Through Hole Right Angle		50 Ohms	Solder	Fakra SMB	Zinc Alloy		Solder		1	Gold	Tin		Polytetrafluoroethylene (PTFE)
Molex 0734030343
Molex 0734035740
Molex 0734036924	Green	Code E	-40 °C	105 ░C	Latch Lock	Female Socket Plug	Phosphor Bronze	Free Hanging (In-Line)	335 V	50 Ohms	Crimp	Fakra SMB	Brass	316 RG-174	Crimp	50	1	Gold	Nickel		Polypropylene (PP)	6000 MHz
Molex 0734036280	Black	Code A	-40 °C	105 ░C	Locking Ramp	Jack Male Pin	Brass	Free Hanging (In-Line)	335 V	50 Ohms	Crimp	Fakra II SMB	Brass	188 316 RG-174	Crimp Solder	50	1	Gold	Nickel	1 Connector 1 Contact 1 Ferrule 1 Shroud	Polypropylene (PP)	6000 MHz
Molex 0734036260	Black	Code A	-40 °C	105 ░C	Latch Lock	Female Socket Plug	Phosphor Bronze	Free Hanging (In-Line)	335 V	50 Ohms	Crimp	Fakra II SMB	Brass	RG-316	Crimp Solder	50	1	Gold	Nickel	1 Connector 1 Contact 1 Ferrule 1 Shroud	Polypropylene (PP)	6000 MHz
Molex 0734036261	Cream	Code B	-40 °C	105 ░C	Latch Lock	Female Socket Plug	Phosphor Bronze	Free Hanging (In-Line)	335 V	50 Ohms	Crimp	Fakra II SMB	Brass	RG-316	Crimp Solder	50	1	Gold	Nickel	1 Connector 1 Contact 1 Ferrule 1 Shroud	Polypropylene (PP)	6000 MHz
Molex 0734036282	Blue	Code C	-40 °C	105 ░C	Locking Ramp	Jack Male Pin	Brass	Free Hanging (In-Line)	335 V	50 Ohms	Crimp	Fakra II SMB	Brass	188 316 RG-174	Crimp Solder	50	1	Gold	Nickel	1 Connector 1 Contact 1 Ferrule 1 Shroud	Polypropylene (PP)	6000 MHz

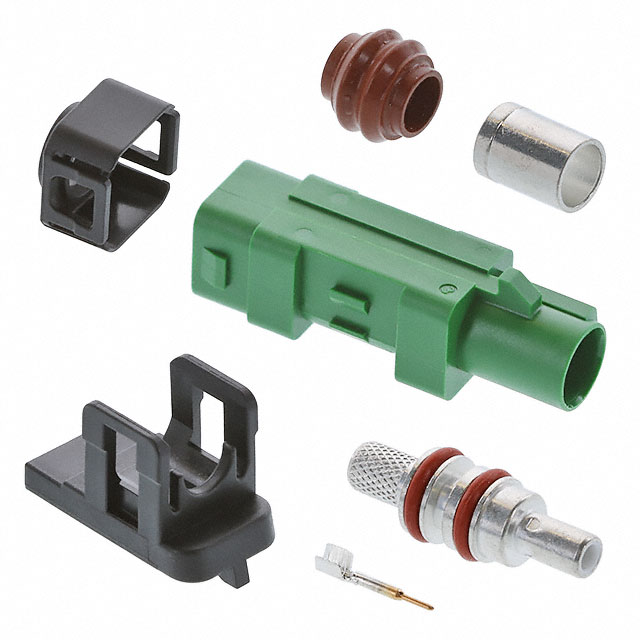

Molex 0734031054	Green	Code E	-40 °C	85 °C	Locking Ramp	Jack Male Pin	Phosphor Bronze	Free Hanging (In-Line)	335 V	50 Ohms	Crimp	Fakra SMB	Brass	RG-58	Crimp	50	1	Gold	Nickel	1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Seal 1 Shroud		6000 MHz	IP69K - Dust Tight High Temp Water Jets Waterproof
