KUP Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

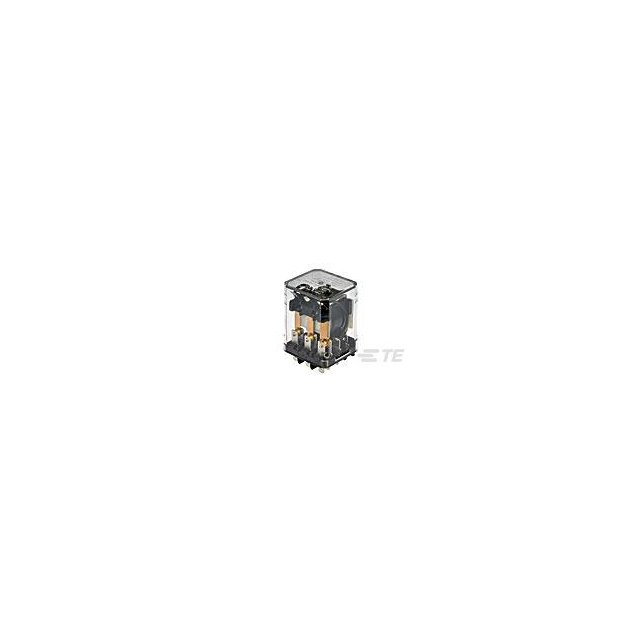

GENERAL PURPOSE RELAYS KUP-5AT5-24=KU
| Part | Coil Voltage | Contact Material | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Release Time | Switching Voltage [Max] | Contact Form | Approval Agency | Termination Style | Must Operate Voltage | Mounting Type | Contact Rating (Current) | Relay Type | Coil Insulation | Operate Time | Load - Max Switching | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | |||||||||||||||||||
 TE Connectivity AMP Connectors | 120 VAC | Silver (Ag) | 17.5 mA | -45 °C | 70 °C | Non Latching | 10 ms | 240 VAC | DPDT (2 Form C) | CSA UR | Quick Connect | 102 VAC | Chassis Mount | 5 A | General Purpose | Class B | 15 ms | ||
 TE Connectivity AMP Connectors | 24 VAC | Silver Cadmium Oxide (AgCdO) | 84 mA | -45 °C | 55 °C | Non Latching | 10 ms | 240 VAC | SPDT (1 Form C) | CSA UR | Quick Connect | Chassis Mount | 10 A | General Purpose | Class B | 15 ms | 2400 VA | ||
 TE Connectivity AMP Connectors | 24 VDC | Silver Cadmium Oxide (AgCdO) | 0.075 A | -45 °C | 50 °C | Non Latching | 10 ms | 240 VAC | 4PDT (4 Form C) | CSA UR | 18 VDC | Socketable | 10 A | General Purpose | Class B | 15 ms | 2400 VA | 320 Ohms | |
 TE Connectivity AMP Connectors | 24 VAC | Silver Cadmium Oxide (AgCdO) | 84 mA | -45 °C | 70 °C | Non Latching | 10 ms | 240 VAC | DPDT (2 Form C) | CSA UR | Quick Connect | Chassis Mount | 10 A | General Purpose | Class B | 15 ms | 85 Ohms |
