OC-19-201 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER PIEZO PNL MNT
| Part | Port Location | Termination | Mounting Type | Technology | Driver Circuitry | Approval Agency | Ingress Protection | Current - Supply [Max] | Current - Supply [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Voltage Range [Max] | Voltage Range [Min] | Sound Pressure Level (SPL) | Operating Mode | Frequency | Input Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

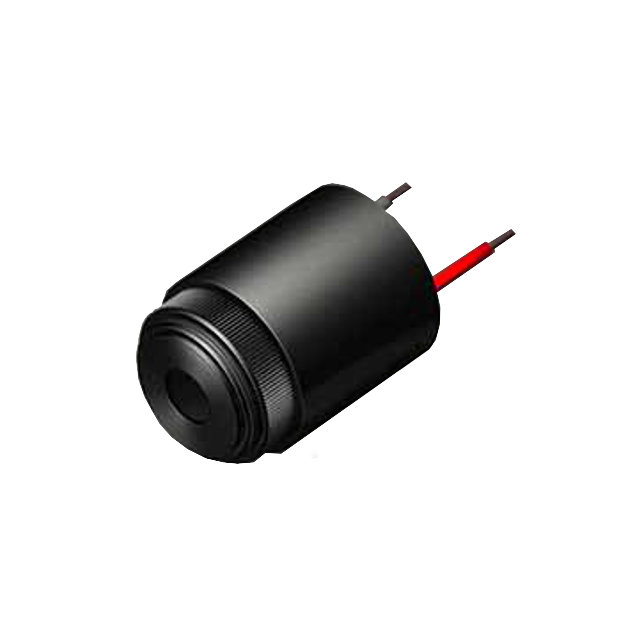

 Floyd Bell Inc | Top | Wire Leads | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | ||||||||||||||

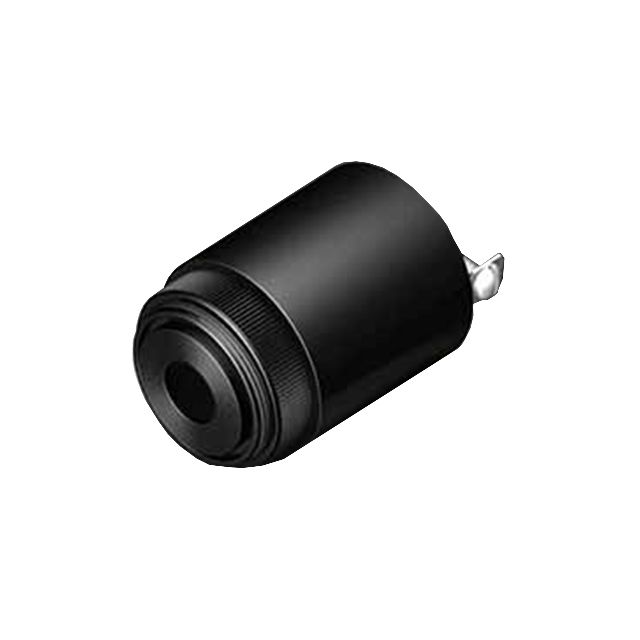

 Floyd Bell Inc | Top | Screw Terminal Quick Connect Tab | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | 60 mA | 20 mA | 46.74 mm | 1.84 in | 120 V | 40 V | 97 dB | Single Tone | 2.9 kHz | AC | 1.41 in | 35.81 mm | 0.25 " | 6.35 mm |

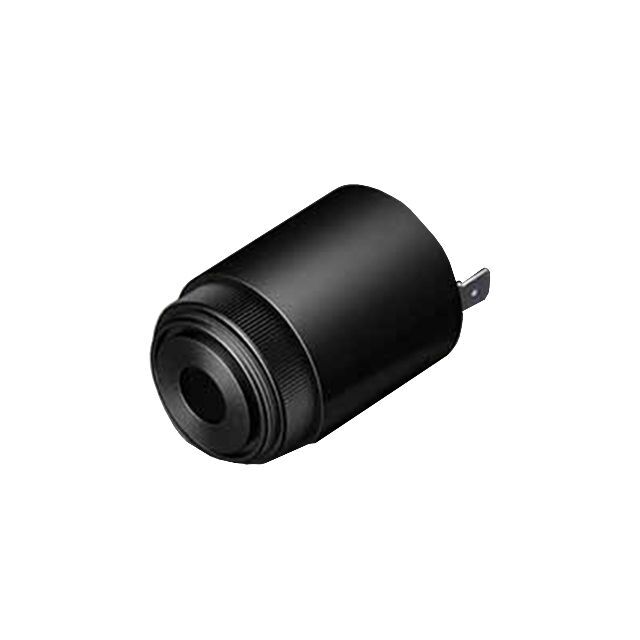

 Floyd Bell Inc | Top | Quick Connect Tab | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | 60 mA | 20 mA | 46.74 mm | 1.84 in | 120 V | 40 V | 97 dB | Single Tone | 2.9 kHz | AC | 1.41 in | 35.81 mm | 0.25 " | 6.35 mm |
 Floyd Bell Inc | Top | Screw Terminal Quick Connect Tab | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | 60 mA | 20 mA | 46.74 mm | 1.84 in | 120 V | 40 V | 97 dB | Single Tone | 2.9 kHz | AC | 1.41 in | 35.81 mm | 0.25 " | 6.35 mm |
Floyd Bell Inc | Top | Screw Terminal Quick Connect Tab | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | 60 mA | 20 mA | 46.74 mm | 1.84 in | 120 V | 40 V | 97 dB | Single Tone | 2.9 kHz | AC | 1.41 in | 35.81 mm | 0.25 " | 6.35 mm |
 Floyd Bell Inc | Top | Wire Leads | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | ||||||||||||||
Floyd Bell Inc | Top | Quick Connect Tab | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | 60 mA | 20 mA | 46.74 mm | 1.84 in | 120 V | 40 V | 97 dB | Single Tone | 2.9 kHz | AC | 1.41 in | 35.81 mm | 0.25 " | 6.35 mm |
Floyd Bell Inc | Top | Quick Connect Tab | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | 60 mA | 20 mA | 46.74 mm | 1.84 in | 120 V | 40 V | 97 dB | Medium Pulse Single Tone | 2.9 kHz | AC | 1.41 in | 35.81 mm | 0.25 " | 6.35 mm |
Floyd Bell Inc | Top | Wire Leads | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof | ||||||||||||||
Floyd Bell Inc | Top | Wire Leads | Panel Mount | Piezo | Indicator Internally Driven | UL UR | IP68 - Dust Tight Waterproof |
