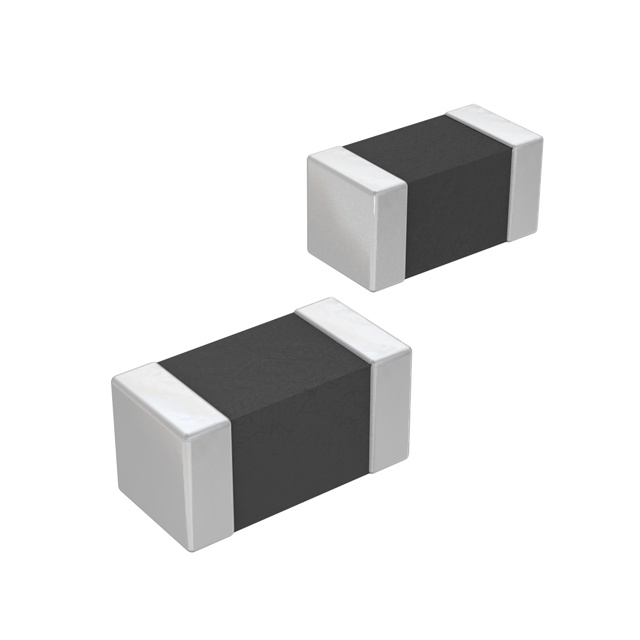

CM100505 Series

Catalog

FIXED IND 47NH 140MA 2.1 OHM SMD

Part	Inductance Frequency - Test	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Material - Core	Type	Tolerance	Package / Case	Mounting Type	Supplier Device Package	Shielding	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. CM100505-47NJL	100 MHz	140 mA	0.6 mm	0.024 in	1.8 GHz	47 nH	-40 C	100 °C	8	100 MHz	Alumina	Drum Core Wirewound	5 %	0402 (1005 Metric)	Surface Mount	0402 (1005 Metric)	Unshielded	0.02 in	0.5 mm	0.039 "	1 mm	2.1 Ohm
Bourns Inc. CM100505-10NJL	100 MHz	320 mA	0.6 mm	0.024 in	2.8 GHz	10 nH	-40 C	100 °C	8	100 MHz	Alumina	Drum Core Wirewound	5 %	0402 (1005 Metric)	Surface Mount	0402 (1005 Metric)	Unshielded	0.02 in	0.5 mm	0.039 "	1 mm	410 mOhm
Bourns Inc. CM100505-2N7DL	100 MHz	400 mA	0.6 mm	0.024 in	5.5 GHz	2.7 nH	-40 C	100 °C	8	100 MHz	Alumina	Drum Core Wirewound	0.3 nH	0402 (1005 Metric)	Surface Mount	0402 (1005 Metric)	Unshielded	0.02 in	0.5 mm	0.039 "	1 mm		100 mOhm
Bourns Inc. CM100505-33NJL	100 MHz	0.17 A	0.6 mm	0.024 in	1.8 GHz	33 nH	-40 C	100 °C	8	100 MHz	Alumina	Drum Core Wirewound	5 %	0402 (1005 Metric)	Surface Mount	0402 (1005 Metric)	Unshielded	0.02 in	0.5 mm	0.039 "	1 mm	1.4 Ohm
Bourns Inc. CM100505-15NJL	100 MHz	0.24 A	0.6 mm	0.024 in	2.5 GHz	15 nH	-40 C	100 °C	8	100 MHz	Alumina	Drum Core Wirewound	5 %	0402 (1005 Metric)	Surface Mount	0402 (1005 Metric)	Unshielded	0.02 in	0.5 mm	0.039 "	1 mm
Bourns Inc. CM100505-27NJL	100 MHz	0.2 A	0.6 mm	0.024 in	1.8 GHz	27 nH	-40 C	100 °C	8	100 MHz	Alumina	Drum Core Wirewound	5 %	0402 (1005 Metric)	Surface Mount	0402 (1005 Metric)	Unshielded	0.02 in	0.5 mm	0.039 "	1 mm	1.2 Ohm
Bourns Inc. CM100505-68NJL	100 MHz	120 mA	0.6 mm	0.024 in	1.5 GHz	68 nH	-40 C	100 °C	8	100 MHz	Alumina	Drum Core Wirewound	5 %	0402 (1005 Metric)	Surface Mount	0402 (1005 Metric)	Unshielded	0.02 in	0.5 mm	0.039 "	1 mm	4 Ohm
