TPS7A26125 Series

500-mA, 18-V, ultra-low-IQ, high-accuracy, adjustable low-dropout voltage regulator with power good

Catalog

500-mA, 18-V, ultra-low-IQ, high-accuracy, adjustable low-dropout voltage regulator with power good

Part	Regulator Type	Channels per IC	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Voltage - Output	Utilized IC / Part	Current - Output	Supplied Contents	Current - Quiescent (Iq)	Control Features	Mounting Type	Voltage Dropout (Max) [Max]	Output Configuration	Number of Regulators	PSRR [Min]	PSRR [Max]	Protection Features	Voltage - Output (Min/Fixed)	Supplier Device Package	Output Type	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type

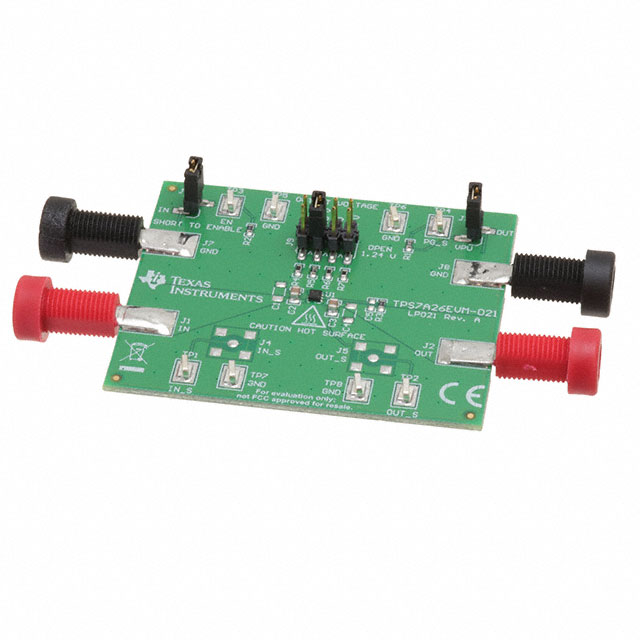

Texas Instruments TPS7A26EVM-021	Positive Adjustable	1 - Single	18 V	2.4 V	Fully Populated	1.8 V 3.3 V 5 V 12 V	TPS7A26	500 mA	Board(s)
Texas Instruments TPS7A2633DRVR								500 mA		4.5 µA	Enable Power Good	Surface Mount	0.33 V	Positive	1	75 dB	52 dB	Over Current Over Temperature UVLO	3.3 V	6-WSON (2x2)	1.81 mOhm	18 V	-40 °C	125 ¯C
Texas Instruments TPS7A26125DRVR								500 mA		4.5 µA	Enable Power Good	Surface Mount	0.33 V	Positive	1	75 dB	52 dB	Over Current Over Temperature UVLO	1.25 V	6-WSON (2x2)	1.81 mOhm	18 V	-40 °C	125 ¯C
Texas Instruments TPS7A2601DRVT								500 mA		4.5 µA	Enable Power Good	Surface Mount	0.355 V	Positive	1	75 dB	52 dB	Over Current Over Temperature UVLO	1.24 V	6-WSON (2x2)		18 V	-40 °C	125 ¯C	Adjustable

Catalog

500-mA, 18-V, ultra-low-IQ, high-accuracy, adjustable low-dropout voltage regulator with power good

Key Features

• Ultra-low IQ: 2.0 µAInput voltage: 2.4 V to 18 VOutput voltage options available:Fixed: 1.25 V to 5.5 VAdjustable: 1.24 V to 17.4 V1% accuracy over temperatureLow dropout: 590 mV (max) at 500 mAOpen-drain, power-good outputActive overshoot pulldown protectionThermal shutdown and overcurrent protectionOperating junction temperature: –40°C to +125°CStable with 1-µF output capacitorsPackage: 6-pin WSONUltra-low IQ: 2.0 µAInput voltage: 2.4 V to 18 VOutput voltage options available:Fixed: 1.25 V to 5.5 VAdjustable: 1.24 V to 17.4 V1% accuracy over temperatureLow dropout: 590 mV (max) at 500 mAOpen-drain, power-good outputActive overshoot pulldown protectionThermal shutdown and overcurrent protectionOperating junction temperature: –40°C to +125°CStable with 1-µF output capacitorsPackage: 6-pin WSON
