FAG.2B Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG MALE 12P GOLD SLDR CUP
| Part | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Material | Insert Material | Primary Material | Contact Finish - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Color | Shell Material | Material Flammability Rating | Connector Type | Mounting Feature | Number of Positions | Orientation [custom] | Mounting Type | Ingress Protection | Fastening Type | Shielding | Shell Size - Insert | Shell Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

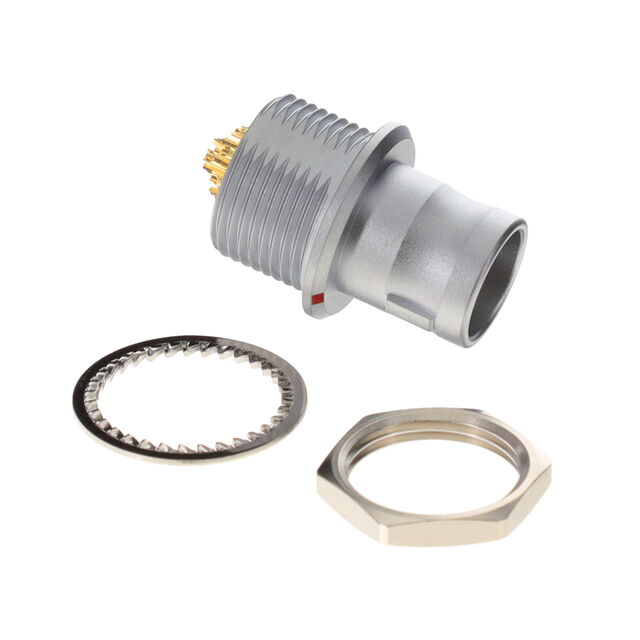

 LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 7 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 12 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 312 | Chrome | |
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 15 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 4 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 304 | Chrome | |
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 6.5 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 14 | G | Panel Mount Through Hole | IP50 - Dust Protected | Push-Pull | Shielded | 314 | Chrome | Solder |
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 5 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 19 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 319 | Chrome | |
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 1.5 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 332 | Chrome | ||
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 8 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 10 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 310 | Chrome | |

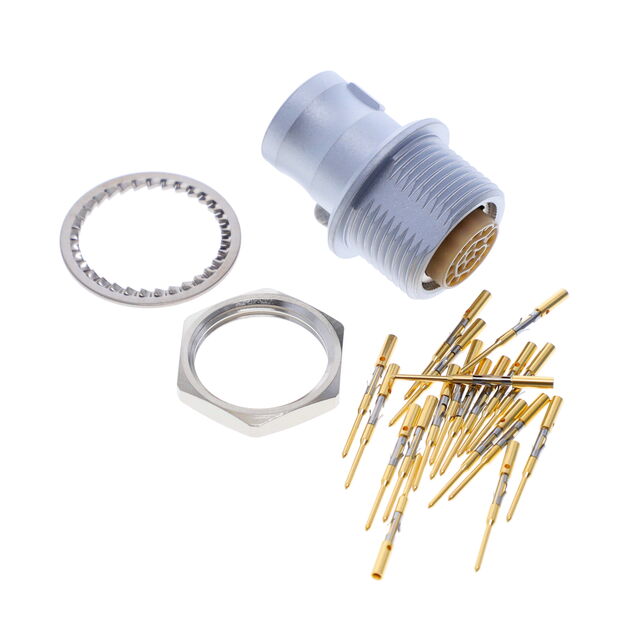

 LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 5 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 19 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 319 | Chrome | Crimp |
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 2 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 26 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 326 | Chrome | |
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 25 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 2 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 302 | Chrome | |
LEMO | 39.4 µin | 1 µm | Brass | Polyetheretherketone (PEEK) | Metal | Gold | 7 A | -55 C | 250 °C | Silver | Brass | UL94 V-0 | Plug Male Pins | Bulkhead - Rear Side Nut | 5 | G | Panel Mount | IP50 - Dust Protected | Push-Pull | Shielded | 804 | Chrome |
