M40-120 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN RCPT HSG 40POS 1.00MM
| Part | Note | Color | Contact Type | Mounting Type | Fastening Type | Contact Termination | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Pitch | Pitch | Insulation Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Contacts Not Included | White | Female Socket | Free Hanging (In-Line) | Push-Pull | Crimp | 2 | 85 °C | -25 °C | 40 | 1 mm | 0.039 in | Nylon 6/6 Polyamide (PA66) | Receptacle |
Harwin Inc. | Contacts Not Included | White | Female Socket | Free Hanging (In-Line) | Push-Pull | Crimp | 2 | 85 °C | -25 °C | 10 | 1 mm | 0.039 in | Nylon 6/6 Polyamide (PA66) | Receptacle |

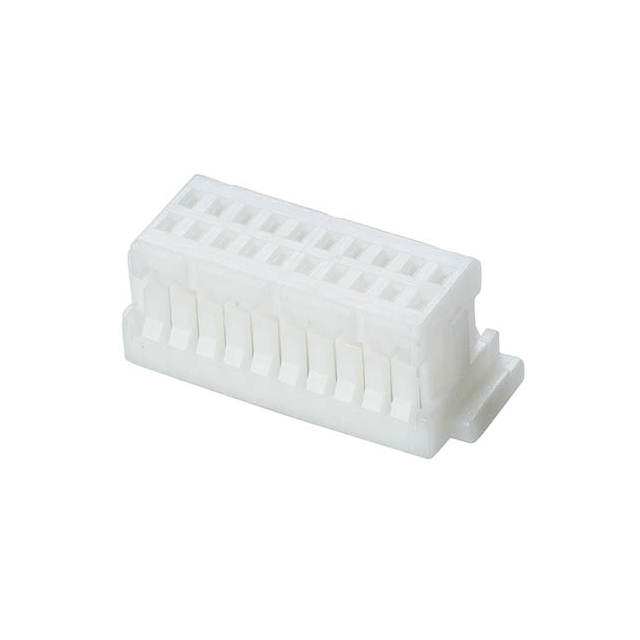

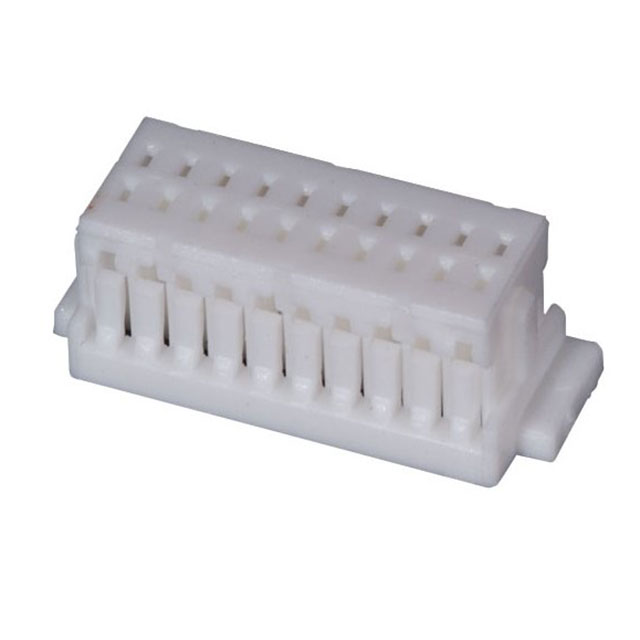

 Harwin Inc. | Contacts Not Included | White | Female Socket | Free Hanging (In-Line) | Push-Pull | Crimp | 2 | 85 °C | -25 °C | 20 | 1 mm | 0.039 in | Nylon 6/6 Polyamide (PA66) | Receptacle |
Harwin Inc. | Contacts Not Included | White | Female Socket | Free Hanging (In-Line) | Push-Pull | Crimp | 2 | 85 °C | -25 °C | 30 | 1 mm | 0.039 in | Nylon 6/6 Polyamide (PA66) | Receptacle |
