046015 Series

Manufacturer: Molex

Catalog

MF+ HCS VERT HDR DR 20CKT V-0 GO

Part	Insulation Color	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Fastening Type	Contact Finish - Mating	Contact Shape	Termination	Voltage Rating	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Type	Number of Positions Loaded	Material Flammability Rating	Contact Length - Post	Contact Length - Post
Molex 0460152012	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin	3.56 mm	0.14 in	Varies by Wire Gauge	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	125 °C	-40 °C	20	Copper Alloy	Locking Ramp	Gold	Square	Solder	600 VAC	Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	3 µin	0.076 µm	0.5 in	12.7 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0

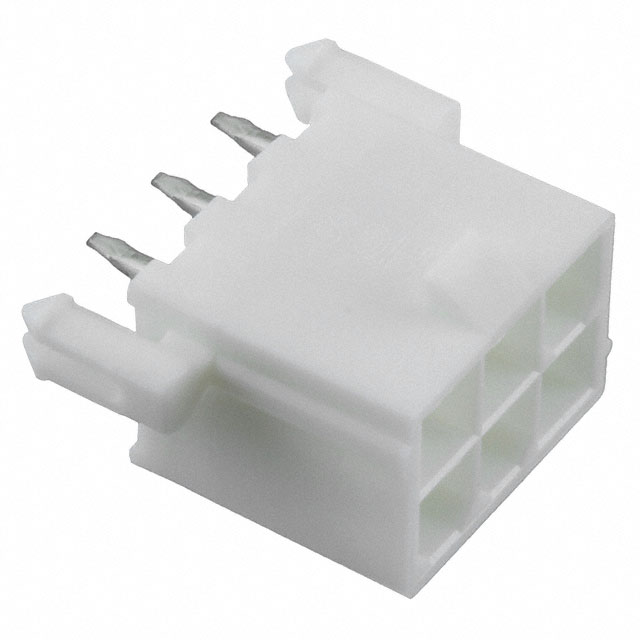

Molex 0460150602	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	6	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0	3.5 mm	0.138 in

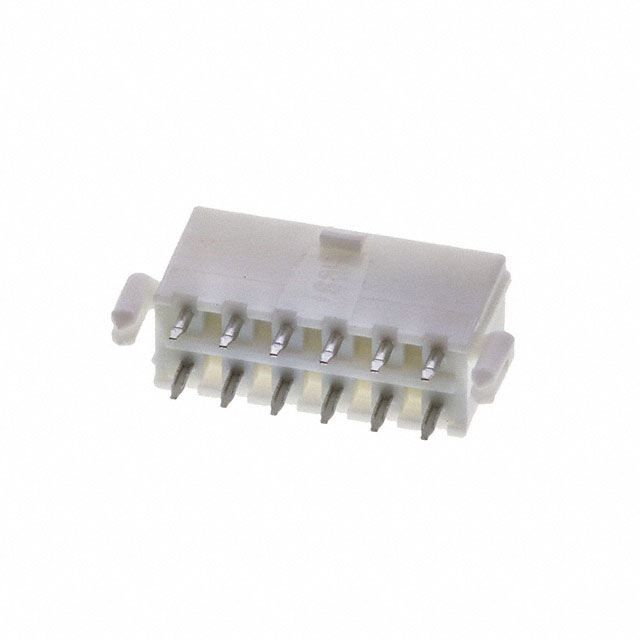

Molex 0460151207	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	12	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-2	3.5 mm	0.138 in
Molex 0460151802	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	18	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0	3.5 mm	0.138 in

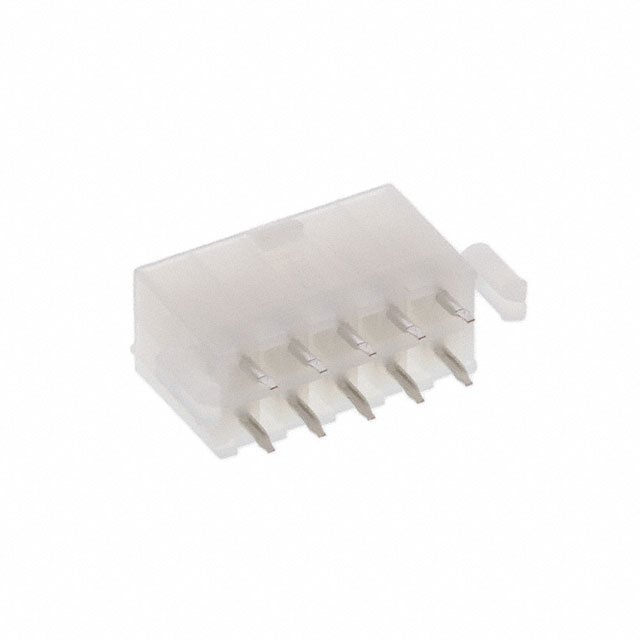

Molex 0460151007	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	10	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-2	3.5 mm	0.138 in

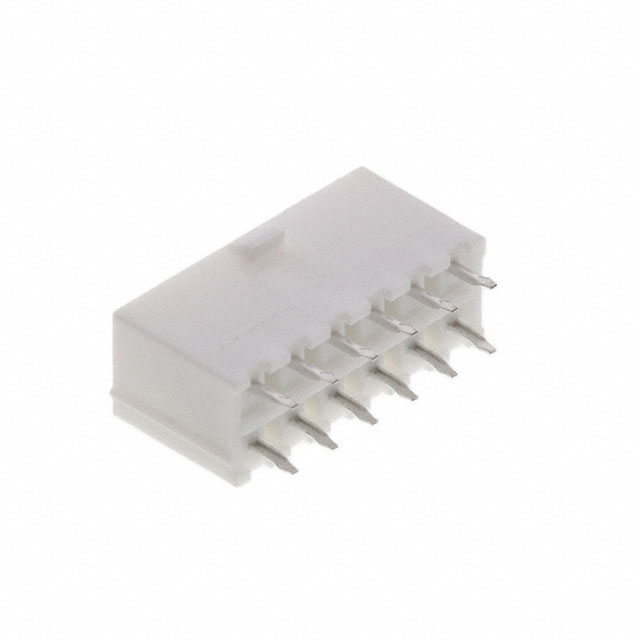

Molex 0460151202	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	12	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0	3.5 mm	0.138 in

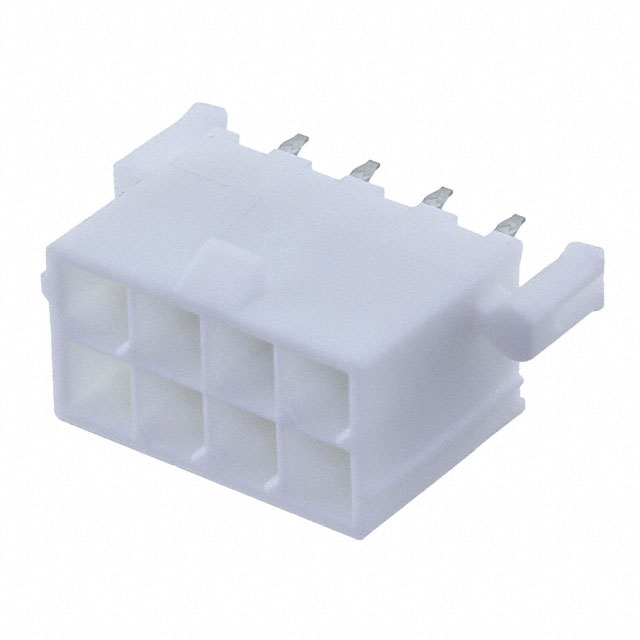

Molex 0460150803	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	8	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0	3.5 mm	0.138 in

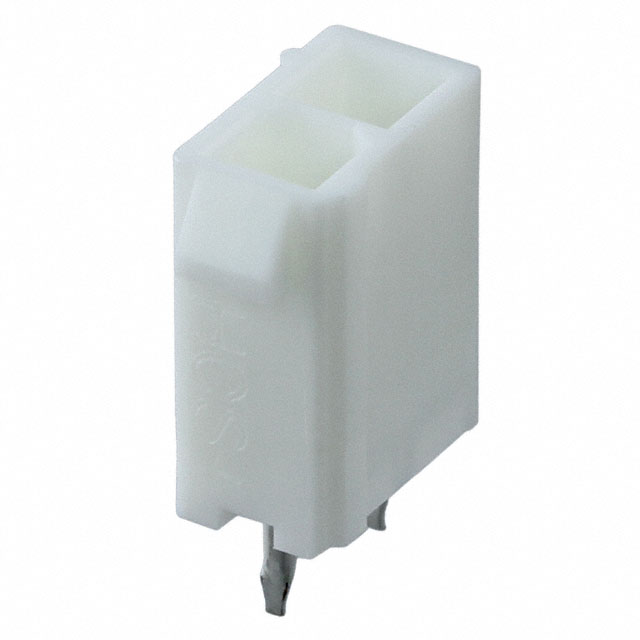

Molex 0460150202	Natural			Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	2	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0	3.5 mm	0.138 in
Molex 0460152003	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	20	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0	3.5 mm	0.138 in
Molex 0460151203	Natural	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	Tin				Automotive General Purpose Industrial Medical Telecommunications	Through Hole	105 ░C	-40 °C	12	Copper Alloy	Locking Ramp		Square	Solder		Board to Cable/Wire	2.54 µm	100 µin	Shrouded - 4 Wall	100 çin	2.54 çm	0.504 in	12.8 mm	4.2 mm	0.165 in	2	Male Pin	All	UL94 V-0	3.5 mm	0.138 in
