SML-LXR0401 Series

Catalog

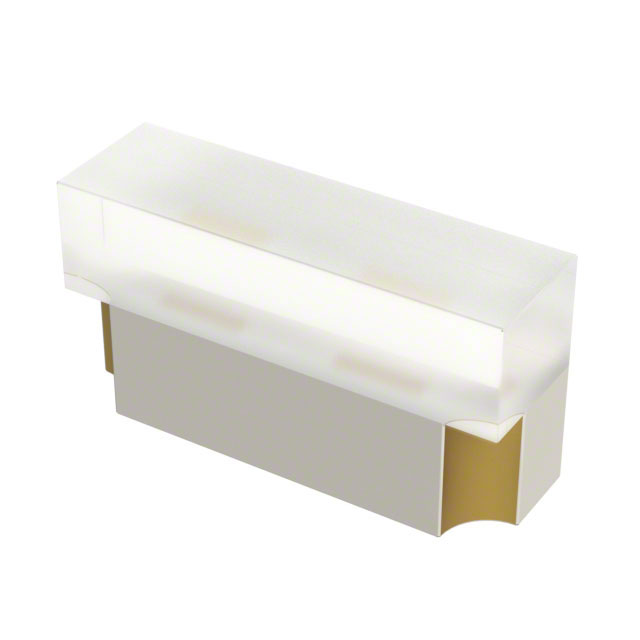

LED BLUE DIFFUSED SMD

Part	Height (Max) [z]	Lens Style	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Color	Wavelength - Peak	Configuration	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Transparency	Lens Size [y]	Lens Size [x]	Millicandela Rating	Package / Case	Viewing Angle	Supplier Device Package	Height (Max) [Max] [z]
Lumex Opto/Components Inc. SML-LXR0401USBW5MA	0.3 mm	Rectangle with Flat Top	5 mA	1 mm	0.55 mm	White	Blue	470 nm	Independent	2.8 V	Surface Mount	Diffused	0.3 mm	1 mm	28 mcd	0402 (1005 Metric)	145 °
Lumex Opto/Components Inc. SML-LXR0401UPGW5MA	0.3 mm	Rectangle with Flat Top	5 mA	1 mm	0.55 mm	White	Green	520 nm	Independent	2.8 V	Surface Mount	Diffused	0.3 mm	1 mm	71 mcd	0402 (1005 Metric)	145 °
Lumex Opto/Components Inc. SML-LXR0401UWC5MA		Rectangle with Flat Top	5 mA	1 mm	0.55 mm	Colorless	White			2.9 V	Right Angle Surface Mount	Clear	0.3 mm	1.2 mm	100 mcd	0402 (1005 Metric)	140 °	0402	0.43 mm
Lumex Opto/Components Inc. SML-LXR0401SIC5MA		Rectangle with Flat Top	5 mA	1 mm	0.55 mm	Colorless	Red	630 nm		2 V	Right Angle Surface Mount	Clear	0.3 mm	1.2 mm	28.5 mcd	0402 (1005 Metric)	145 °	0402	0.43 mm
