9430 Series
Manufacturer: Belden Inc.
Beta
⌘K

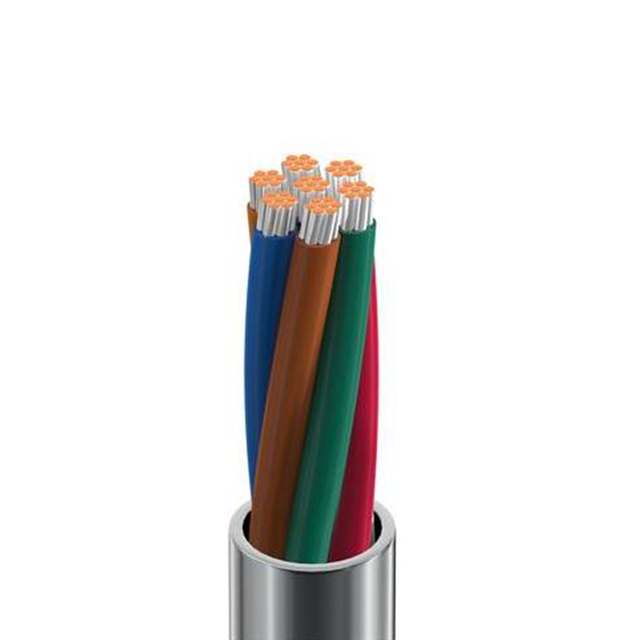

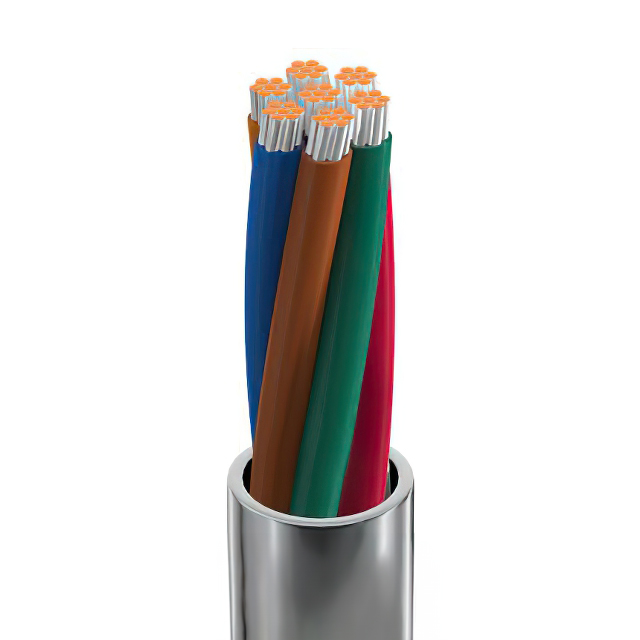

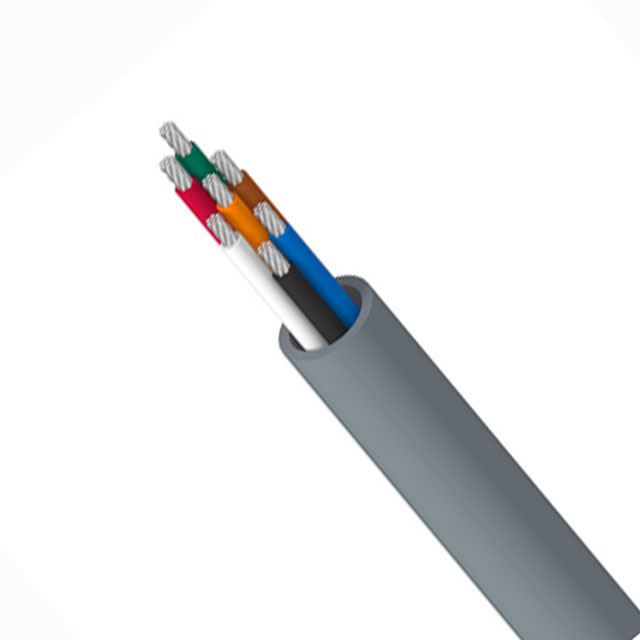

CABLE 7COND 22AWG CHROME
| Part | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Material | Cable Type | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Wire Gauge | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 7 | 0.813 mm | 0.032 in | Chrome | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Audio Control Instrumentation | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2576 | 30 AWG | 7 | 304.8 m | 1000 ft | 5.44 mm | 0.214 in | Copper Tinned |
 Belden Inc. | 7 | 0.813 mm | 0.032 in | Chrome | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Audio Control Instrumentation | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2576 | 30 AWG | 7 | 152.4 m | 500 ft | 5.44 mm | 0.214 in | Copper Tinned |
Belden Inc. | 7 | 0.813 mm | 0.032 in | Chrome | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Audio Control Instrumentation | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2576 | 30 AWG | 7 | 5.44 mm | 0.214 in | Copper Tinned | ||
 Belden Inc. | 7 | 0.813 mm | 0.032 in | Chrome | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Audio Control Instrumentation | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2576 | 30 AWG | 7 | 304.8 m | 1000 ft | 5.44 mm | 0.214 in | Copper Tinned |
 Belden Inc. | 7 | 0.813 mm | 0.032 in | Chrome | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Audio Control Instrumentation | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | UL Style 2576 | 30 AWG | 7 | 152.4 m | 500 ft | 5.44 mm | 0.214 in | Copper Tinned |
