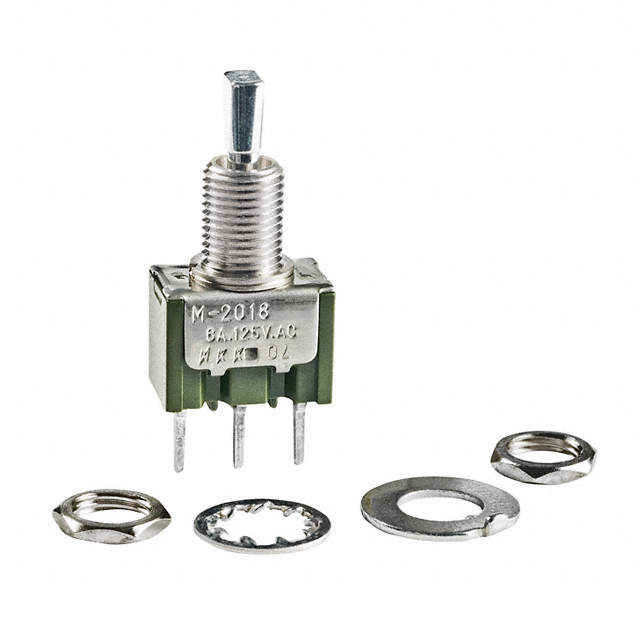

M2018E2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Mounting Type | Features | Switch Function | Actuator Length [x] | Bushing Thread | Circuit | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Illumination | Voltage Rating - AC | Voltage Rating - DC | Current Rating (Amps) | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | Epoxy Sealed Terminals | Mom-Off-Mom | 6.5 mm | 1/4-40 | SPDT | PC Pin | 85 °C | -30 ░C | Flatted | Non-Illuminated | 125 V | 30 V | 3 A 6 A | 6.5 mm |
 NKK Switches | 50000 Cycles | Brass Chrome Plated | Panel Mount | Epoxy Sealed Terminals | Mom-Off-Mom | 8.28 mm | 1/4-40 | SPDT | PC Pin | 85 °C | -30 ░C | Flatted | Non-Illuminated | 28 V | 28 V | 0.4 VA | 6.5 mm |
